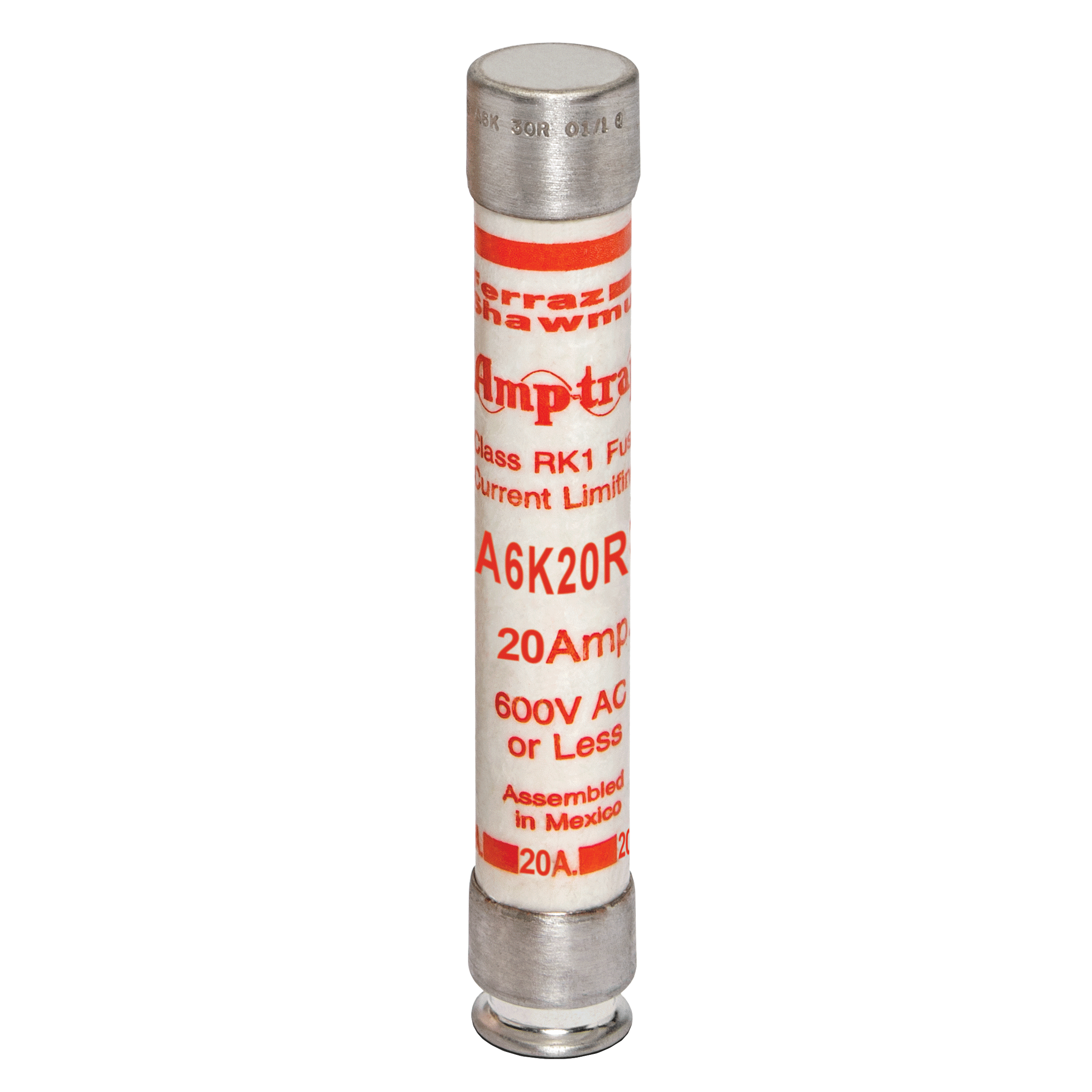

Product image for MERSEN A6K20R FUSE HRCI-R 20A 600V CLASS RK1 NON TIME DELAY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN A6K20R FUSE HRCI-R 20A 600V CLASS RK1 NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A6K20R | Electrozad South Part # 4779
$12.28 /ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Current-limiting Amp-Trap A6K-R fuses provide excellent protection where high available short-circuit currents exist. These fast-acting fuses are particularly good for branch/feeder circuits and back-up protection.

Technical Information

Amperage
20 A
Applications
For Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Non-Inductive Loads, Lighting Circuits
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class RK1
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
North American Power Fuses

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001915582
Class
RK-1
Construction
Fiberglass
GTIN
30782001915583
Product UPC
78200191558
Weight
0.136 lb

Dimensions

Diameter
0.81 in
Length
5 in
