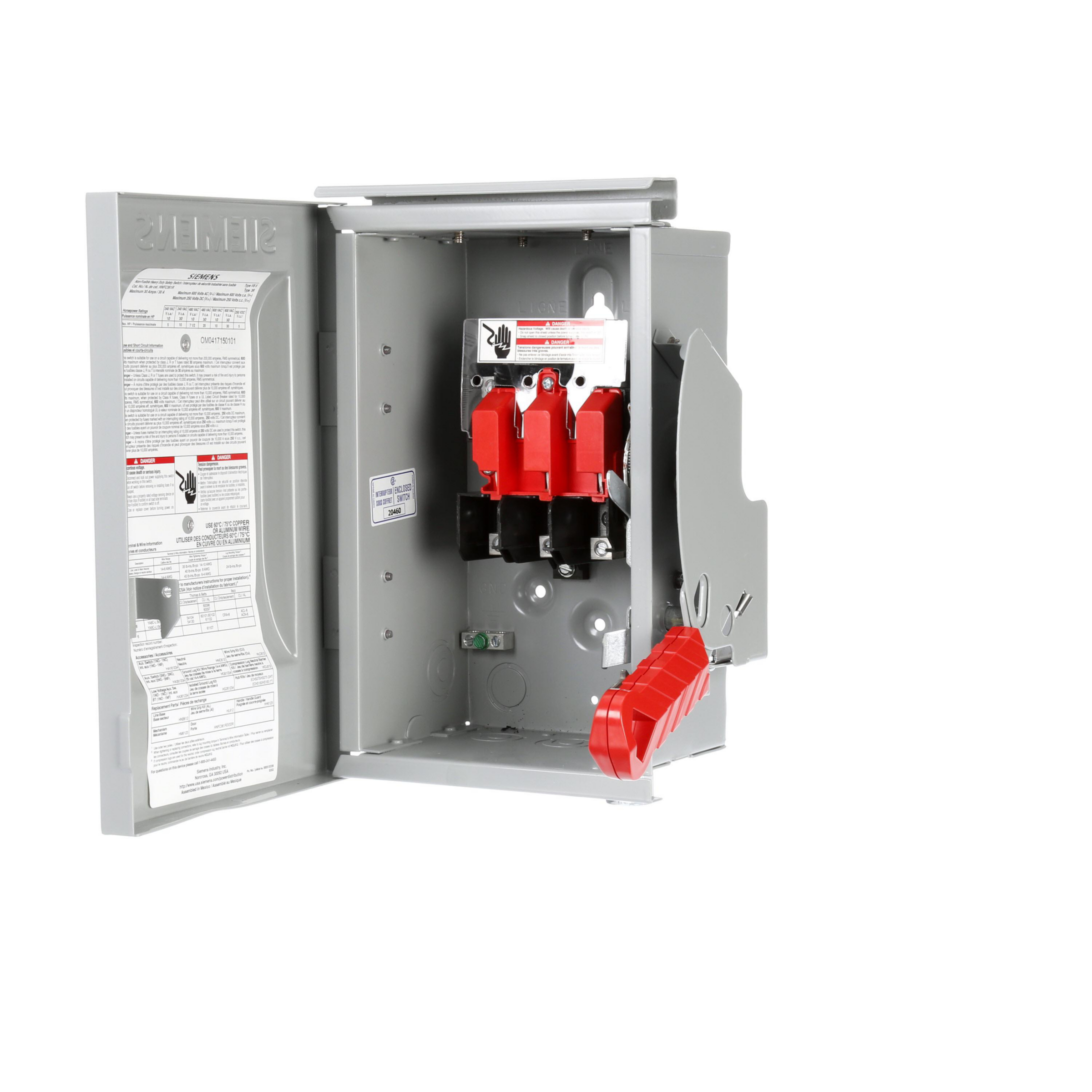

SIED HNFC361R DISCONNECT 30A 3POLE NF 600V NON FUSIBLE E3 SWITCH

Manufacturer: Siemens Distribution | Catalog # HNFC361R | Electrozad South Part # 48491
$298.45 /ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page
Safety switch are heavy duty models intented for use in industrial rugged area where reliable service and maintenance free are required with fault current higher than 10 KA. Available in versions 2 poles 2 fuses solid neutral 240vac, 3 poles 3 fuses 240600vac and 3 poles no fuses 600vac. Enclosures come in type 1 indoor use, type 12 industrial use, type 4X stainless steel corrosive area available with or without outlet receptacle.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
30 A
Applications
For Outdoor use
Connection Type
Screw
Enclosure
NEMA3R
Load Rating
3 W
Material
Steel
Mounting Type
2 or 3 Point Mounting Holes
Number of Poles
3
Number of Wires
3
Operating Cycles
10000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
Heavy Duty, Non-Fused, Toggle, Single Throw
Wattage
3 W

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643221444
GTIN
00783643221444
Housing Material
304 Stainless Steel
Product UPC
78364322144
Weight
12.000 lb

Dimensions

Height
8.910 in
Length
11.760 in
Width
7.880 in

Certifications & Compliance

Country of Origin
Mexico
