PANDUIT PLT3S-C PAN-TY 11.5"LONG NY T STANDARD LOCKING CABLE TIE .190"WIDE NYLON 50LBS-MLS | Electrozad South

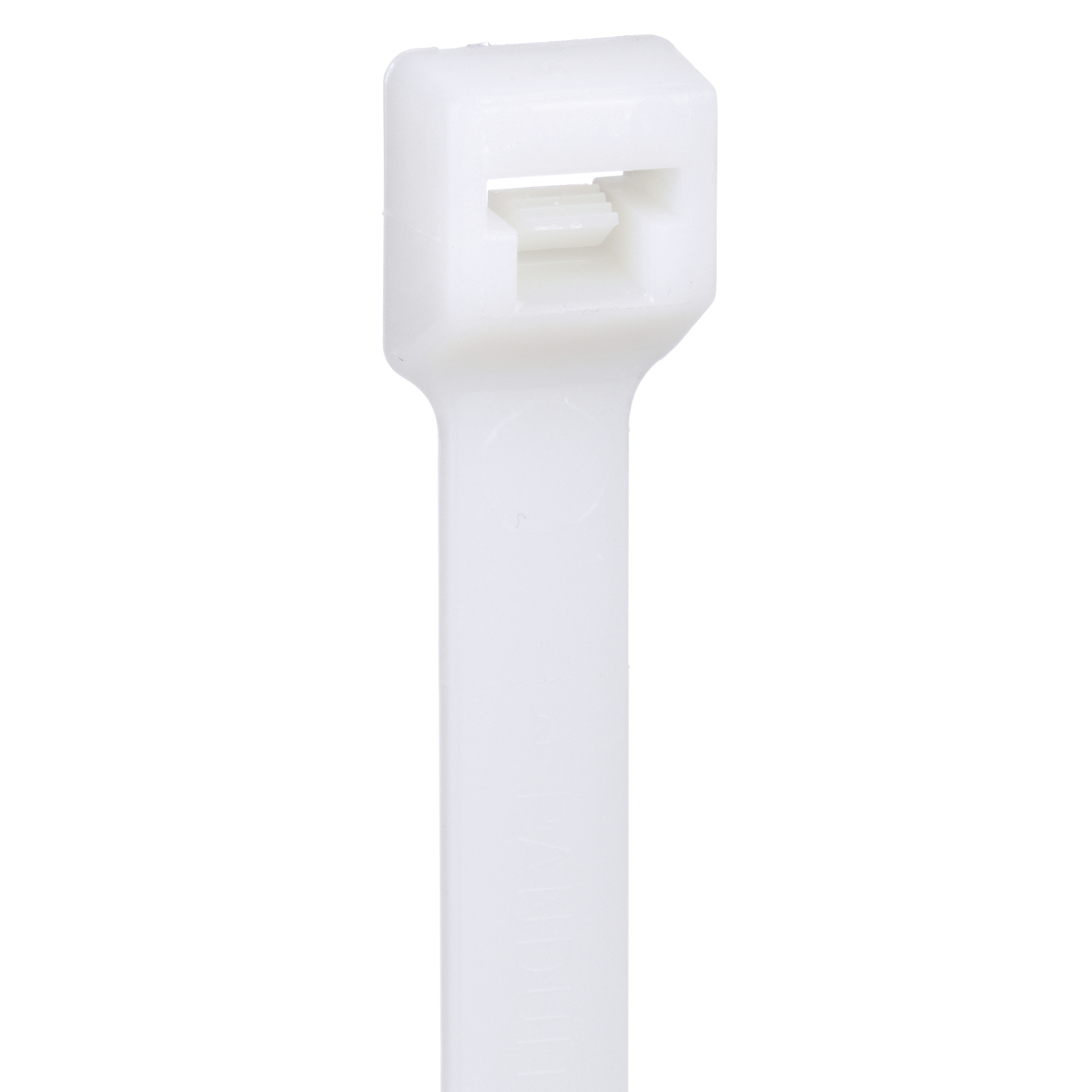

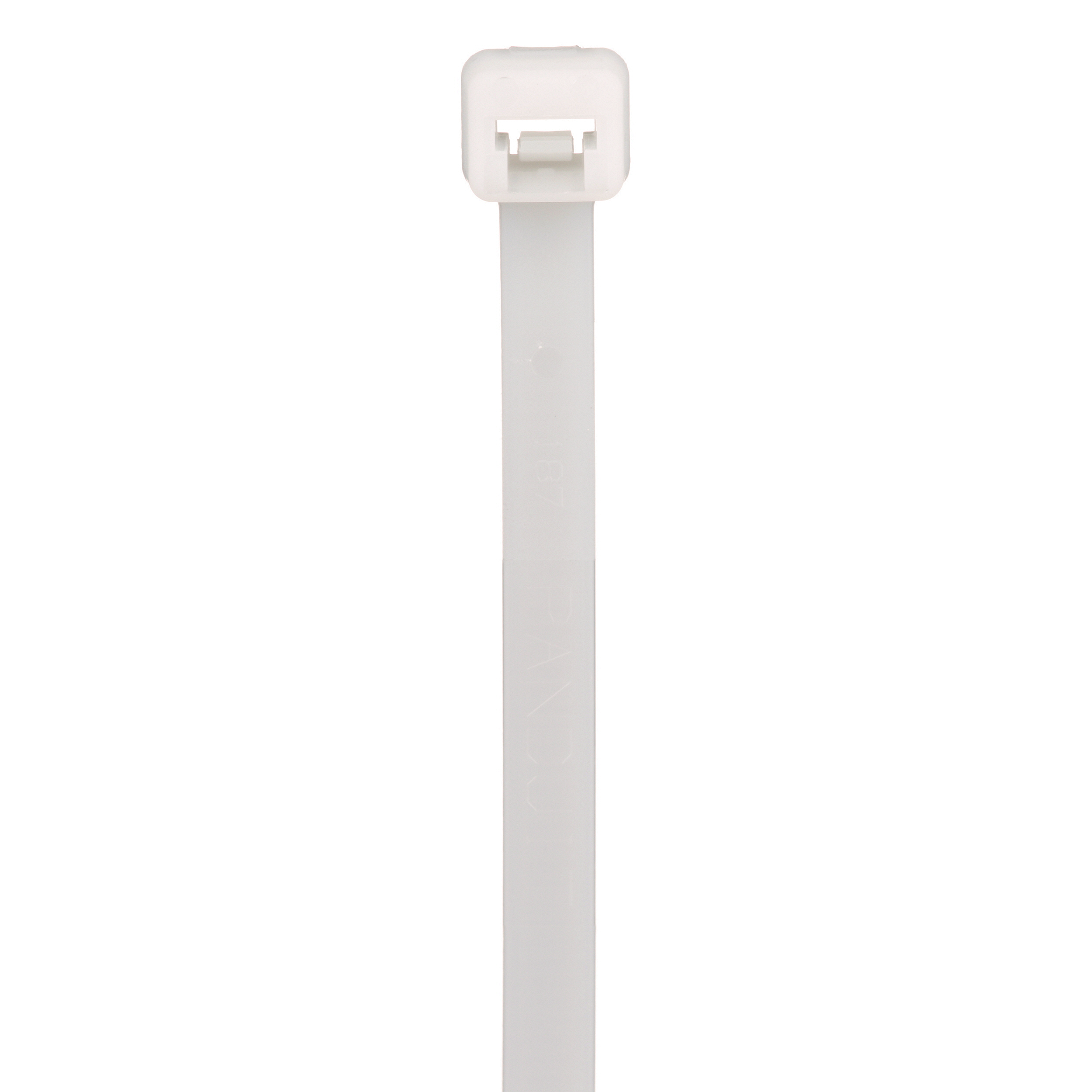

Product image for PANDUIT PLT3S-C PAN-TY 11.5"LONG NY T STANDARD LOCKING CABLE TIE .190"WIDE NYLON 50LBS-MLS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2

Email

PANDUIT PLT3S-C PAN-TY 11.5"LONG NY T STANDARD LOCKING CABLE TIE .190"WIDE NYLON 50LBS-MLS

Manufacturer: Panduit | Catalog # PLT3S-C | Electrozad South Part # 48855

$57.30 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Pan-Ty® Locking tie. Standard cross section. Nylon 6.6 material. Standard package. Minimum loop tensile strength 50 lb. Operating temperature -60 to -85..C. One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength. General application. For indoor use. Versatile cable ties can be used in countless applications. One-piece construction for consistent performance and reliability. Lowest threading force of any one-piece cable tie in the industry. Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation. A variety of materials and colours available for specific applications. UL Listed for use in plenum or air handling spaces per NEC except PLT.6SM and PLT5H/6H/8H/13H.

Technical Information

Applications
For General use
Body Thickness
0.052 in
Body Width
0.19 in
Bundle Diameter
76 mm
Material
Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 85 degrees C
Tensile Strength
222 N
Type
Locking

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983540662
Color
Natural
Environment
Indoor
GTIN
00074983540662
Product UPC
07498354066

Dimensions

Length
292 mm
Overall Length
292 mm
Thickness
1.3 mm
Width
4.8 mm

Certifications & Compliance

Country of Origin
CR,MY
