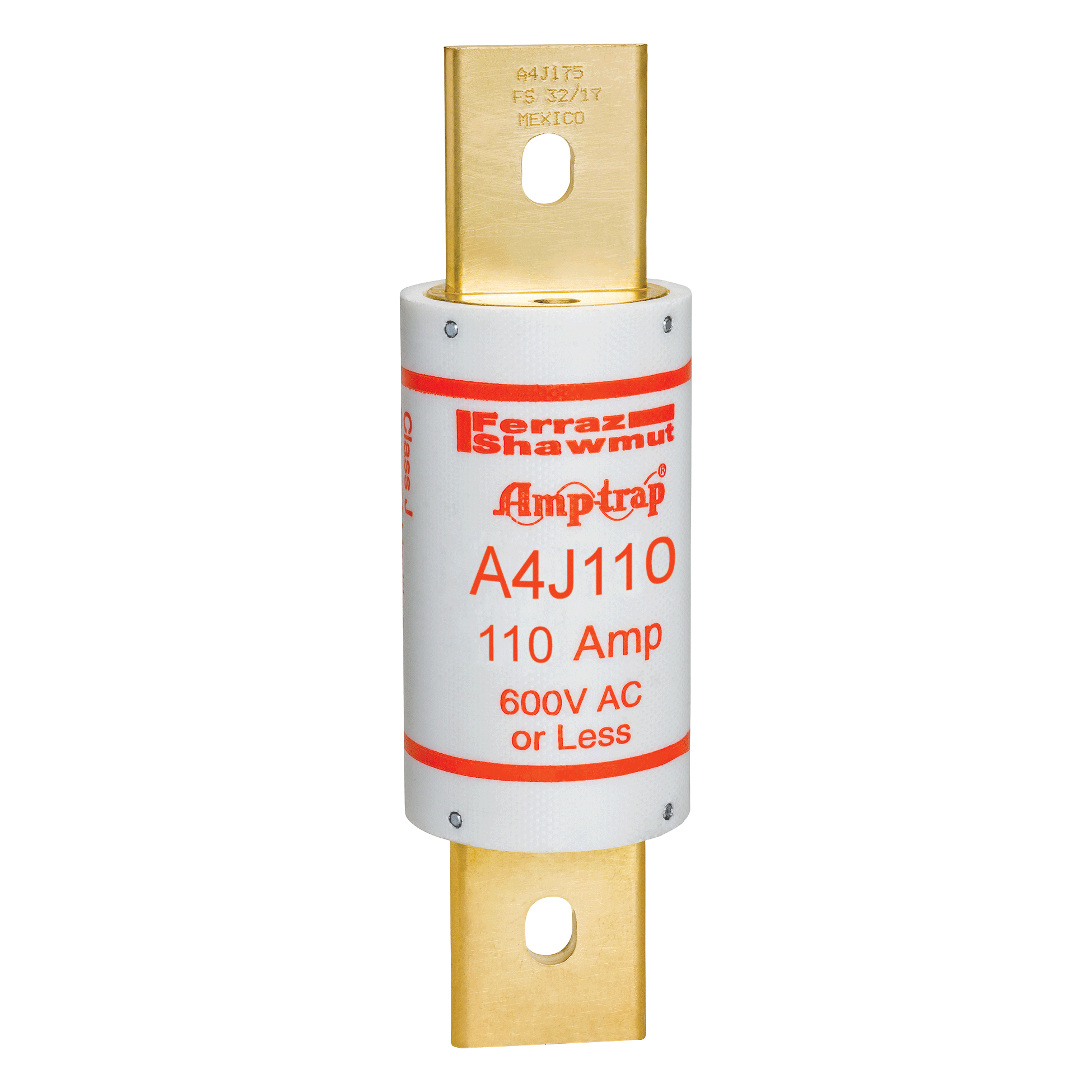

Fuse A4J - Class J - Fast-Acting 600VAC 300VDC 110A Blade Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A4J110 | Electrozad South Part # 49450
$47.01 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet H TECHNICAL DRAWING URL
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

Technical Information

Amperage
110 A
Applications
For Capacitors, Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Circuit Breakers, Lighting, Heating and General Loads
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class J
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Blade
Terminal Material
Brass Alloy
Terminal Type
Blade
Type
North American Power Fuses

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001960339
Class
J
Construction
Fiberglass
GTIN
10782001960336
Product UPC
78200196033
Weight
0.754 lb

Dimensions

Diameter
1.62 in
Length
5.75 in
