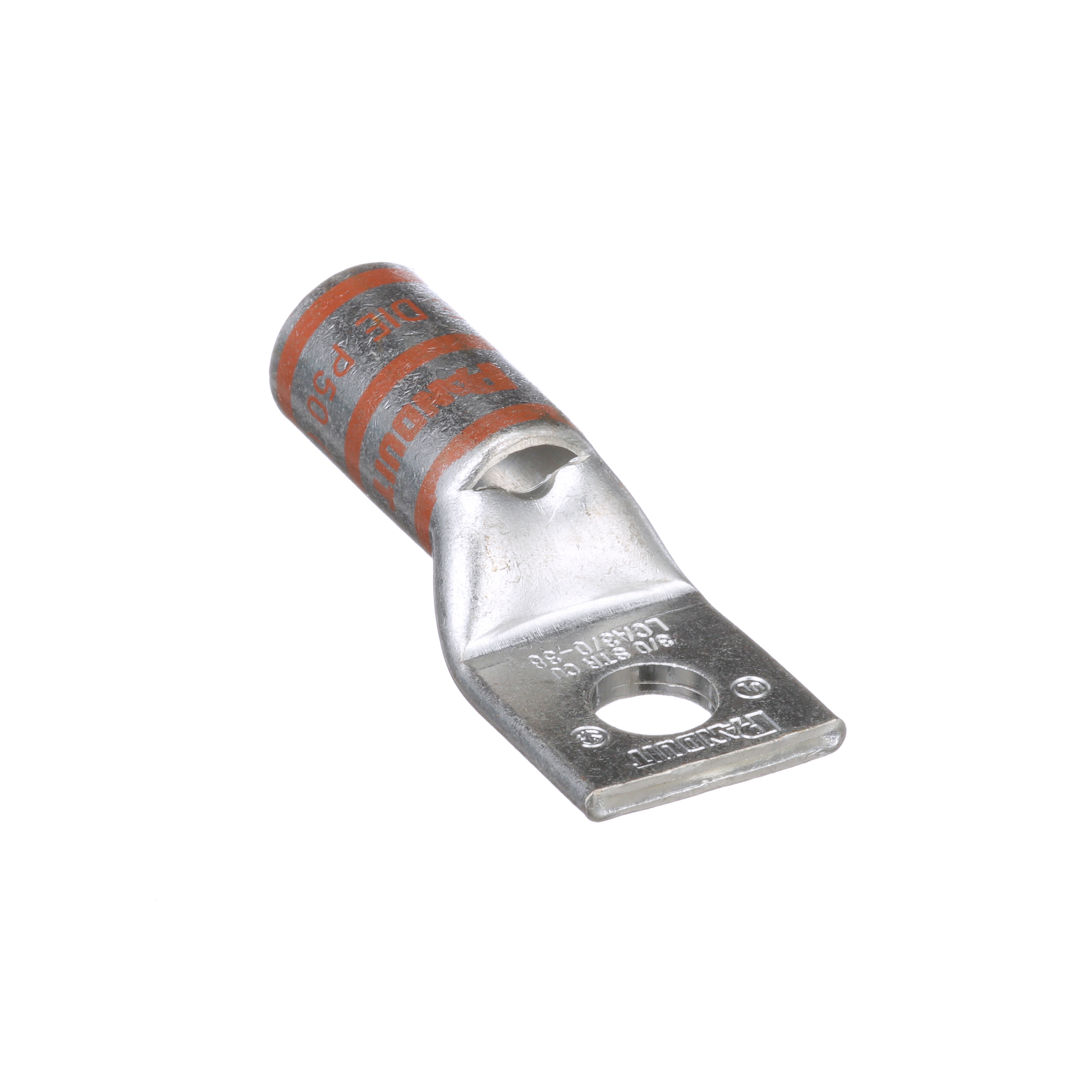

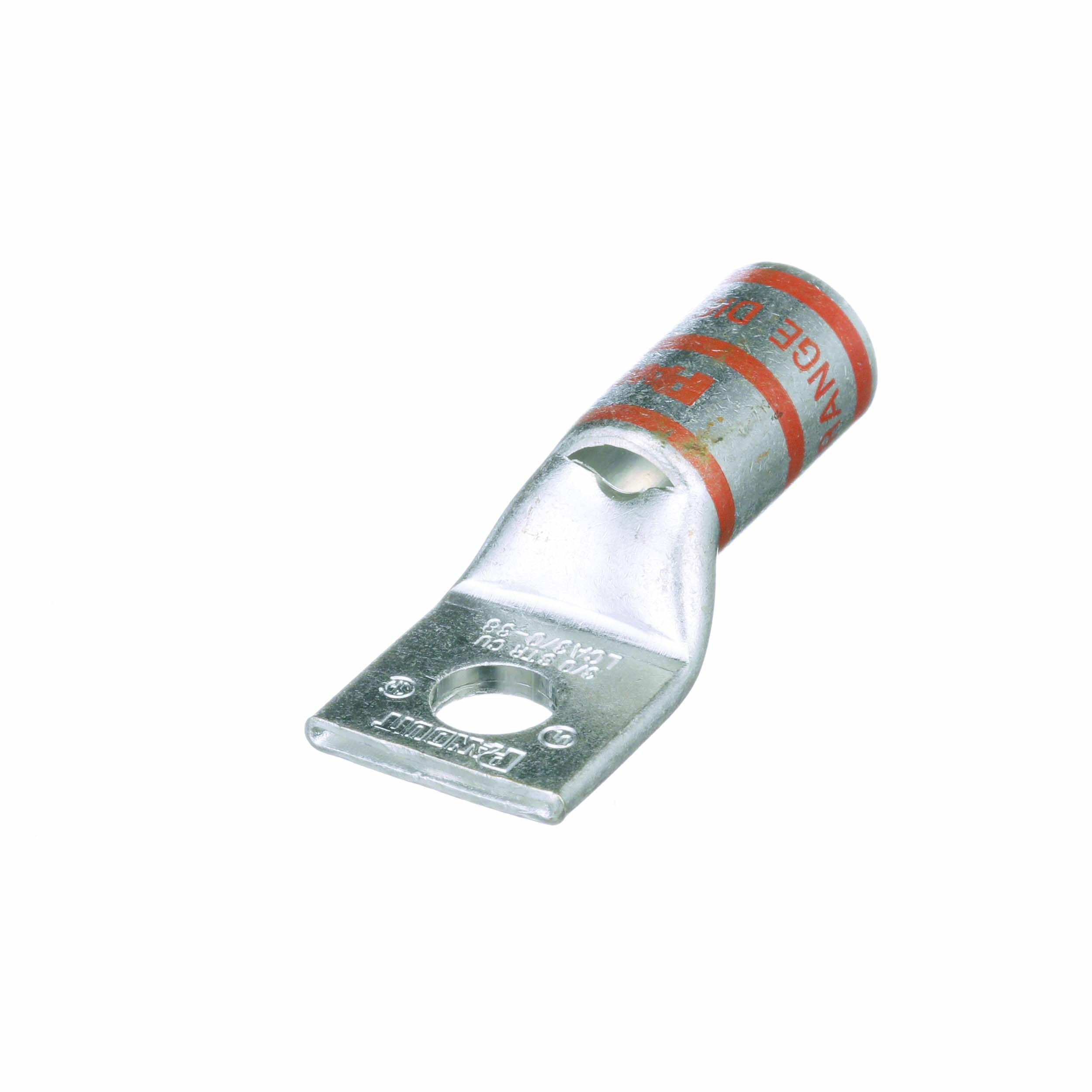

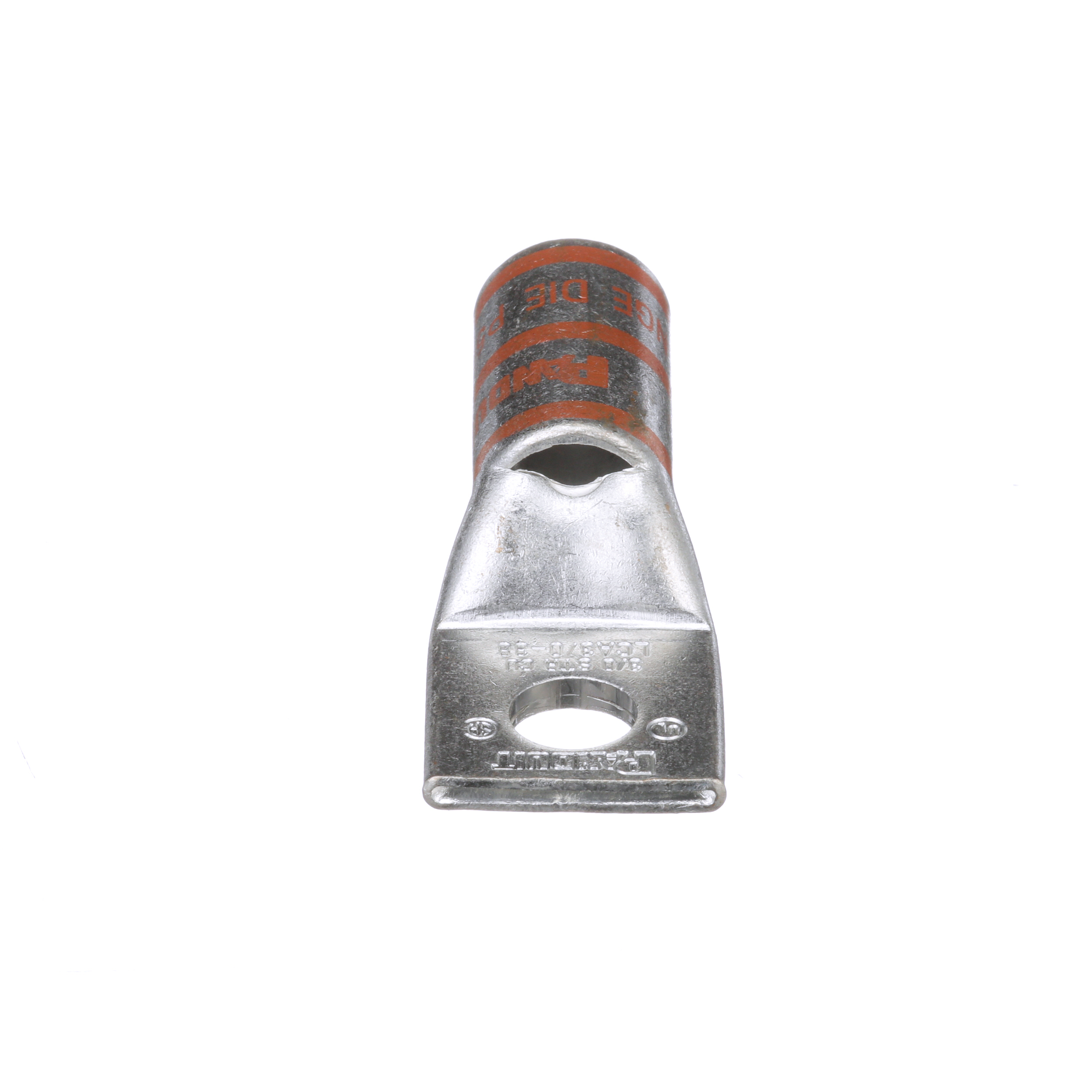

Product image for PANDUIT LCA3/0-38-X LUG 3/0 WIRE 3/8" 1HOLE COPPER COMPRESSION 3/8"STUD
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT LCA3/0-38-X LUG 3/0 WIRE 3/8" 1HOLE COPPER COMPRESSION 3/8"STUD

Manufacturer: Panduit | Catalog # LCA3/0-38-X | Electrozad South Part # 49463
$1,285.07 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
56 available

For Delivery

Not in local stock *
Check another branch
Installation / Instruction Manual
One-hole standard barrel with window lug. LCA type, straight tongue angle, 1/0 AWG code conductor size. 1.14 inch barrel length. Inspection window to visually assure full conductor insertion. Tin-plated to inhibit corrosion. Use up to 35 kV and 90° temperature rate. For use with stranded copper conductors.

Technical Information

Angle
Straight
Barrel Length
1.14 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Orange
Material
Copper
Number of Holes
1
Size
3/0 AWG Code
Stud Size
0.375 in
Tongue Thickness
0.13 in
Tongue Type
Standard
Tongue Width
0.96 in
Type
Type LCA

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900350
Color
Black,Orange,White
Finish
Tin Plated
GTiN
00074983900350
Product UPC
07498390035

Dimensions

Outer Diameter
0.64 in
Overall Length
2.34 in

Certifications & Compliance

Country of Origin
Mexico
