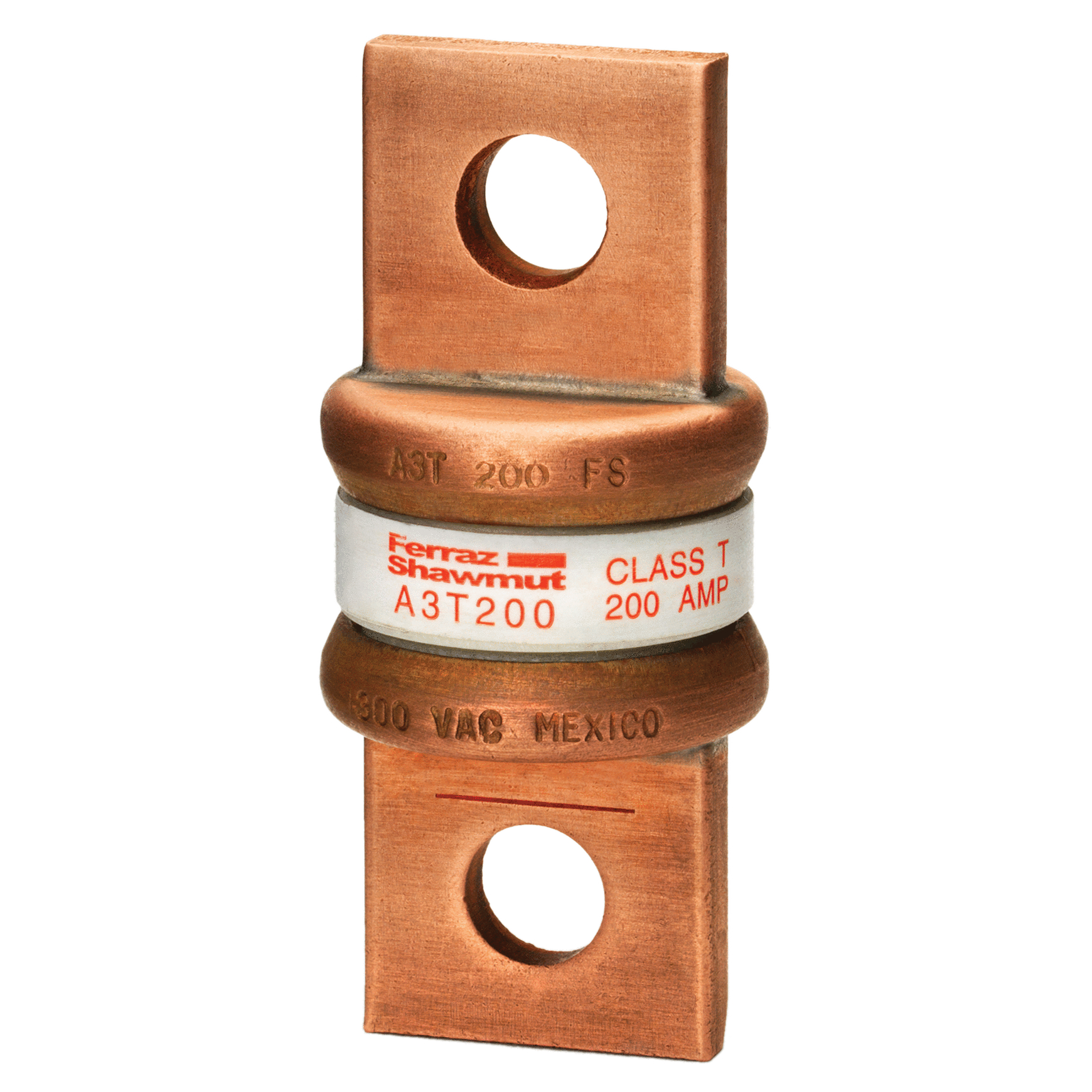

MERSEN A3T200 FUSE HRCI-T 200A 300V CLASS T FAST ACTING NON TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # A3T200 | Electrozad South Part # 49768
$85.89 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Technical Information

Amperage
200 A
Applications
For Load Centers, Panelboards, Switchboards, Circuit Breakers, Metering Centers
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class T
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Bolt-On
Rated Voltage AC
300 V
Rated Voltage DC
160 V
TC Connection
Blade
Terminal Material
Copper
Terminal Type
Blade
Type
North American Power Fuses

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001890230
Class
T
GTIN
10782001890237
Product UPC
78200189023
Weight
0.161 lb

Dimensions

Diameter
1.06 in
Length
2.44 in
