HUB CR20WHI RECEPTACLE 20A 125V SB 2P3W DUPLEX COMM GRADE WHITE TSLOT SMOOTH FACE 5-20R | Electrozad South

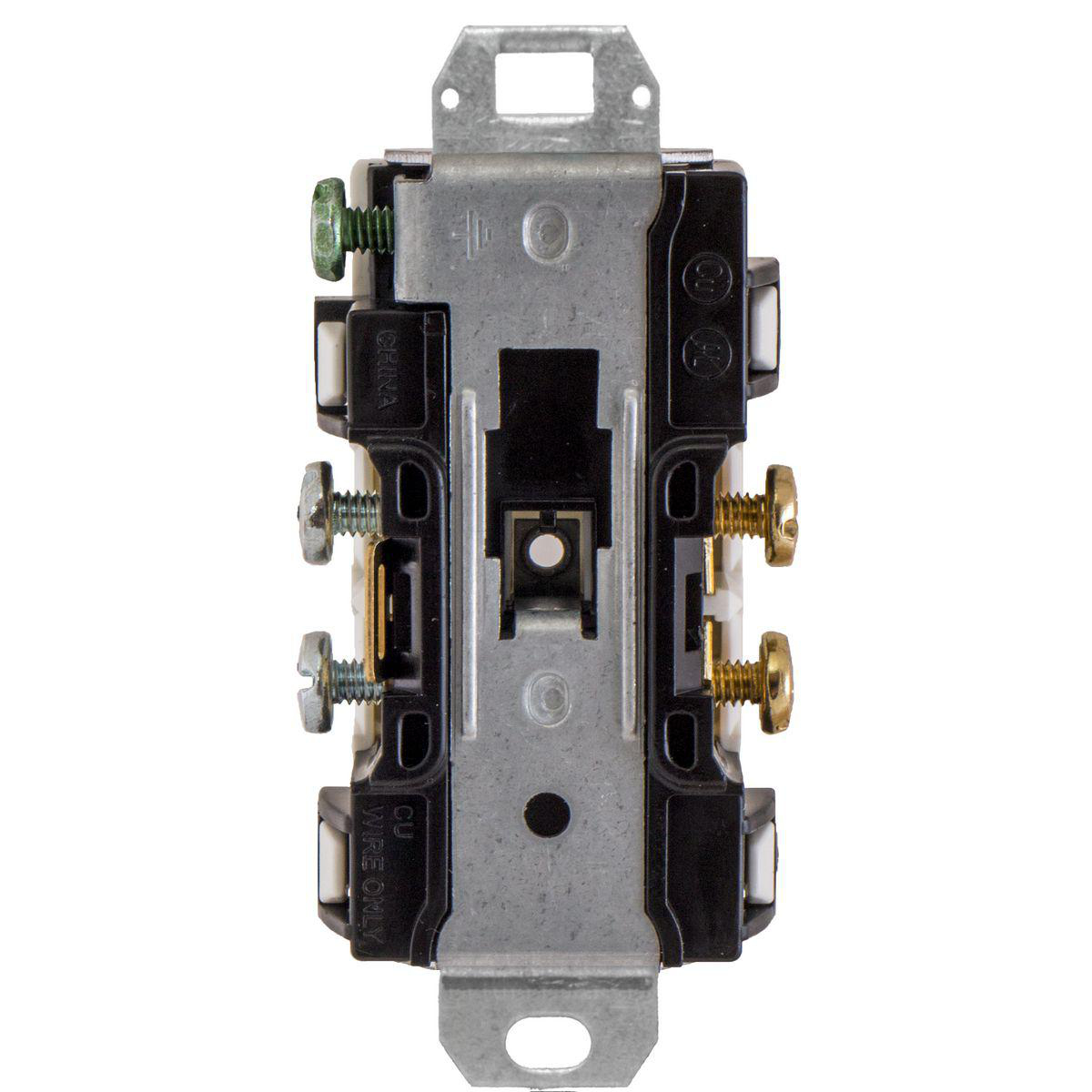

Product image for HUB CR20WHI RECEPTACLE 20A 125V SB 2P3W DUPLEX COMM GRADE WHITE TSLOT SMOOTH FACE 5-20R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HUB CR20WHI RECEPTACLE 20A 125V SB 2P3W DUPLEX COMM GRADE WHITE TSLOT SMOOTH FACE 5-20R

Manufacturer: Hubbell Wiring Devices | Catalog # CR20WHI | Electrozad South Part # 4987
$2.55 /ea
pc
Log in or register to view your price, purchase history, and more!
485 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Hubbell-Pro™ specification grade commercial receptacle made of smooth nylon face with 2 pole 3 wire grounding, 125 V, side wire only, traditional face shape, straight blade.

Technical Information

Amperage
20 A
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial/Specification
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
Style
Smooth Face
TC Connection
Back and Side Wired
Type
Traditional
Voltage
125 V
Wattage
2000 W
Wire Count
3
Wire Size
12 - 10

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585900179
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
GTiN
00783585900179
Product Series
Commercial Specification Grade
Product UPC
78358590017
Weight
0.2 lb

Dimensions

Height
3.28 in
Length
1.32 in
Width
0.83 in

Certifications & Compliance

Country of Origin
China
Compare
