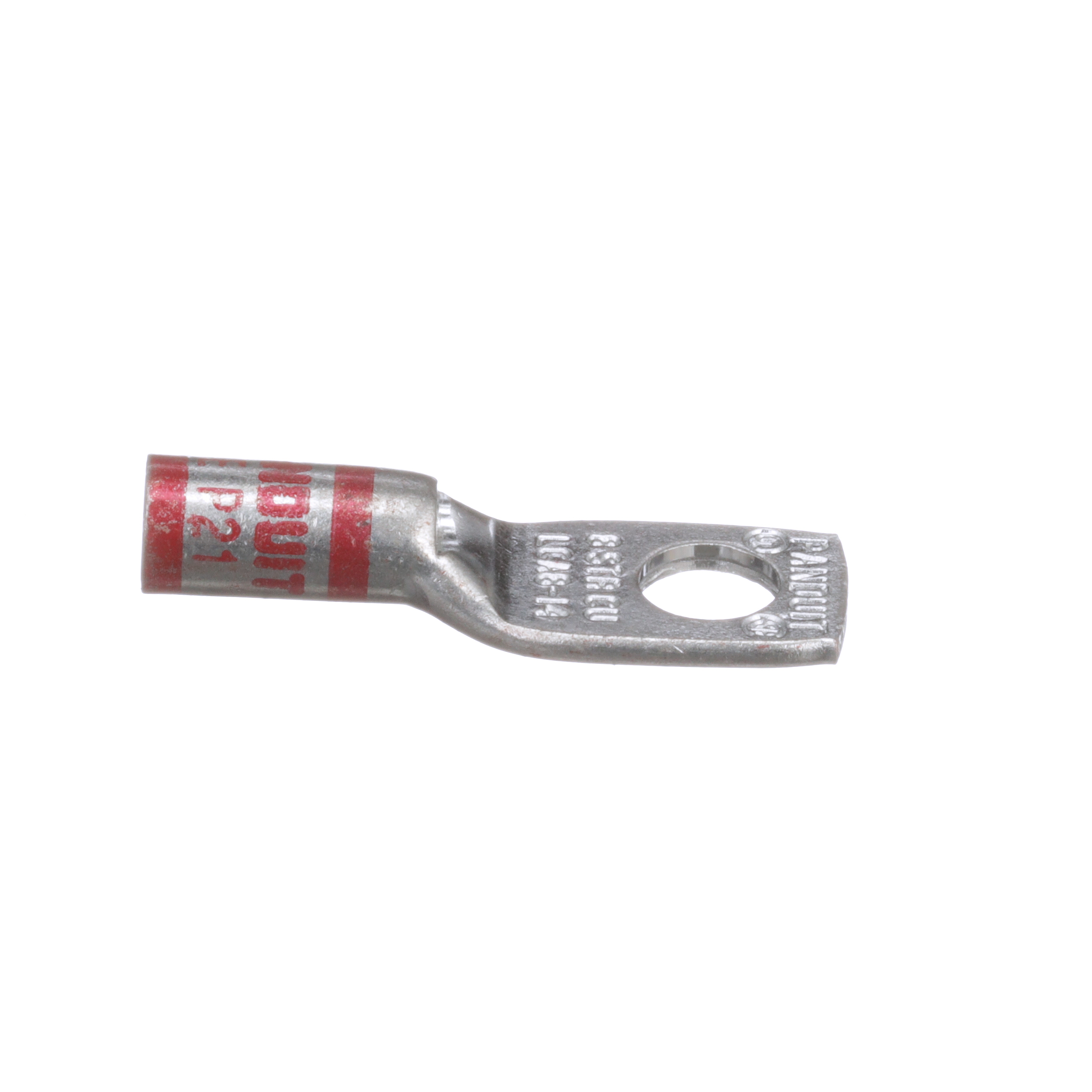

Image thumbnail 1

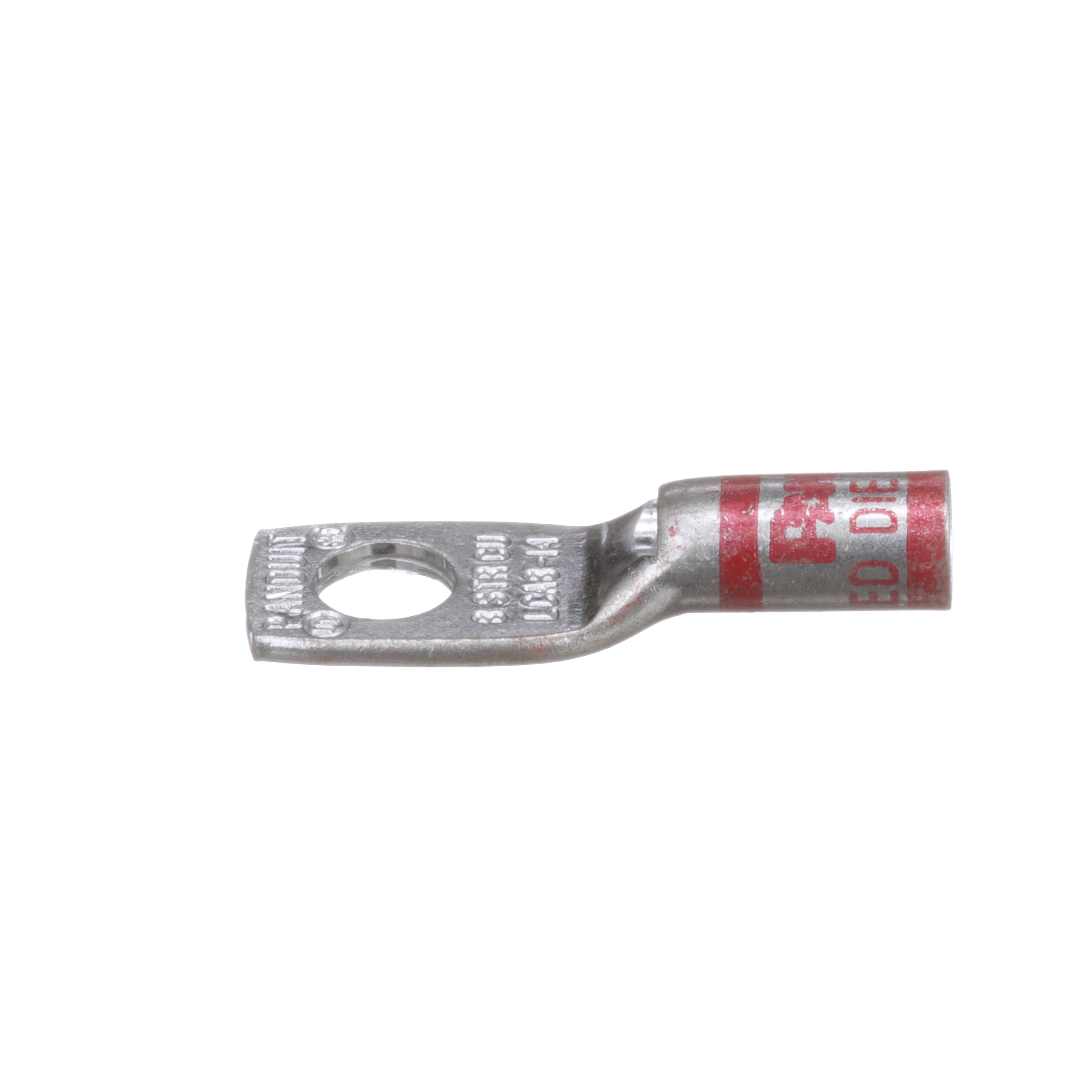

Image thumbnail 2
Email

PANDUIT LCA8-14-L LUG #8G WIRE 1/4"H 1HOLE COPPER COMPRESSION 1/4"STUD

Manufacturer: Panduit | Catalog # LCA8-14-L | Electrozad South Part # 5054
$304.40 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
52 available

For Delivery

Not in local stock *
Check another branch
Product Brochure Installation / Instruction Manual
Window lug with standard-barrel, one-hole for use with stranded copper conductors. Colour-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. Inspection window to visually assure full conductor insertion. Tin-plated to inhibit corrosion. Temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies.

Technical Information

Angle
Straight
Barrel Length
0.56 in
Barrel Type
Standard with Inspection Window
Cable Size
AWG
Color Coding
Red
Conductor Size
8 AWG
Material
Copper
Number of Holes
1
Size
#8 AWG Code
Stud Size
1/4 in
Tongue Thickness
0.07 in
Tongue Type
Standard
Tongue Width
0.48 in
Type
Type LCA

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900015
Color
Amber,Green,Red,White
Finish
Tin Plated
GTiN
00074983900015
Product UPC
07498390001

Dimensions

Outer Diameter
0.27 in
Overall Length
1.34 in

Certifications & Compliance

Country of Origin
Mexico
