BURNDY GAR3906BU G CON F/WTR PIPE 4

Manufacturer: Burndy | Catalog # GAR3906BU | Electrozad South Part # 50741
$239.21 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure

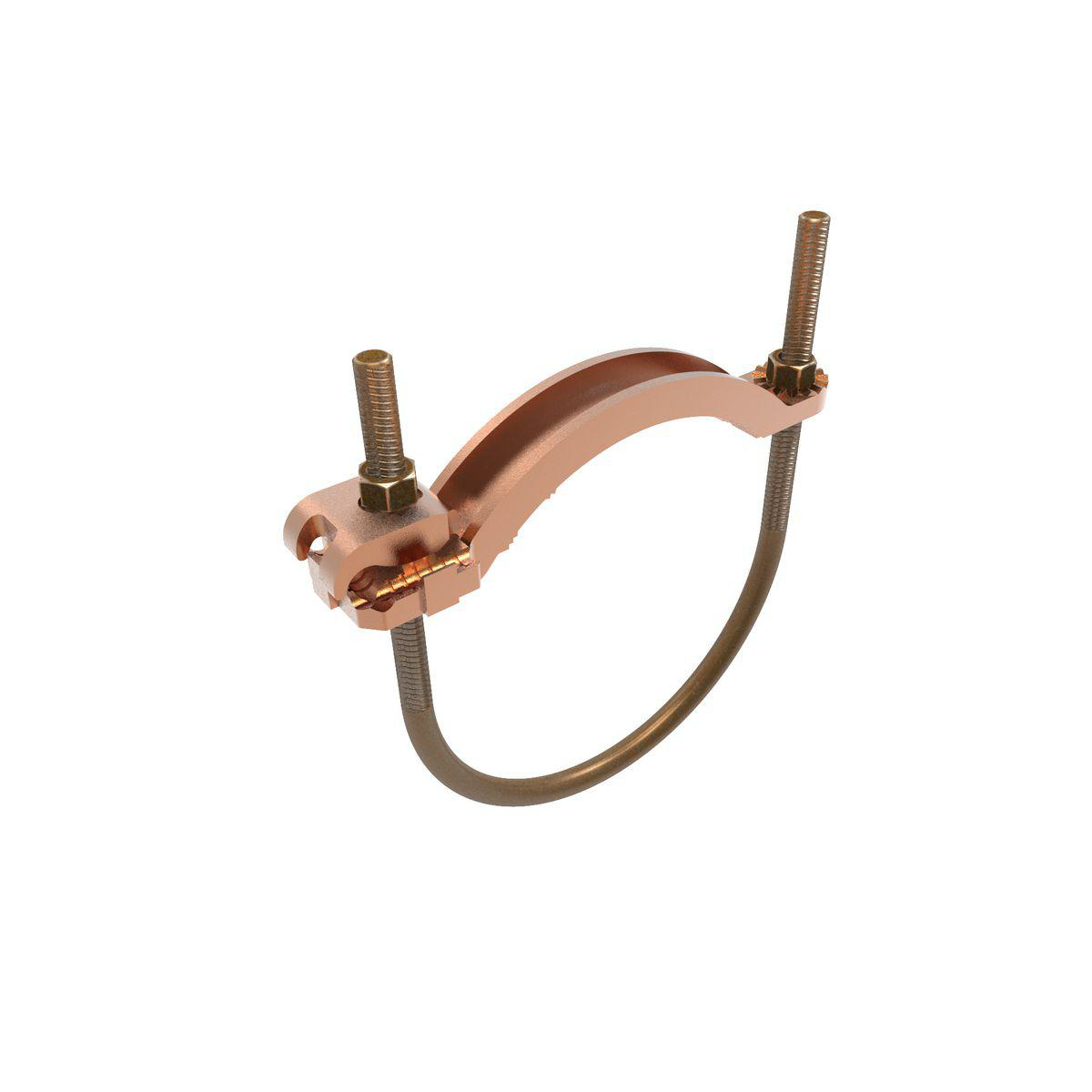

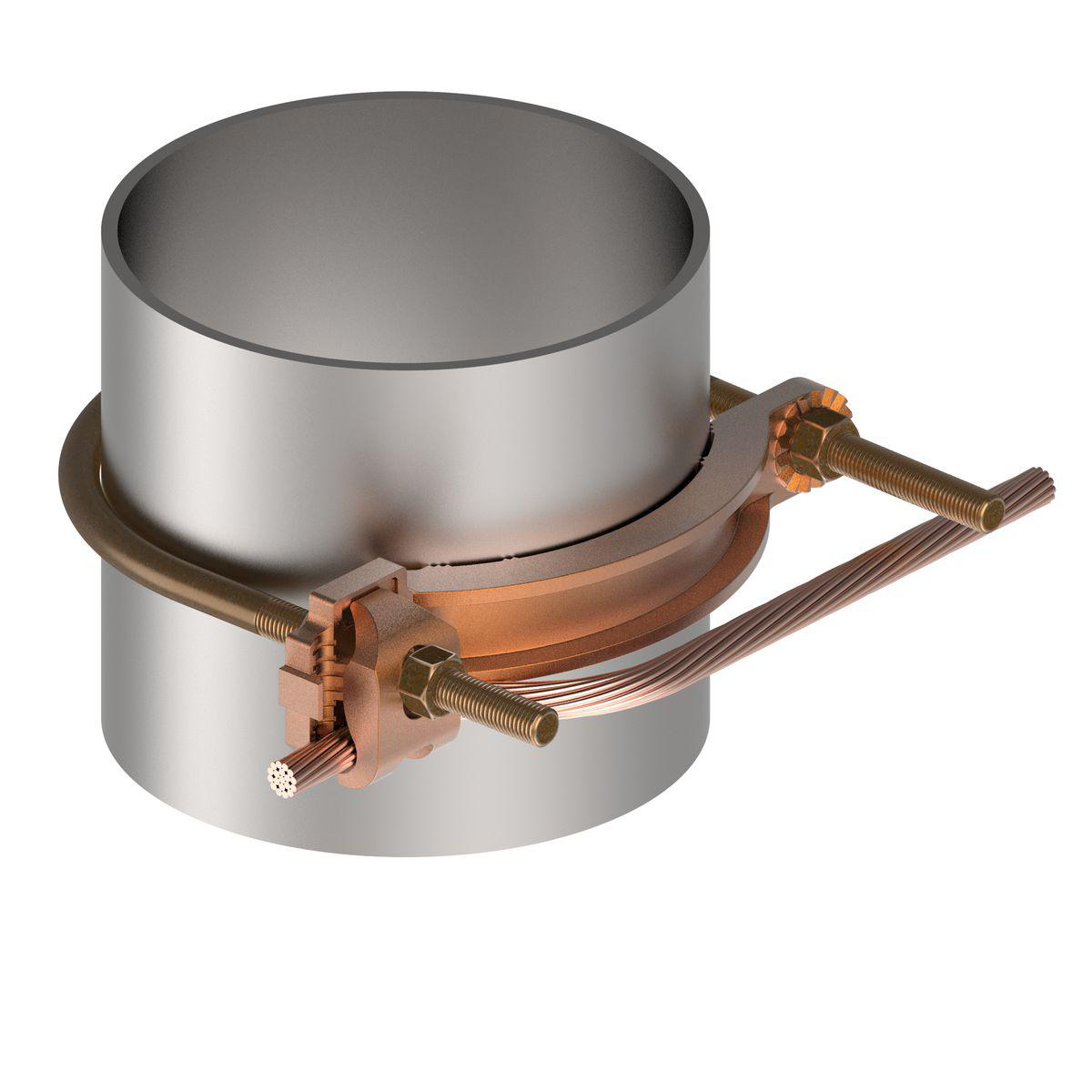

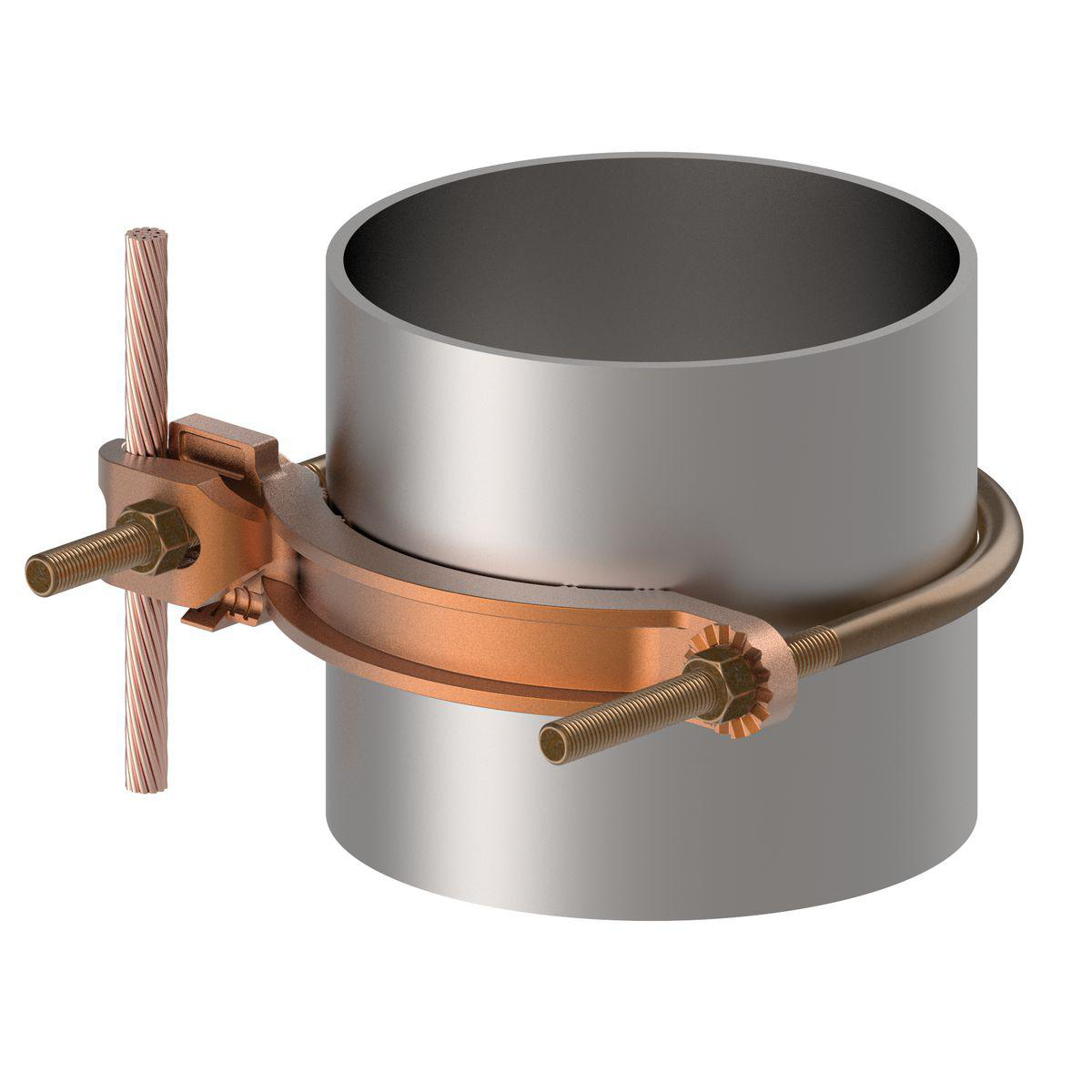

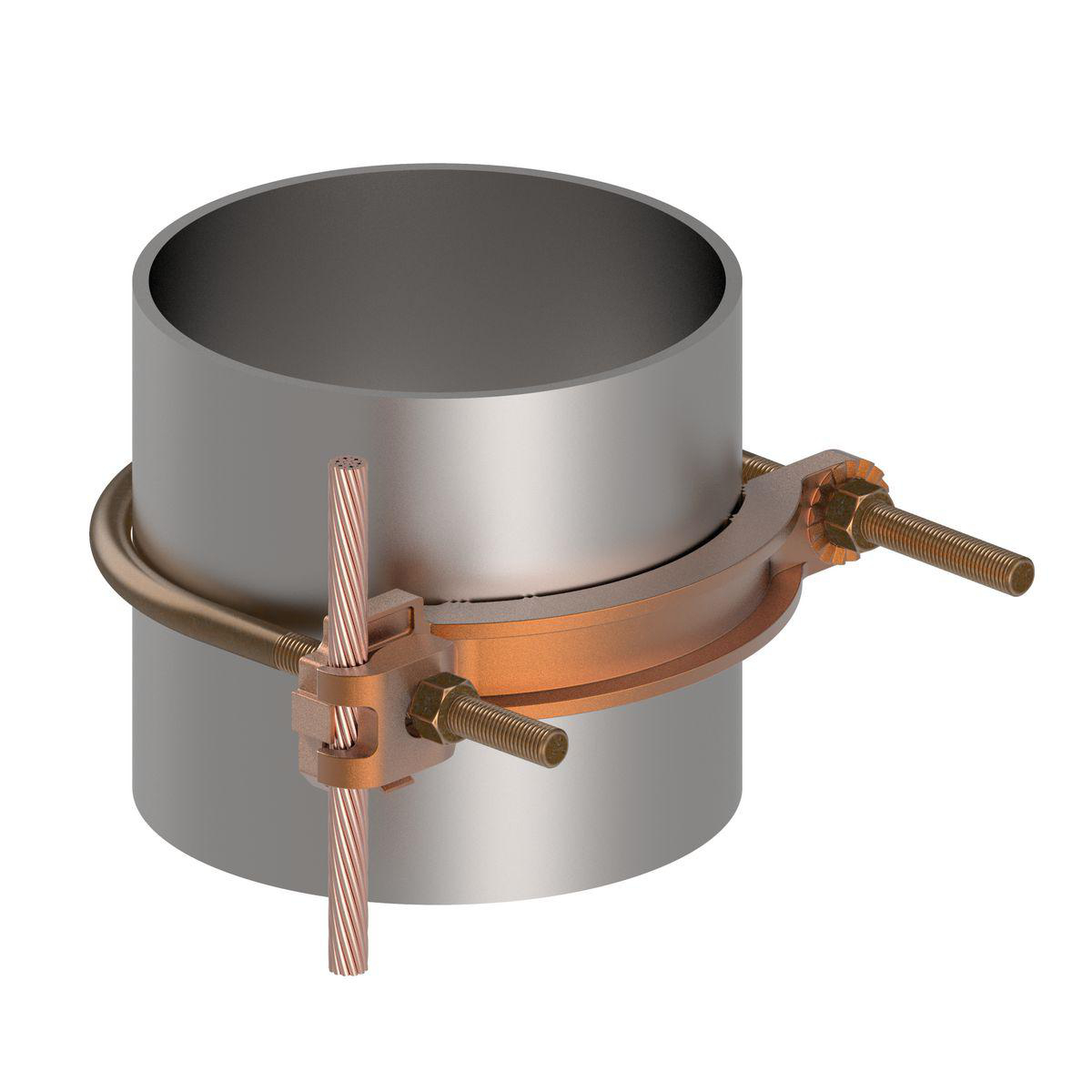

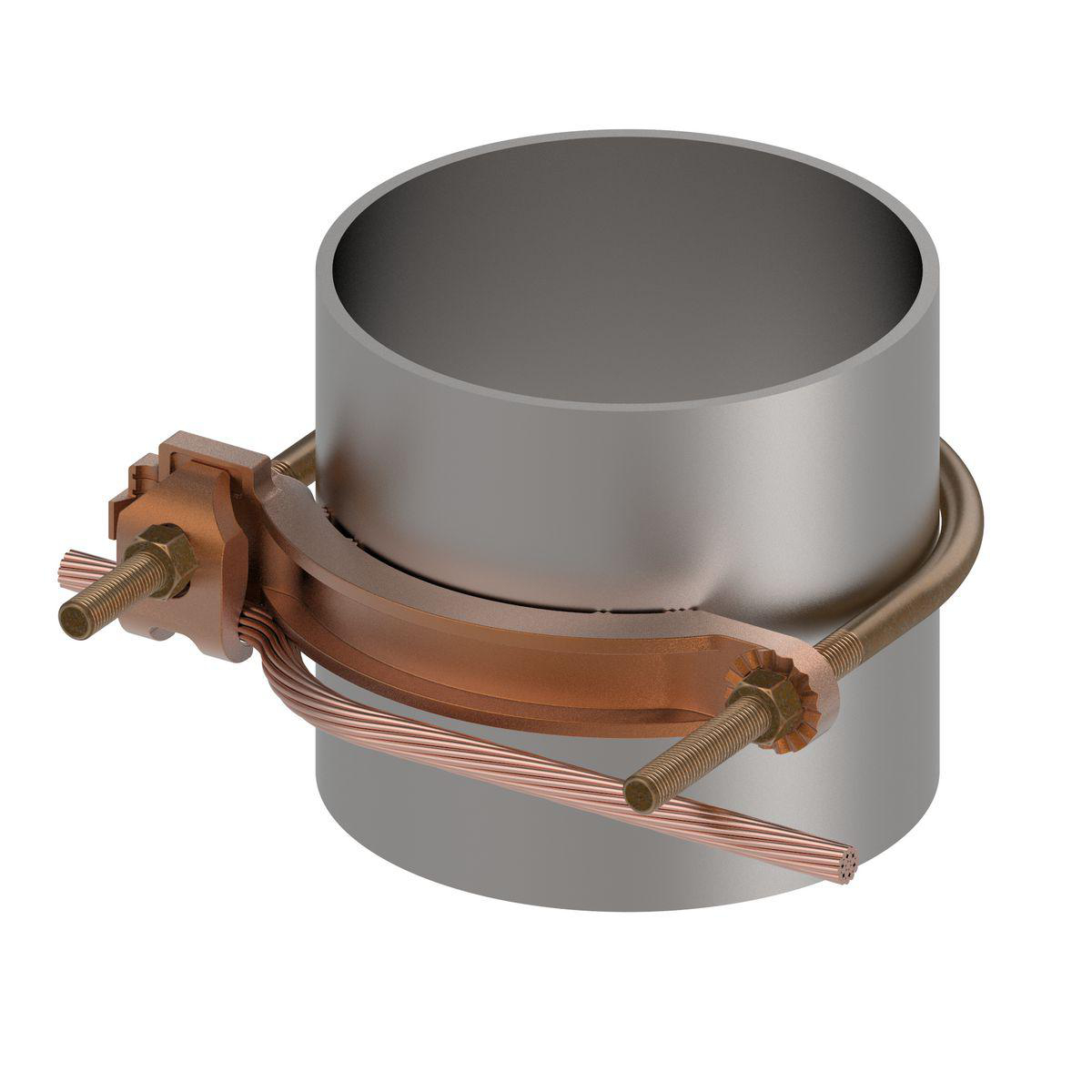

Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 6" Pipe, 3/8" Stud. Silicon bronze hardware.

Technical Information

Applications
For Connecting a Small to Medium Range Copper Ground Conductor to Water Pipe as Well as Structural and Reinforcing Rod Shapes, Direct Burial
Bolt Size
3/8-16
Conductor Size
4-4/0 AWG
Material
Copper Alloy Body, Silicone Bronze Hardware
Plated?
No
Plating Type
Unplated
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Type
Mechanical

Manufacturer Information

Brand
Burndy
Sub Brand
MECHANICAL CONNECTOR

General Product Info

12-Digit UPC
781810001530
GTIN
00781810001530
Product UPC
78181000153

Dimensions

Height
8.50 in
Length
1.75 in
Overall Length
1.75 in
Width
1.75 in

Certifications & Compliance

Country of Origin
Mexico
CSA
No
