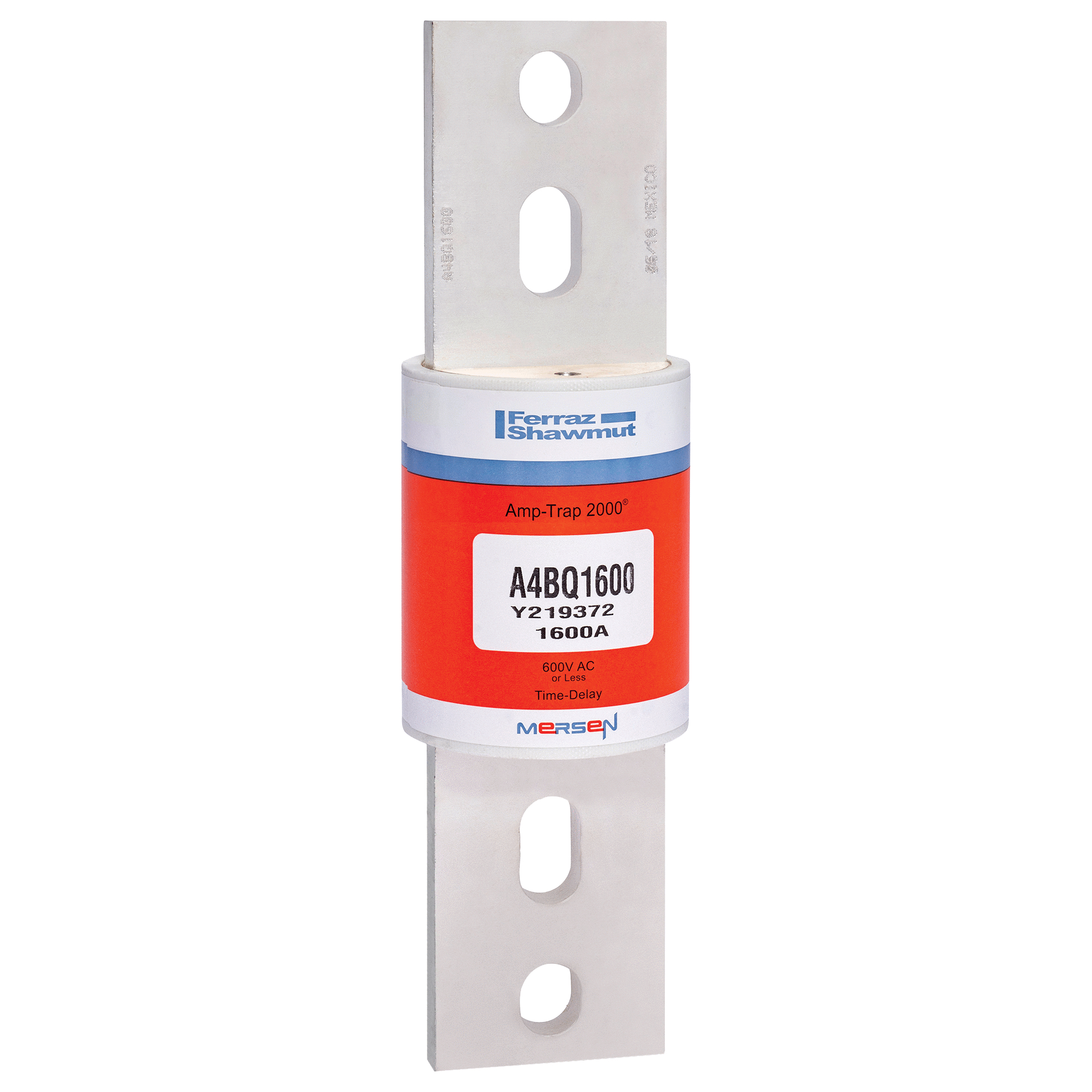

Product image for MERSEN A4BQ1600 FUSE HRC-L TD 1600A 600VAC 600VDC 4SEC TIME DELAY CLASS L 1600A BODYSIZE BLADE TYPE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN A4BQ1600 FUSE HRC-L TD 1600A 600VAC 600VDC 4SEC TIME DELAY CLASS L 1600A BODYSIZE BLADE TYPE

Manufacturer: Ferraz Shawmut Mersen | Catalog # A4BQ1600 | Electrozad South Part # 52350
$1,071.83 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.

Technical Information

Amperage
1600 A
Applications
For Mains Feeders Large Motors Lighting, Heating and General Loads Circuit Breaker Back-Up UPS Battery Circuits
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class L
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Bolt-On
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
Time-Delay

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap® 2000, SmartSpot

General Product Info

12-Digit UPC
782001939403
Class
L
GTIN
10782001939400
Product UPC
78200193940
Weight
5.97 lb

Dimensions

Diameter
3 in
Length
10.75 in
