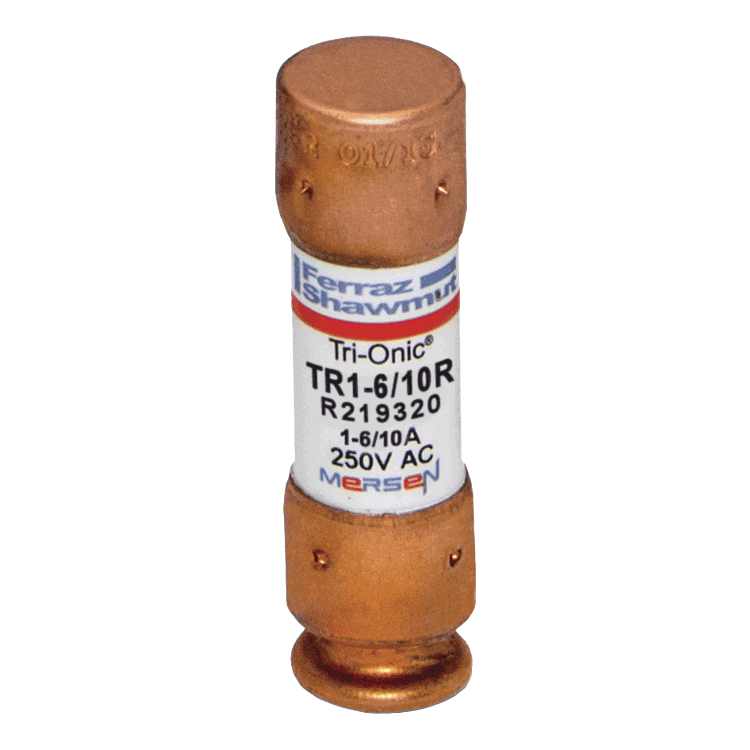

Product image for MERSEN TR1-6/10R FUSE HRCI-R 1-6/10A TIME DELAY 250V CLASS RK5 TRIONIC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN TR1-6/10R FUSE HRCI-R 1-6/10A TIME DELAY 250V CLASS RK5 TRIONIC

Manufacturer: Ferraz Shawmut Mersen | Catalog # TR1-6/10R | Electrozad South Part # 53668
$5.08 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Technical Information

Amperage
1.6 A
Applications
For Motor Start-Ups and Transformer Inrush Currents without Nuisance Opening Current-limiting for Low Peak Let-Thru Current Rejection-Style Design Prevents Replacement Errors (When used with Recommended Fuse Block)
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class RK-5
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
250 V
TC Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
Time-Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001747626
Class
RK-5
GTIN
30782001747627
Product UPC
78200174762
Weight
0.037 lb

Dimensions

Diameter
0.56 in
Length
2 in
