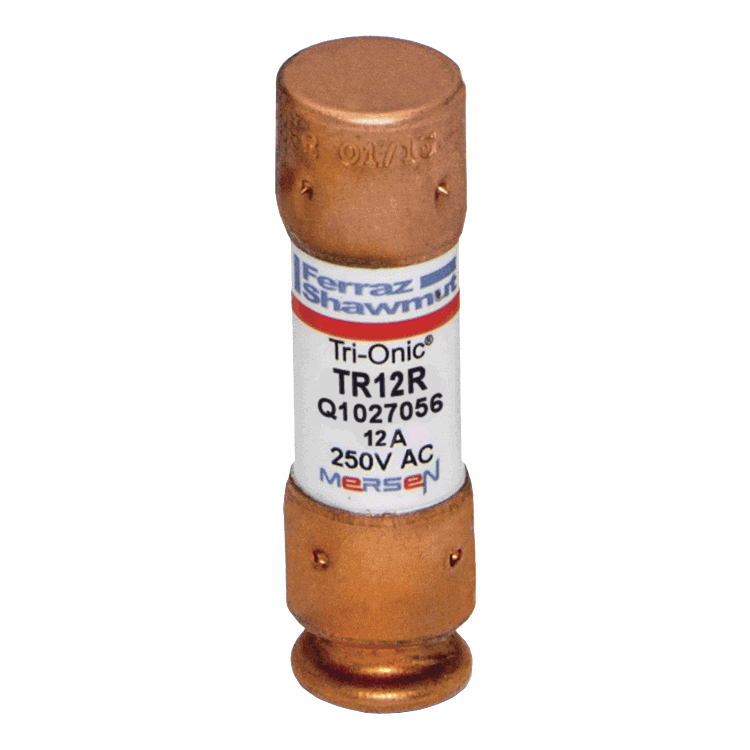

Product image for MERSEN TR12R FUSE HRCI-R 12A 250V TIME DELAY 250V CLASS RK5 TRIONIC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN TR12R FUSE HRCI-R 12A 250V TIME DELAY 250V CLASS RK5 TRIONIC

Manufacturer: Ferraz Shawmut Mersen | Catalog # TR12R | Electrozad South Part # 54434
$5.08 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Technical Information

Amperage
12 A
Applications
Optional solid-state SmartSpot indicator Time-delay for motor start-ups and transformer inrush currents without nuisance opening Current-limiting for low peak let-thru current Rejection-style design prevents replacement errors (when used with recommended fuse block)
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class RK5
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
160 V
TC Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
Time-Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001747817
Class
RK-5
GTIN
30782001747818
Product UPC
78200174781
Weight
0.037 lb

Dimensions

Diameter
0.56 in
Length
2 in
