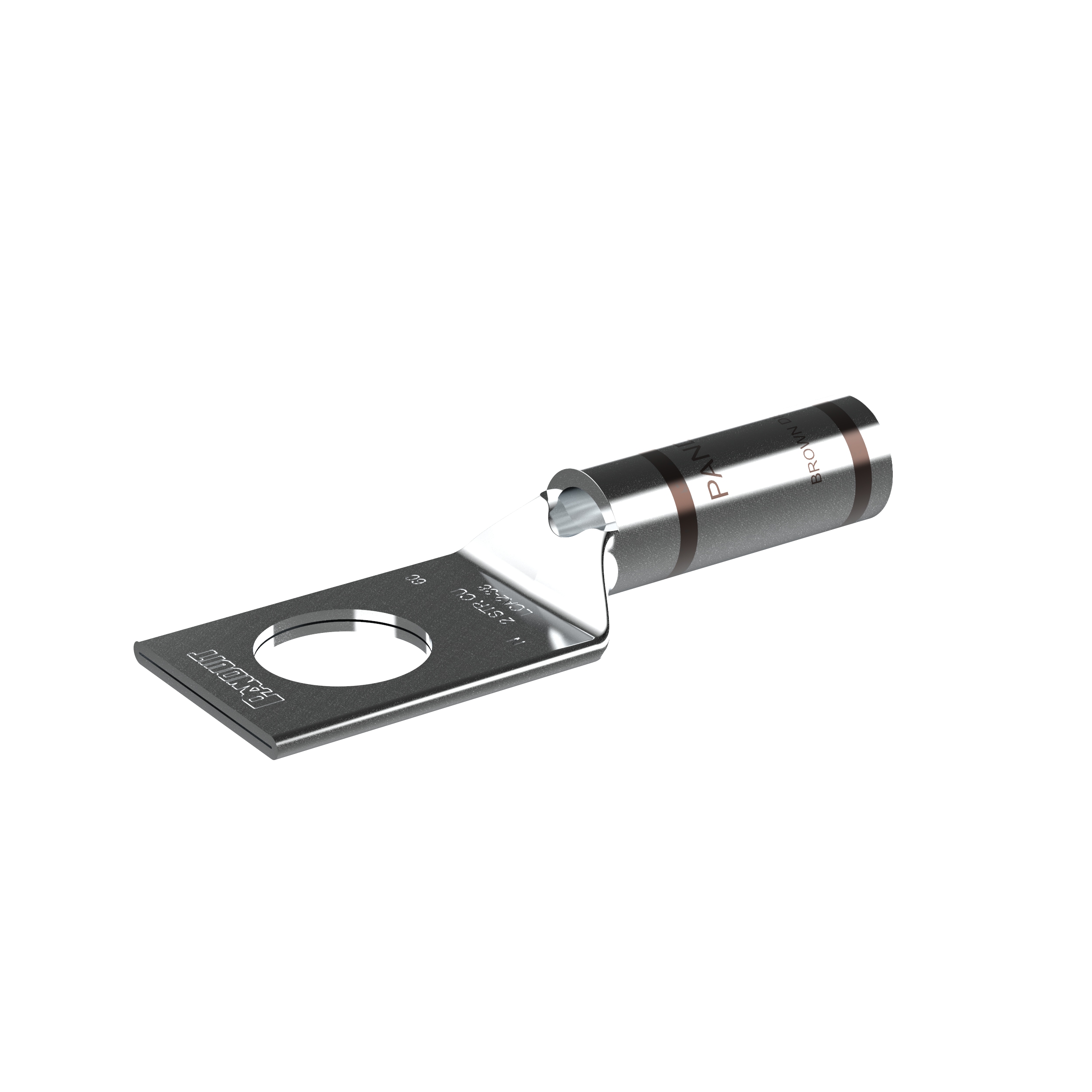

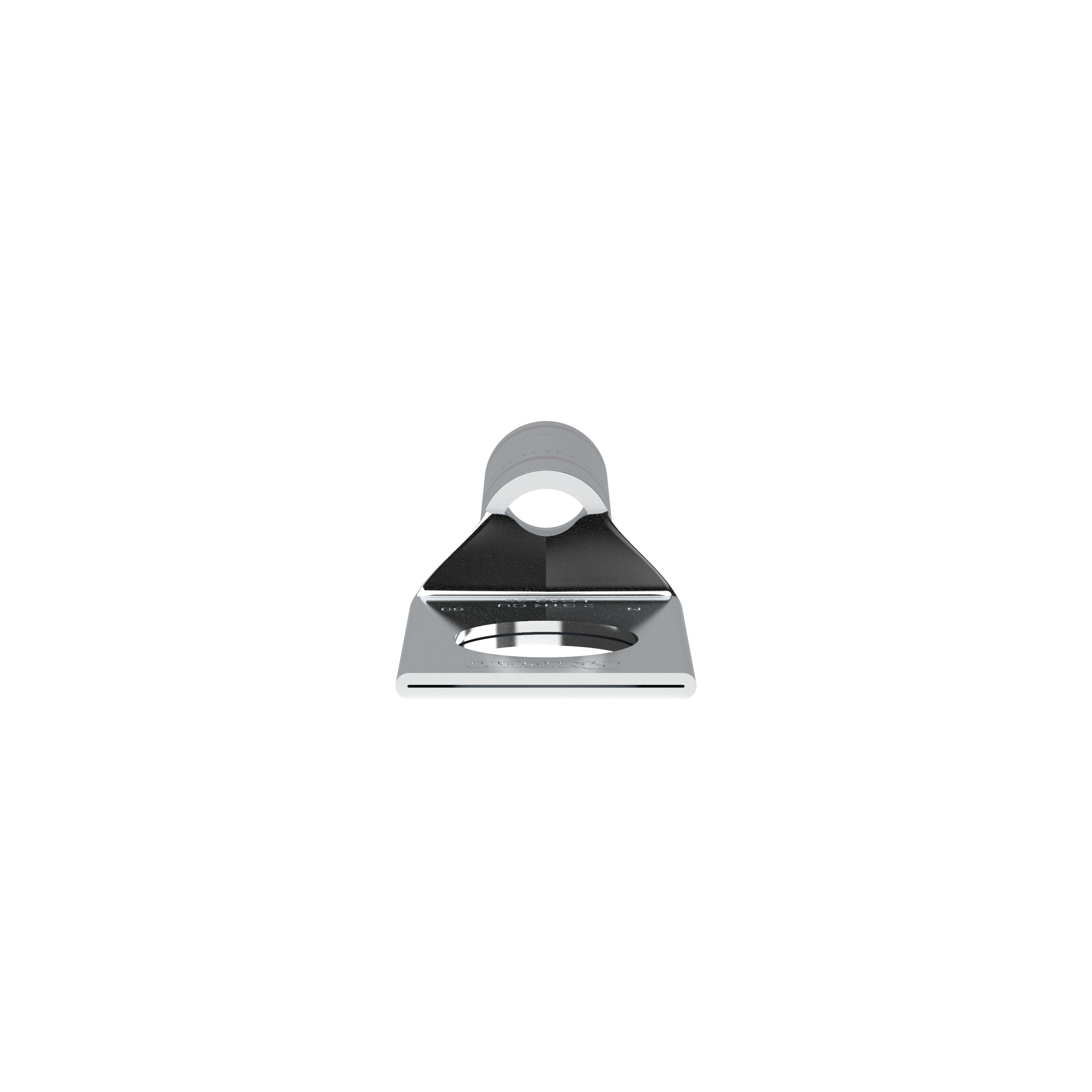

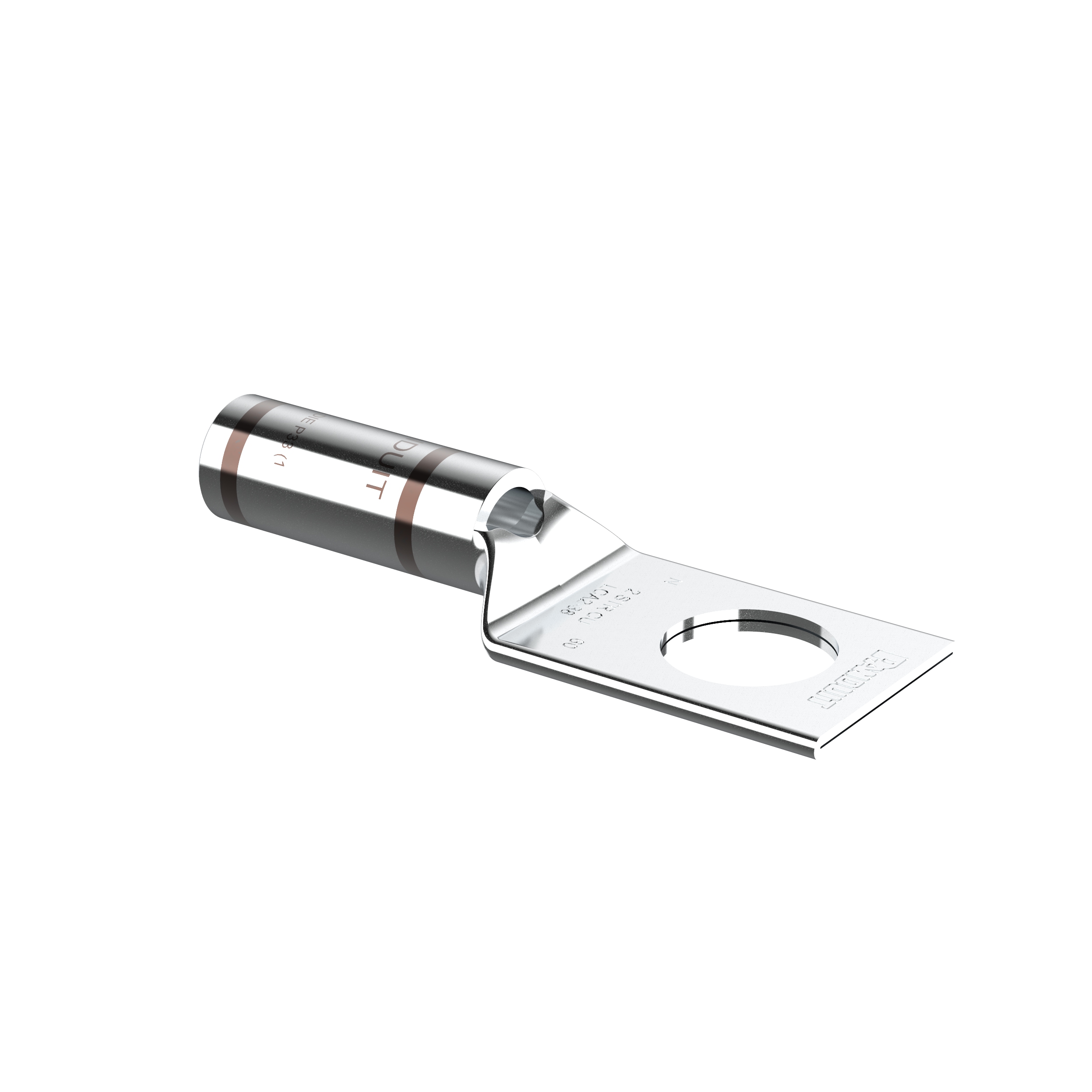

Product image for PANDUIT LCA2-38-Q LUG #2G WIRE 3/8"H 1HOLE COPPER COMPRESSION 3/8"STUD
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT LCA2-38-Q LUG #2G WIRE 3/8"H 1HOLE COPPER COMPRESSION 3/8"STUD

Manufacturer: Panduit | Catalog # LCA2-38-Q | Electrozad South Part # 54910
$834.40 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
75 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual
The LCA2-38-Q Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C

Technical Information

Angle
Straight
Barrel Length
0.88 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Brown
Material
Copper
Number of Holes
1
Size
#2 AWG Code
Standard
ANSI C-73
Stud Size
0.375 in
Tongue Thickness
0.1 in
Tongue Type
Standard
Tongue Width
0.66 in
Type
Type LCA

Packaging

Package Qty
25

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900176
Color
Light Brown
Finish
Tin Plated
GTiN
00074983900176
Product UPC
07498390017

Dimensions

Outer Diameter
0.42 in
Overall Length
1.97 in

Certifications & Compliance

Country of Origin
Mexico
