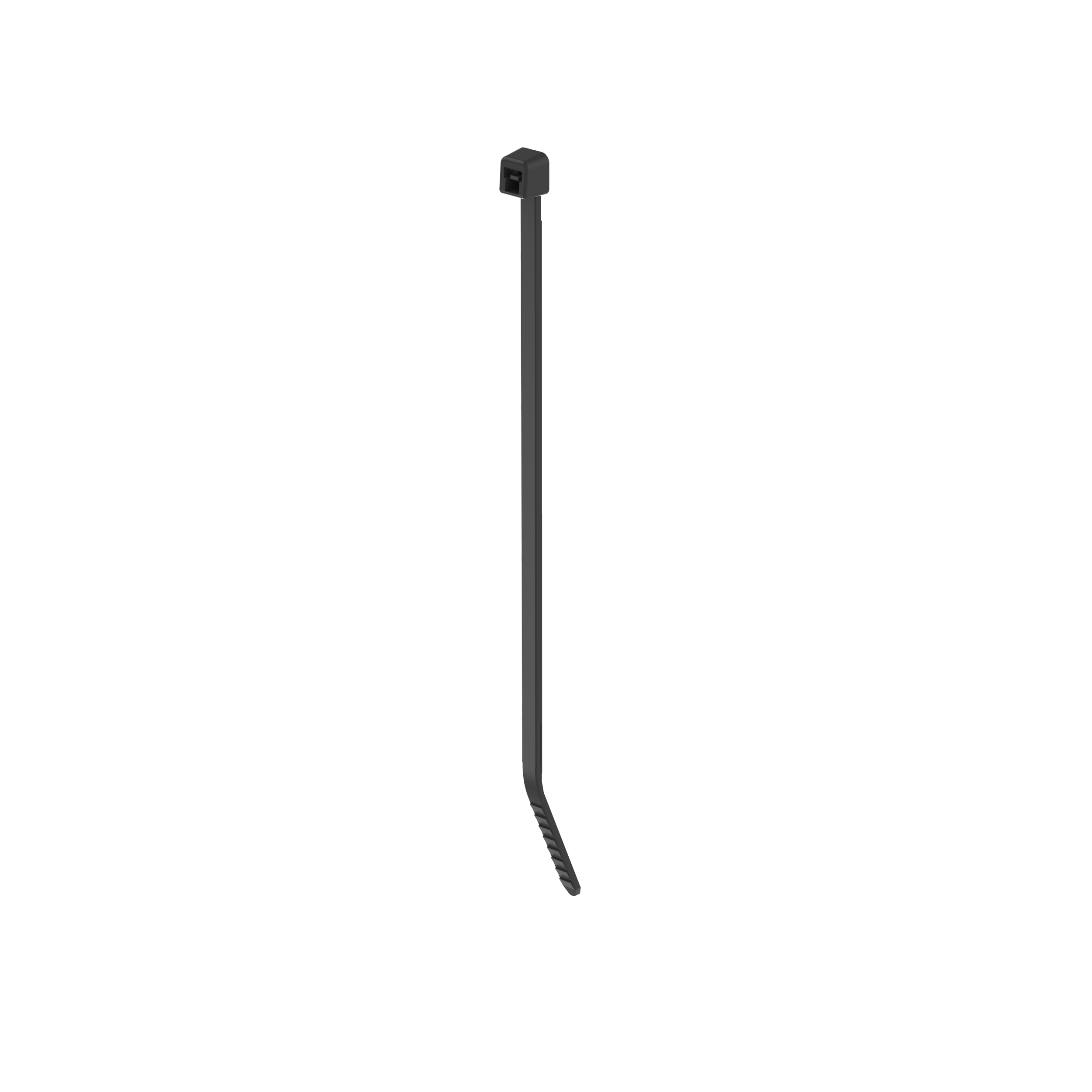

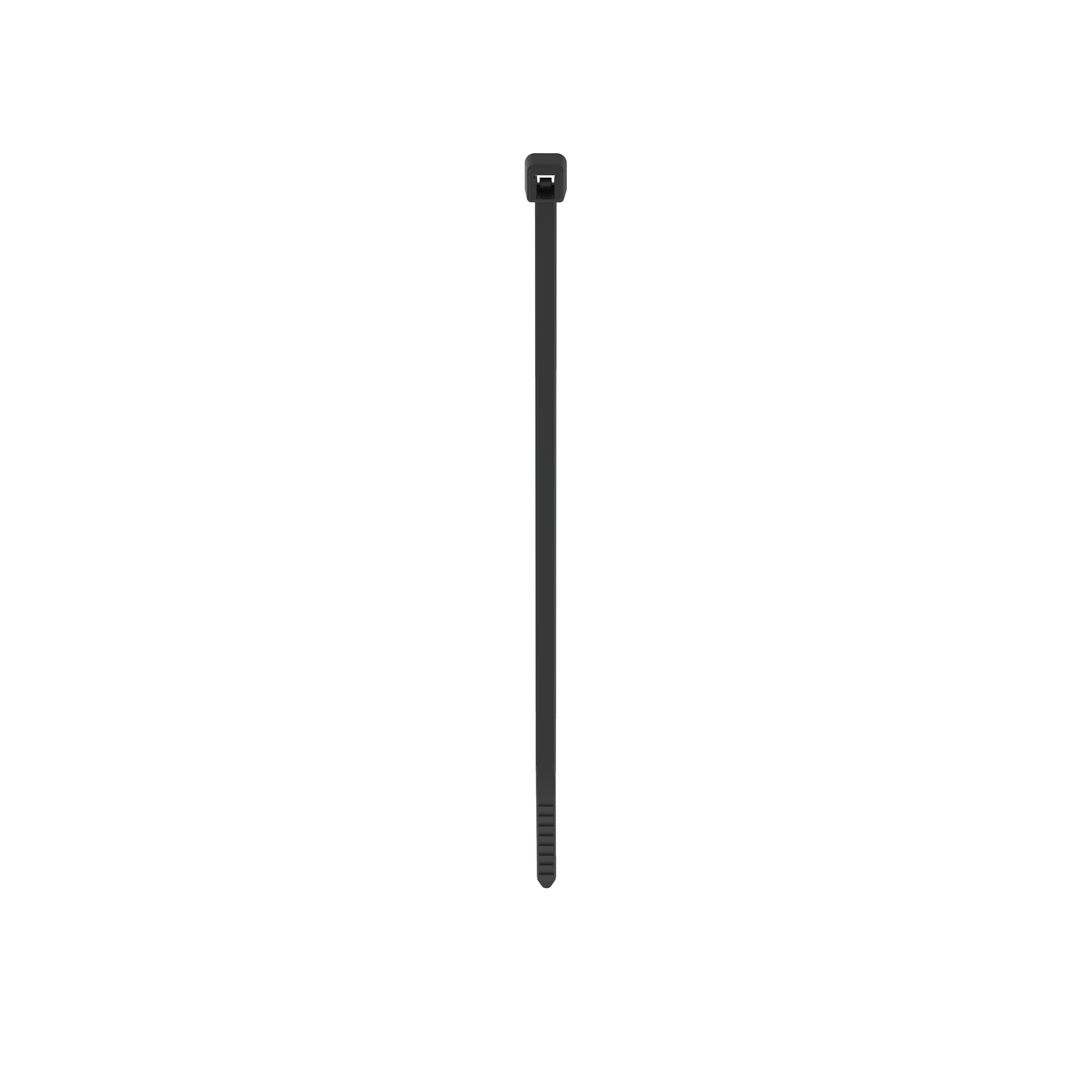

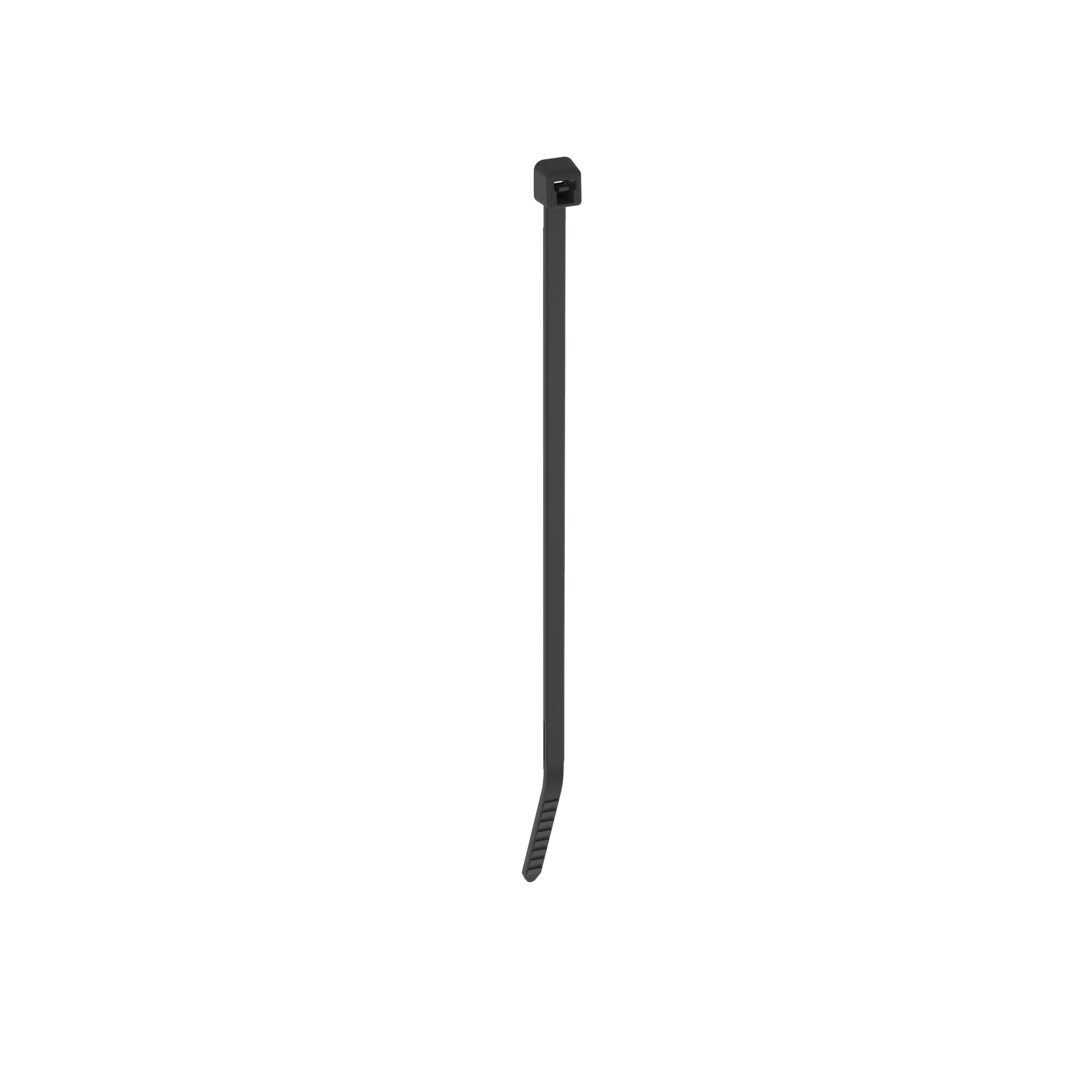

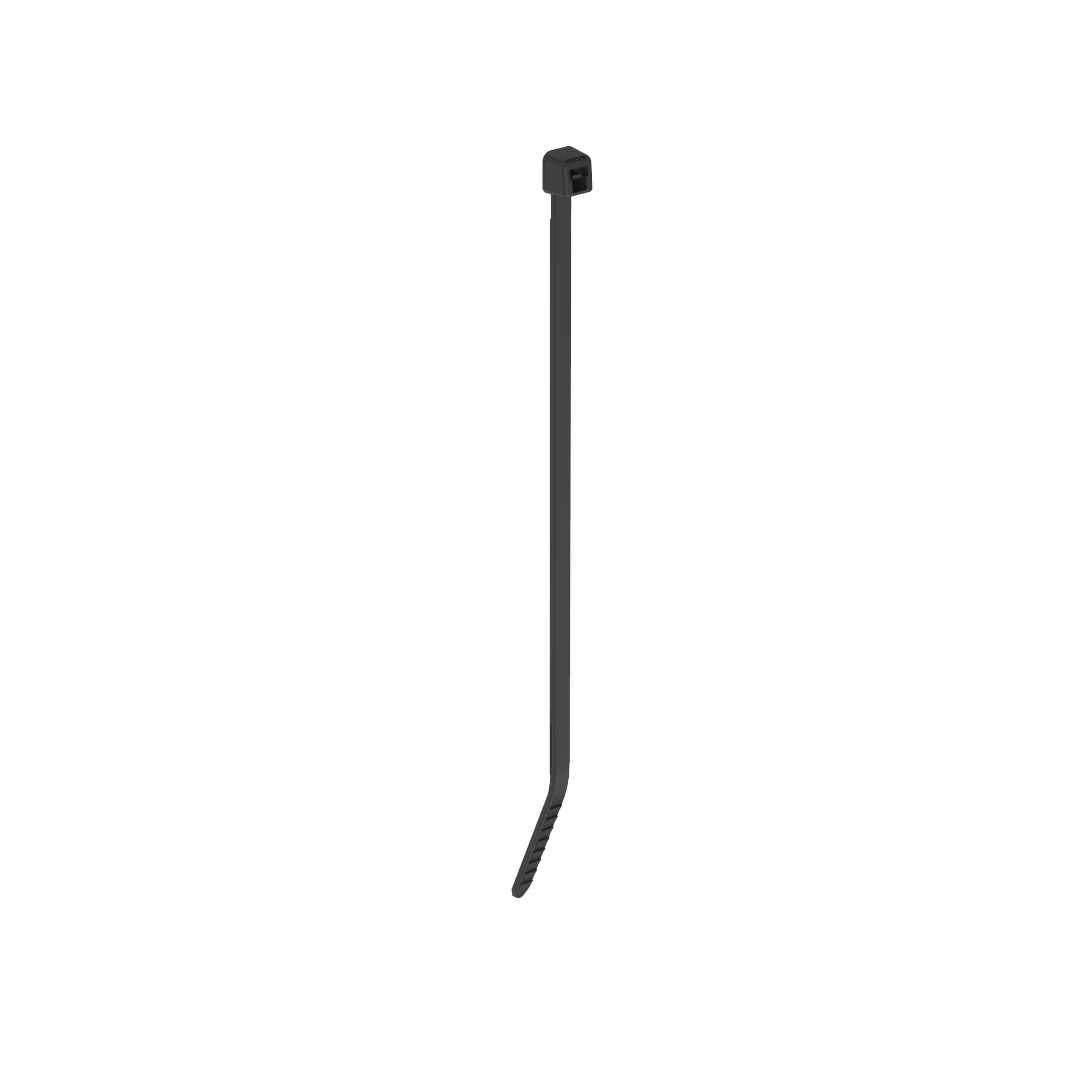

PANDUIT PLT1.5M-C0 PAN-TY 5.6"LONG TS MINIATURE LOCKING CABLE TIE .098"WIDE BLACK 18LBS-MLS

Manufacturer: Panduit | Catalog # PLT1.5M-C0 | Electrozad South Part # 55115
$28.54 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Panduit PLT1.5M-C0 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Miniature cross section, 5.6" (142mm) length. Made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.

Technical Information

Applications
For General
Body Thickness
0.043 in
Body Width
0.098 in
Bundle Diameter
31.8 mm
Material
Nylon 6.6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 85 degrees C
Tensile Strength
80 N
Type
Miniature Cross Section, Plenum, UV-Resistant, Weather Resistant

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983540587
Color
Black
Environment
Indoor,Outdoor
Environmental Conditions
32 °F
GTIN
00074983540587
Product UPC
07498354058
Used With
GTS-E, GS2B-E, PTS, PPTS, STS2 Cable Tie Tools

Dimensions

Length
5.6 in
Overall Length
5.6 in
Thickness
1.1 mm
Width
2.5 mm

Certifications & Compliance

Country of Origin
Malaysia
