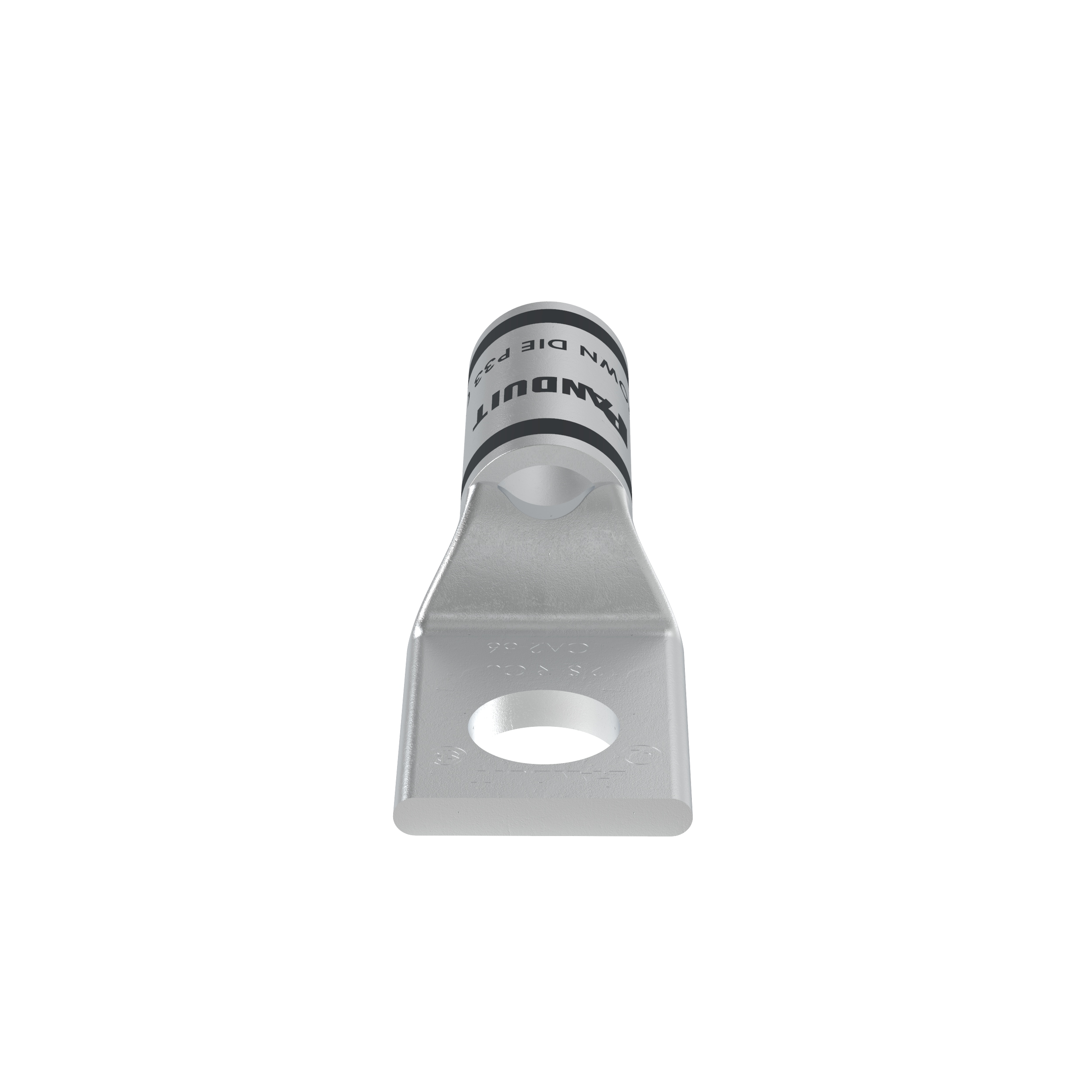

Image thumbnail 1

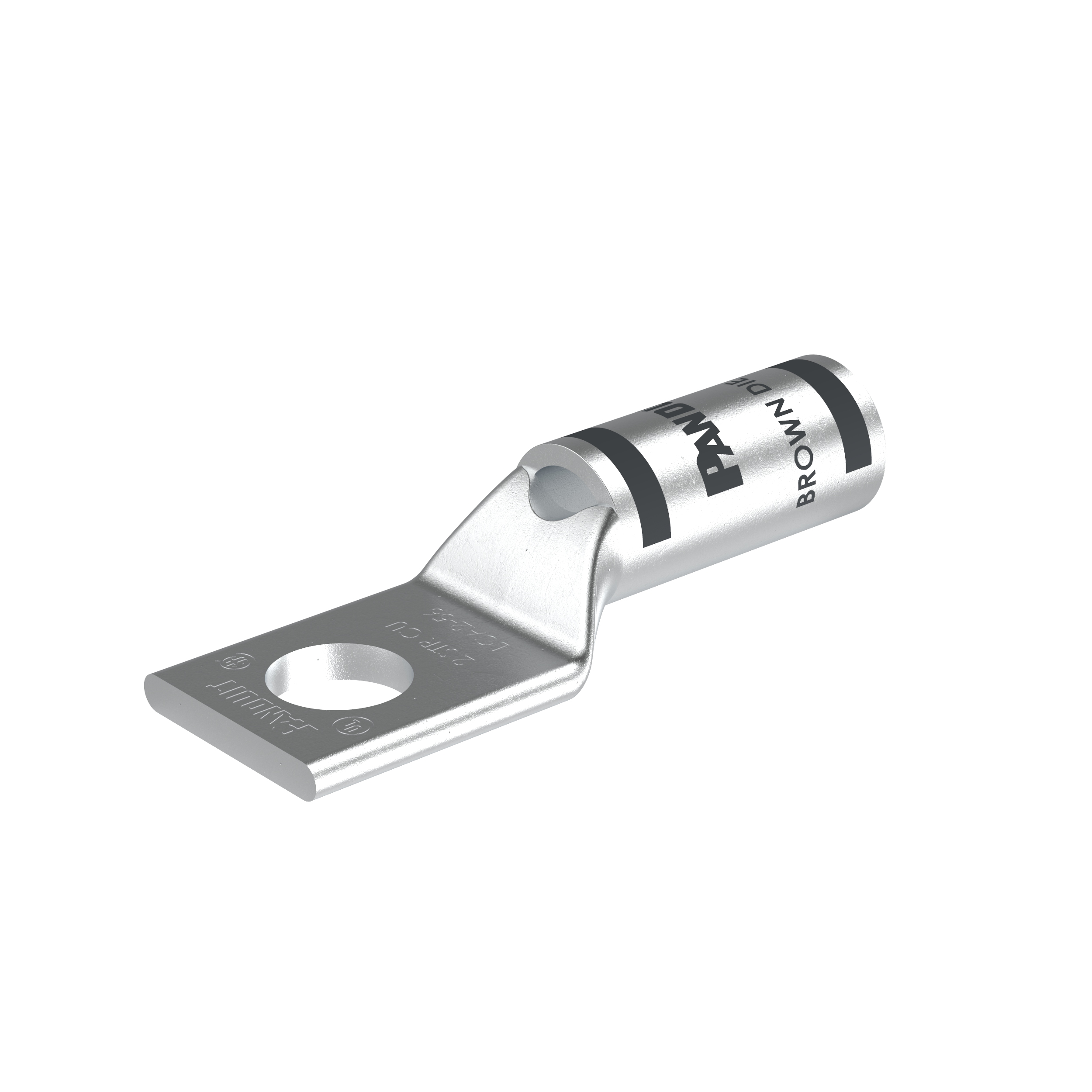

Image thumbnail 2

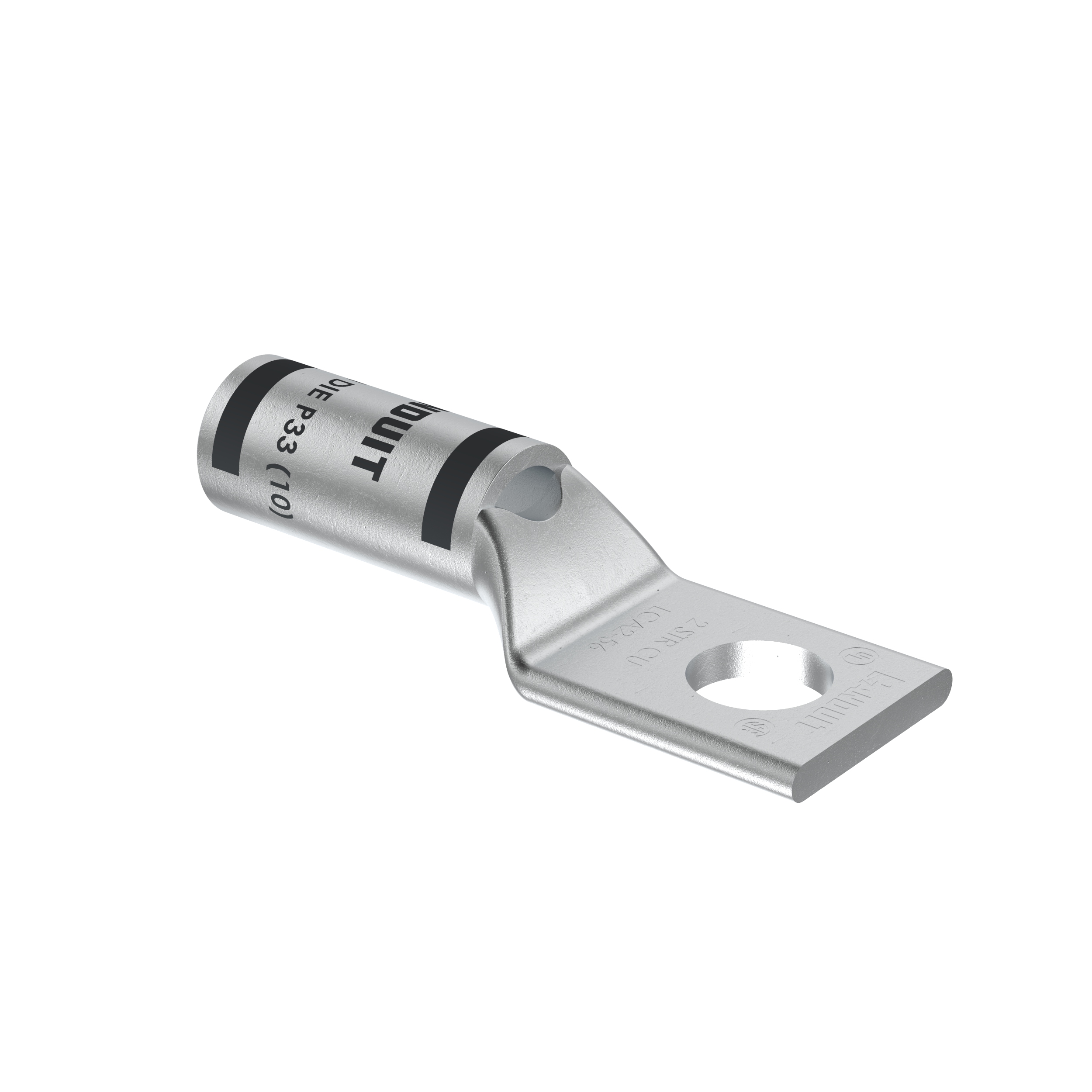

Image thumbnail 3
Email

PANDUIT LCA2-56-Q LUG #2G WIRE 5/16"H 1HOLE COPPER COMPRESSION 5/16"STUD

Manufacturer: Panduit | Catalog # LCA2-56-Q | Electrozad South Part # 55590
$834.40 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
96 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual
The LCA2-56-Q Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Technical Information

Angle
Straight
Barrel Length
0.88 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Brown
Material
Copper
Number of Holes
1
Size
#2 AWG Code
Stud Size
0.3125 in
Tongue Thickness
0.1 in
Tongue Type
Standard
Tongue Width
0.66 in
Type
Type LCA

Packaging

Package Qty
25

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900169
Color
Brown
Finish
Tin Plated
GTiN
00074983900169
Product UPC
07498390016

Dimensions

Outer Diameter
0.42 in
Overall Length
1.9 in

Certifications & Compliance

Country of Origin
Mexico
