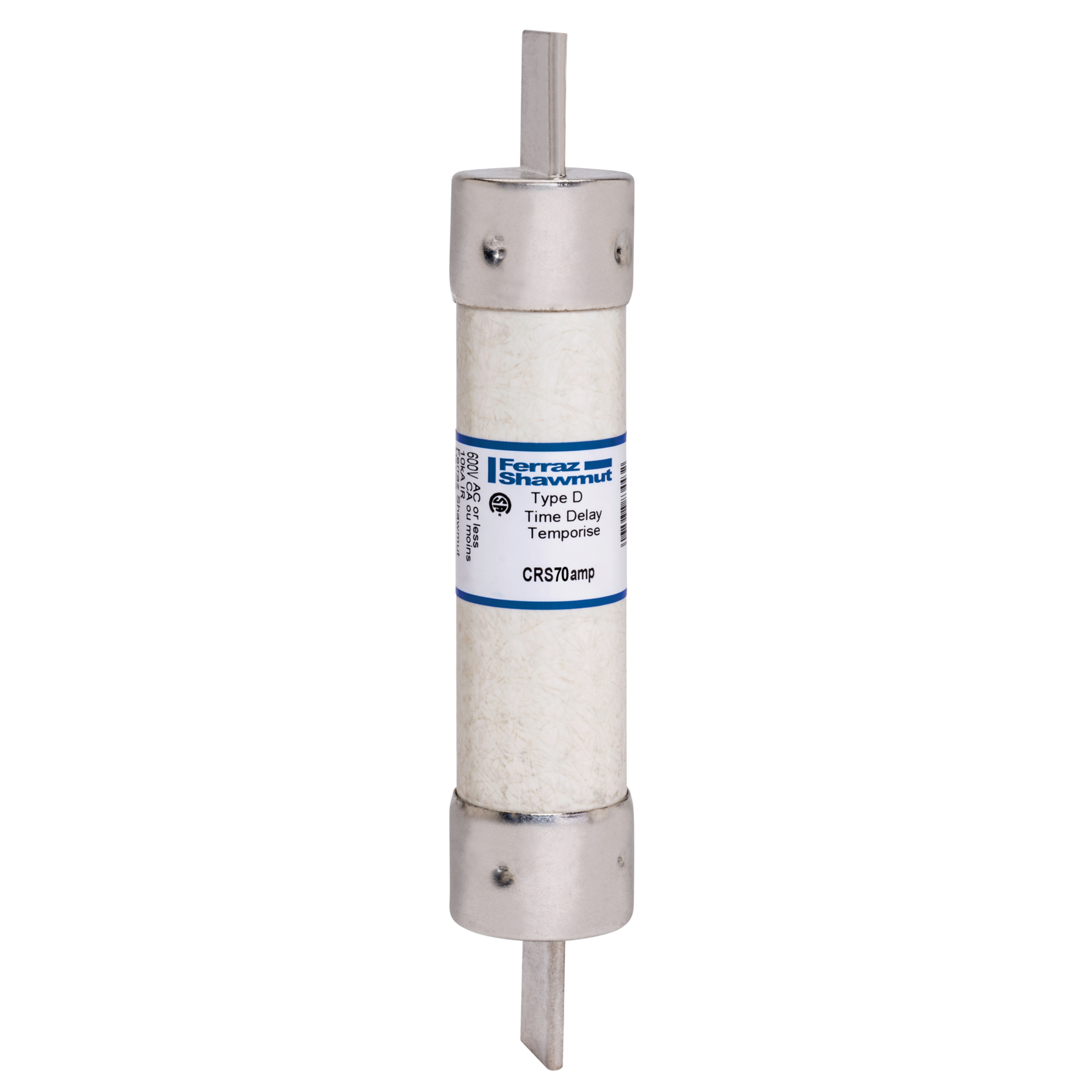

MERSEN CRS70 FUSE CLASS H 70A 600V TIME DELAY STANDARD CODE CSA TYPE P

Manufacturer: Ferraz Shawmut Mersen | Catalog # CRS70 | Electrozad South Part # 56002
$28.55 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen CRN and CRS fuses are standard fuses, Type D, with 10kA short circuit rating. Type D fuses satisfy the Canadian Electrical Code requirement for low melting-point fuses

Technical Information

Amperage
70 A
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class H
Insulation Material
Paper
Mounting Type
Bolted
Rated Voltage AC
600 V
Terminal Material
Tin-Plated Copper
Terminal Type
Blade
Type
Time-Delay

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
068938834401
Class
H
GTIN
30068938834402
Product UPC
06893883440
Weight
0.55 lb

Dimensions

Diameter
1.38 in
Length
7.88 in
