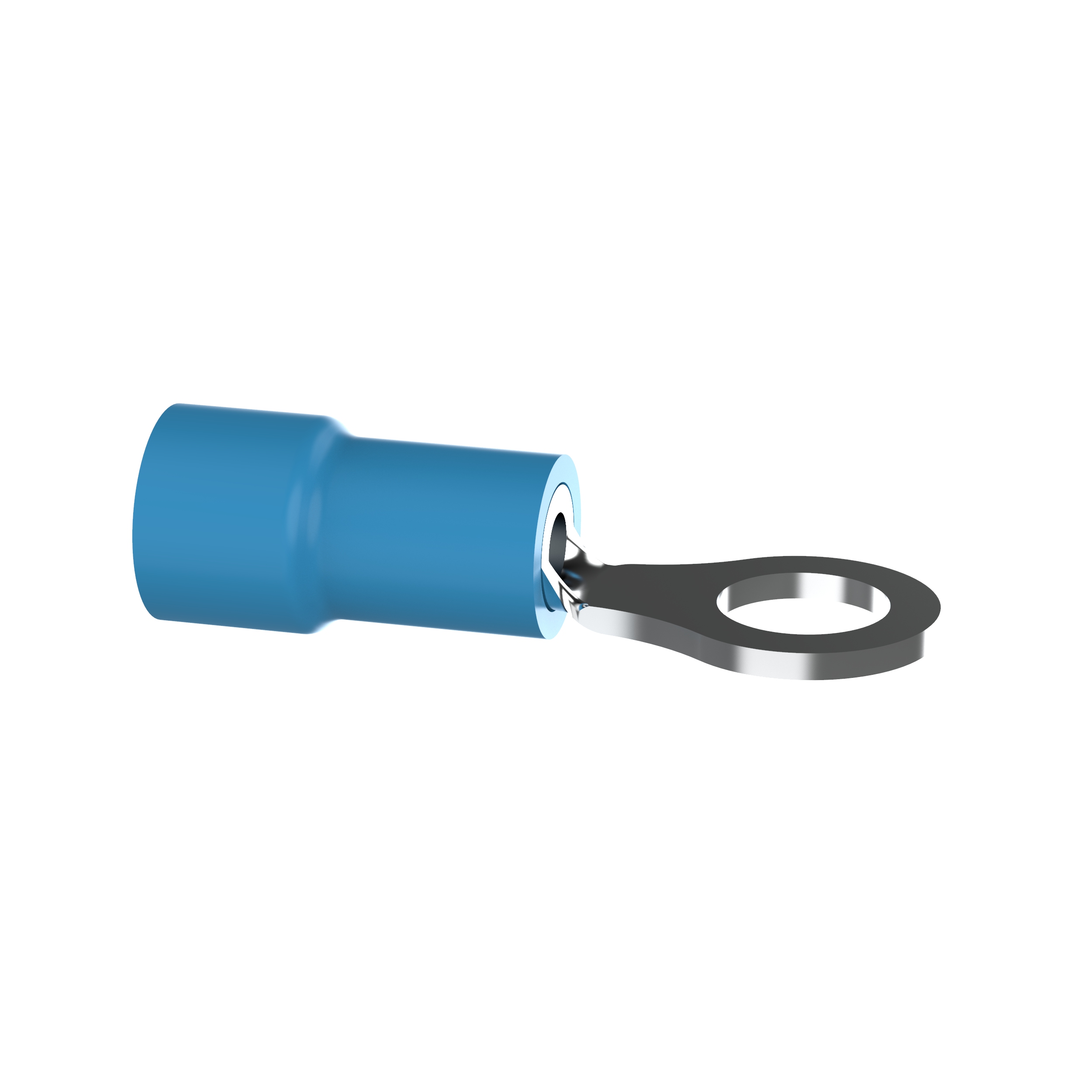

Image thumbnail 1

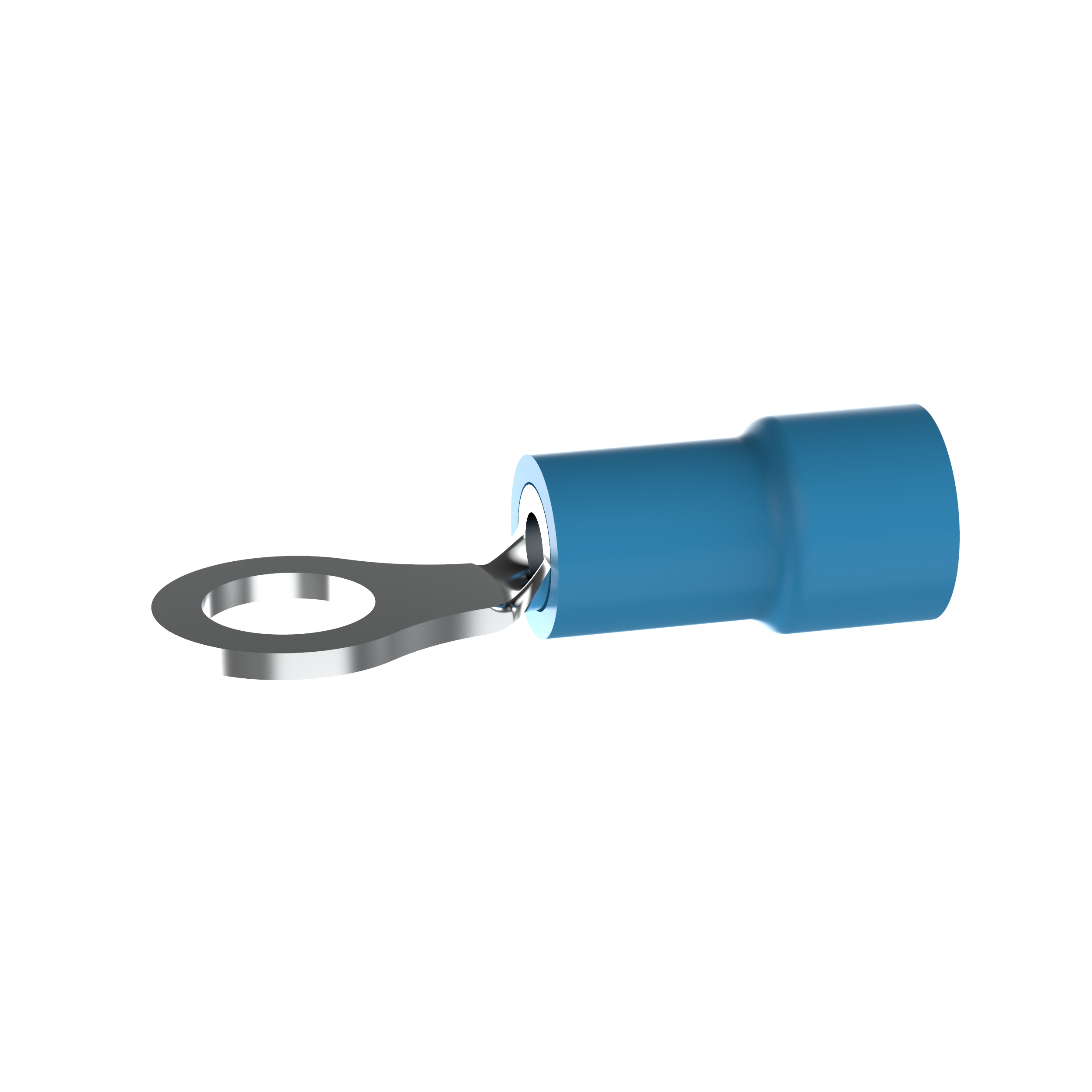

Image thumbnail 2

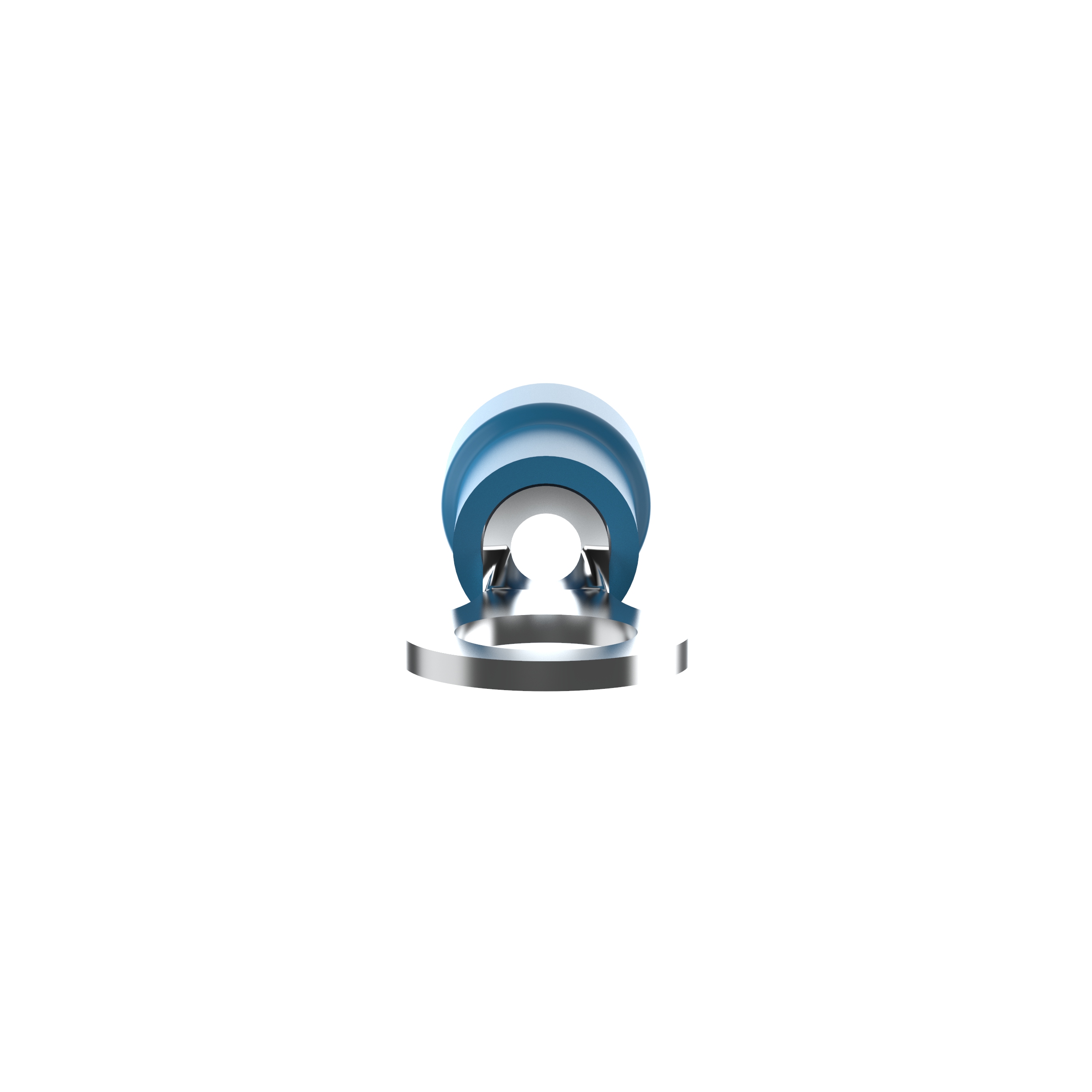

Image thumbnail 3
Email

PANDUIT PV14-10R-M TERMINAL RING #10STUD #16G- #14G VINYL INSULATED

Manufacturer: Panduit | Catalog # PV14-10R-M | Electrozad South Part # 56382
$265.85 /m (1000 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
2,454 available

For Delivery

Not in local stock *
Check another branch
Product Brochure
The PV14-10R-M Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.

Technical Information

Barrel Length
0.46 in
Barrel Type
Funnel
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
#10
TC Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Ring Terminal
Wire Size
#14 AWG

Packaging

Package Qty
1000

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983801213
Color
Blue
Finish
Tin-Plated
GTiN
00074983801213
Product UPC
07498380121

Dimensions

Overall Length
0.92 in
Width
0.31 in

Certifications & Compliance

Country of Origin
Mexico
