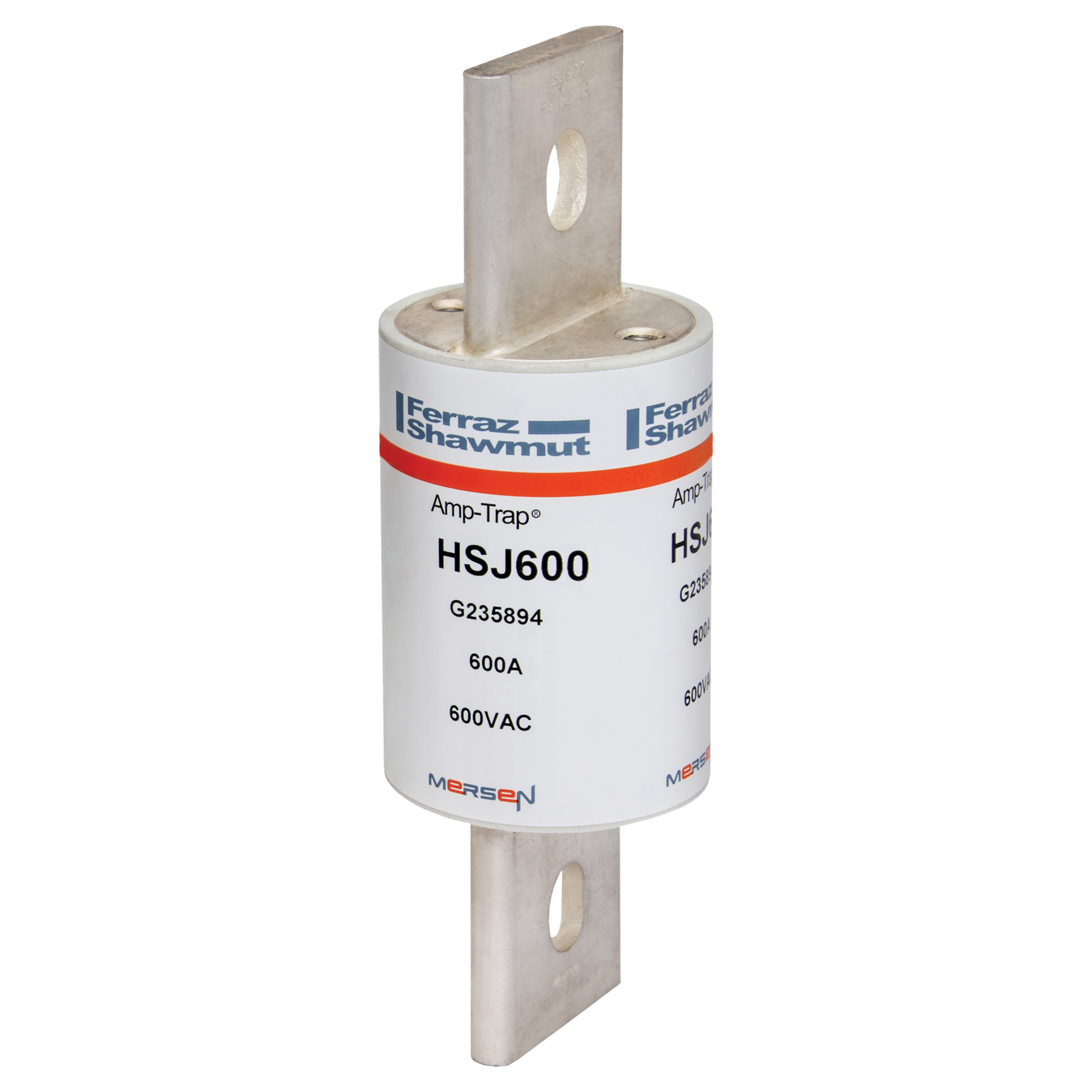

MERSEN HSJ600 FUSE CLASS J 600A 500VDC 600VAC HIGHSPEED AMPTRAP BLADE

Manufacturer: Ferraz Shawmut Mersen | Catalog # HSJ600 | Electrozad South Part # 56885
$684.95 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
The High Speed Class J (HSJ) combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.

Technical Information

Amperage
600 A
Applications
For Control Panels Electronic Motor Controllers Phase Controllers Drives Soft-Starters Solid State Relays
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class J
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
High Speed

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001329754
Class
J
GTIN
10782001329751
Product UPC
78200132975
Weight
3.02 lb

Dimensions

Diameter
2.5 in
Length
8 in
