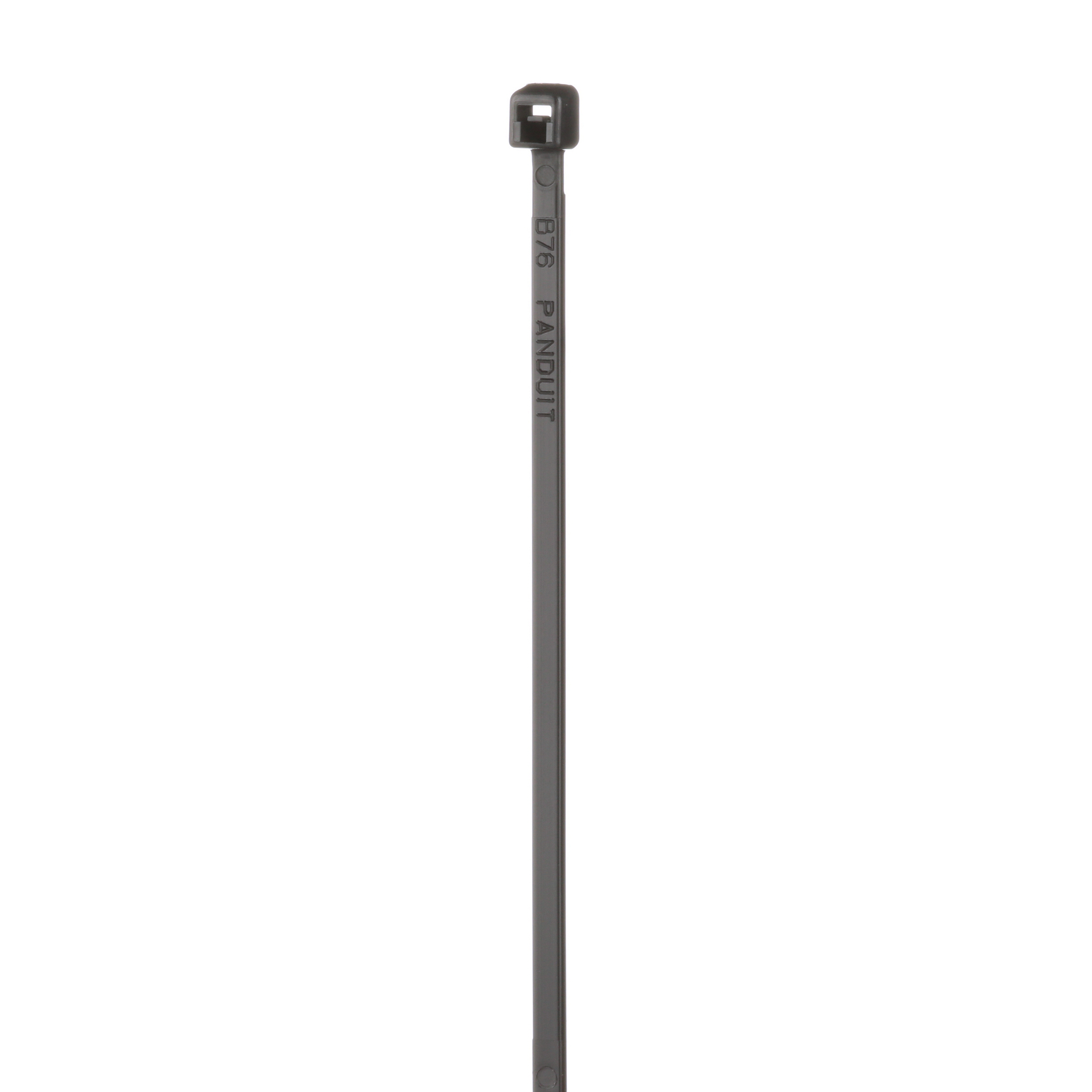

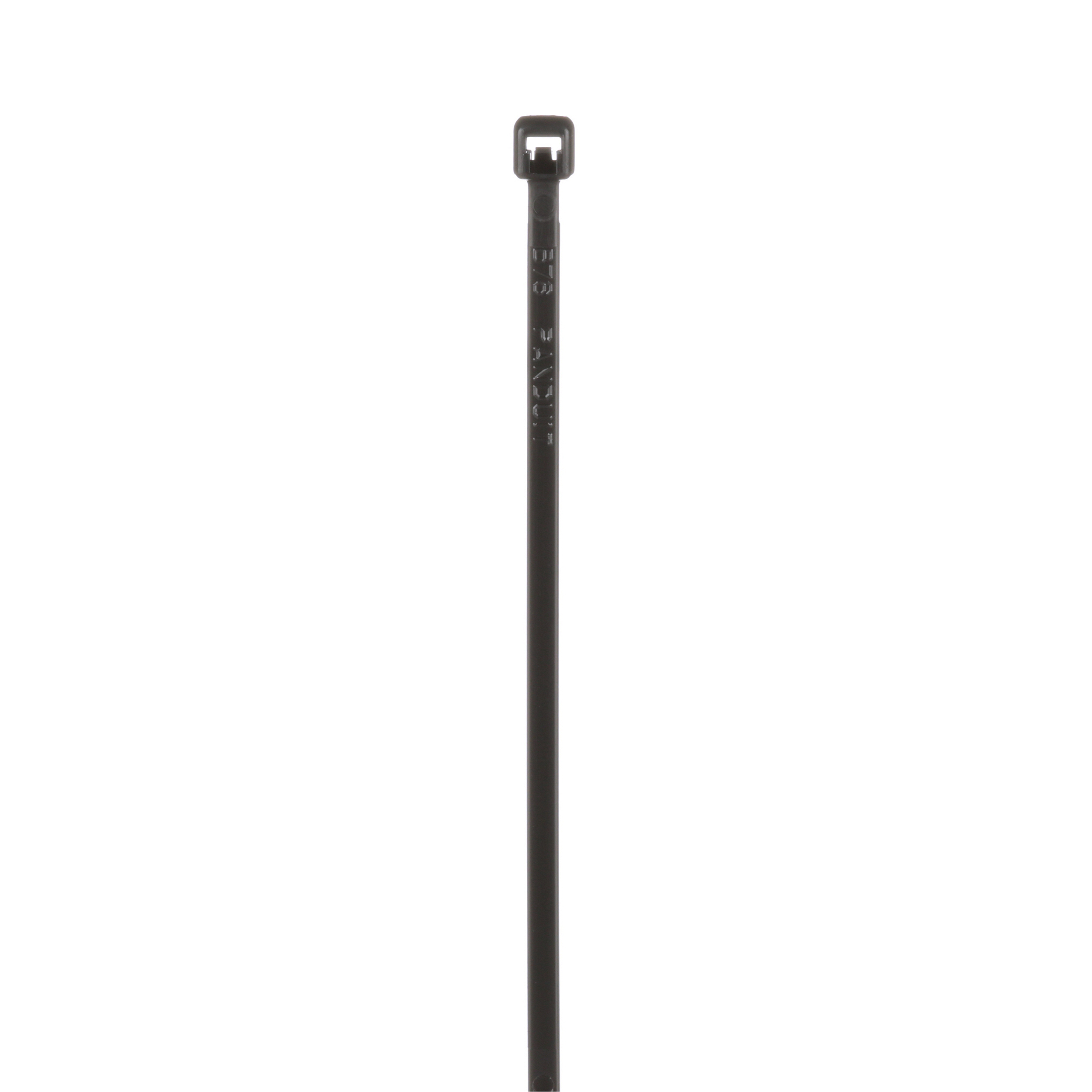

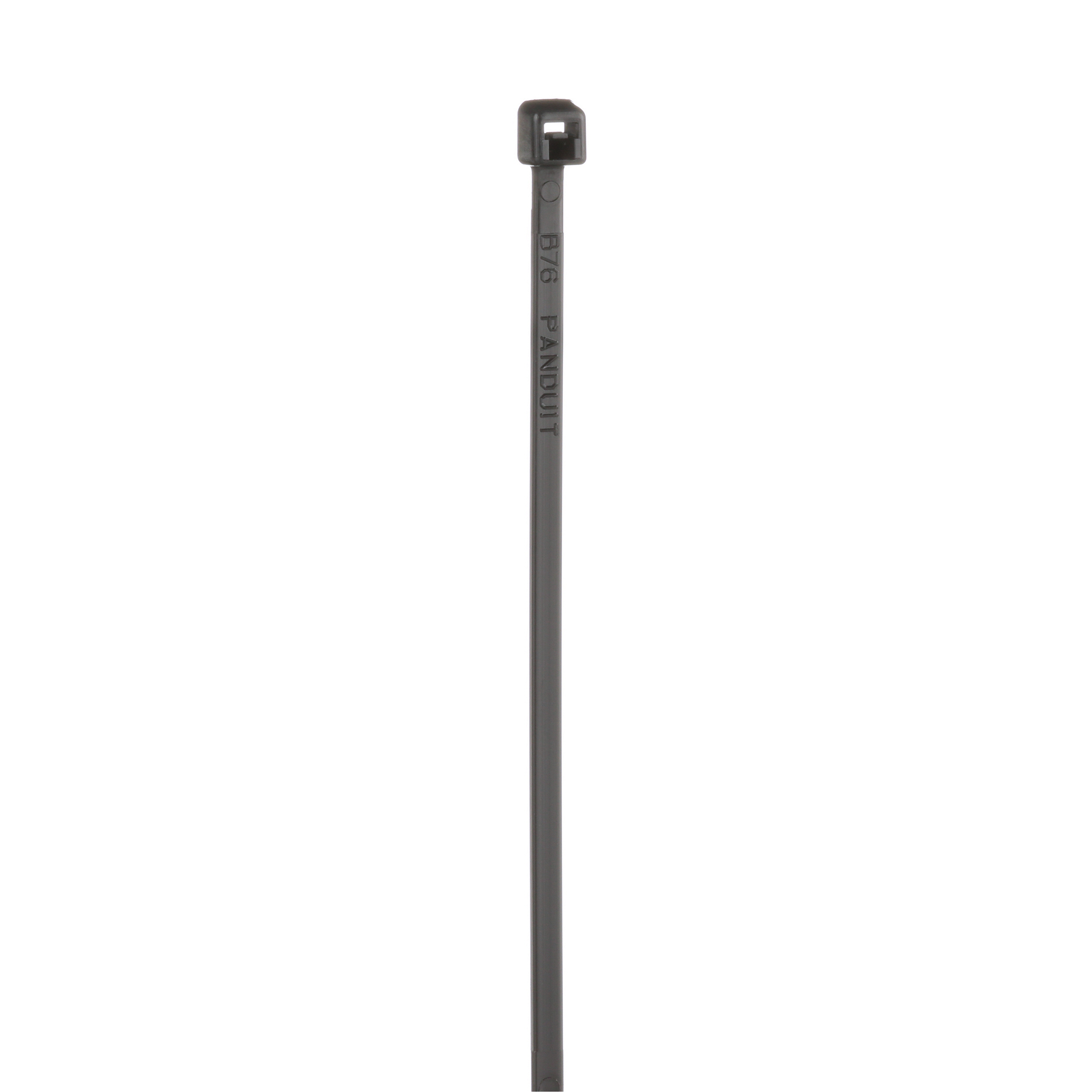

Product image for PANDUIT PLT1M-C0 PAN-TY 3.9"LONG TS MINIATURE LOCKING CABLE TIE .098"WIDE BLACK 18LBS-MLS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT PLT1M-C0 PAN-TY 3.9"LONG TS MINIATURE LOCKING CABLE TIE .098"WIDE BLACK 18LBS-MLS

Manufacturer: Panduit | Catalog # PLT1M-C0 | Electrozad South Part # 56916
$25.22 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Pan-Ty® Miniature cross section locking tie made of weather resistant nylon 6.6. One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.

Technical Information

Applications
General Use
Body Thickness
0.043 in
Body Width
0.098 in
Bundle Diameter
22 mm
Material
Nylon 6.6/Polyamide
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Tensile Strength
80 N
Type
Miniature, Weather-Resistant, Internal Toothing, Plenum, Locking

Packaging

Package Qty
100
Standard Packaging Qty
100/Pack

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Ty

General Product Info

12-Digit UPC
074983540563
Color
Black
Environment
Indoor,Outdoor
GTIN
00074983540563
Product UPC
07498354056

Dimensions

Length
3.9 in
Overall Length
99 mm
Thickness
1.1 mm
Width
2.5 mm

Certifications & Compliance

Country of Origin
Malaysia
