HUB HBL460MIFS2W DISC 60AMP FUSED

Manufacturer: Hubbell Wiring Devices | Catalog # HBL460MIFS2W | Electrozad South Part # 57699
$3,315.44 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual

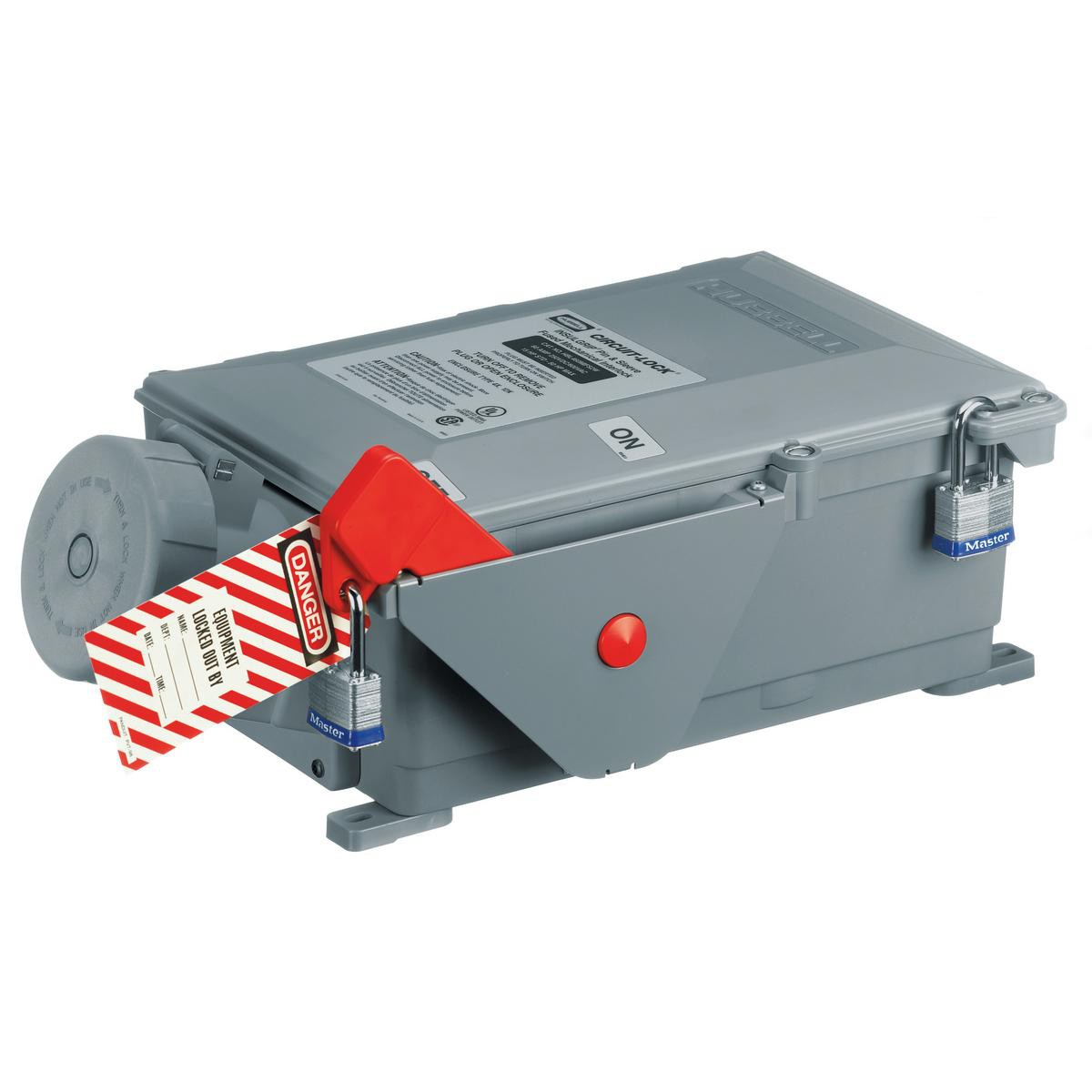

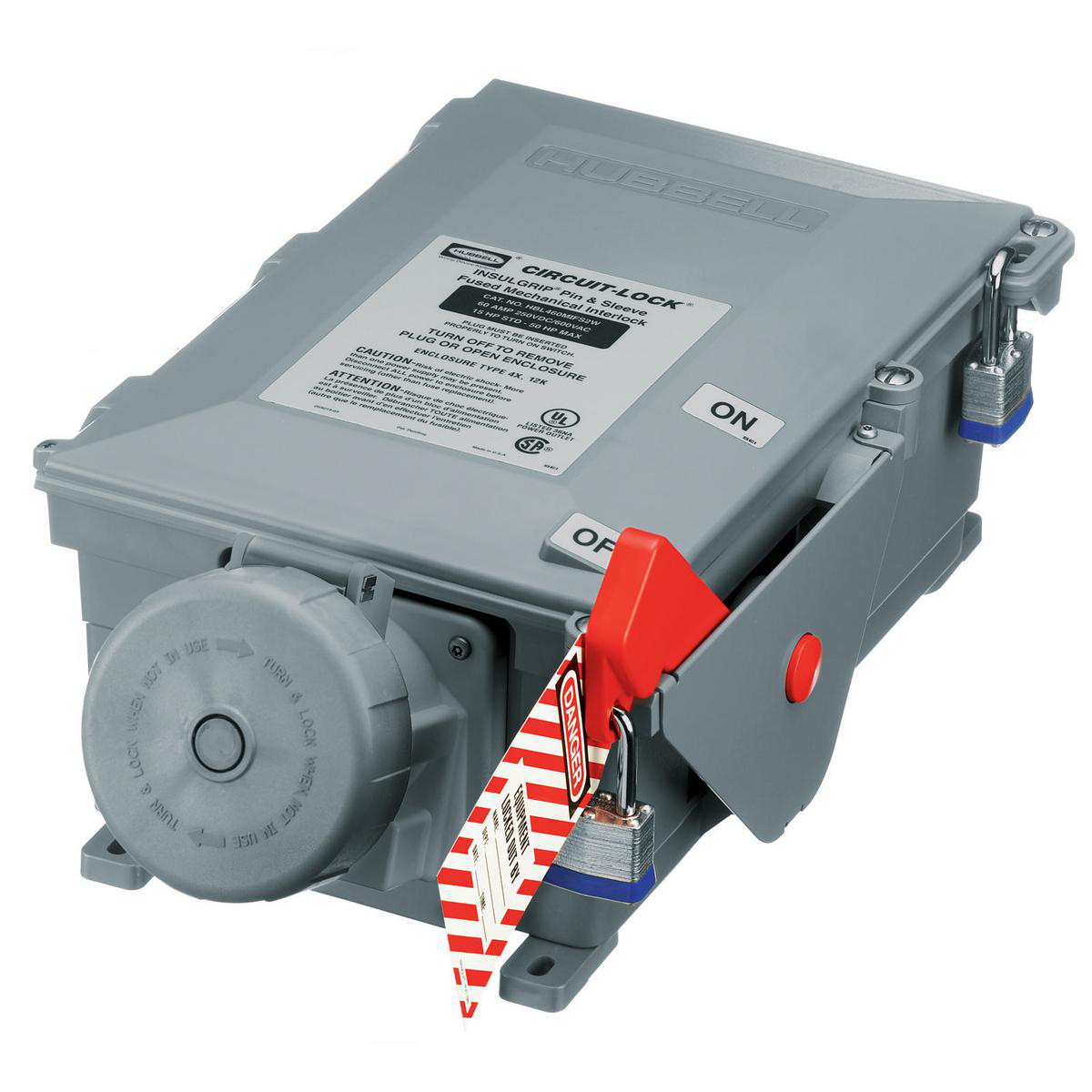

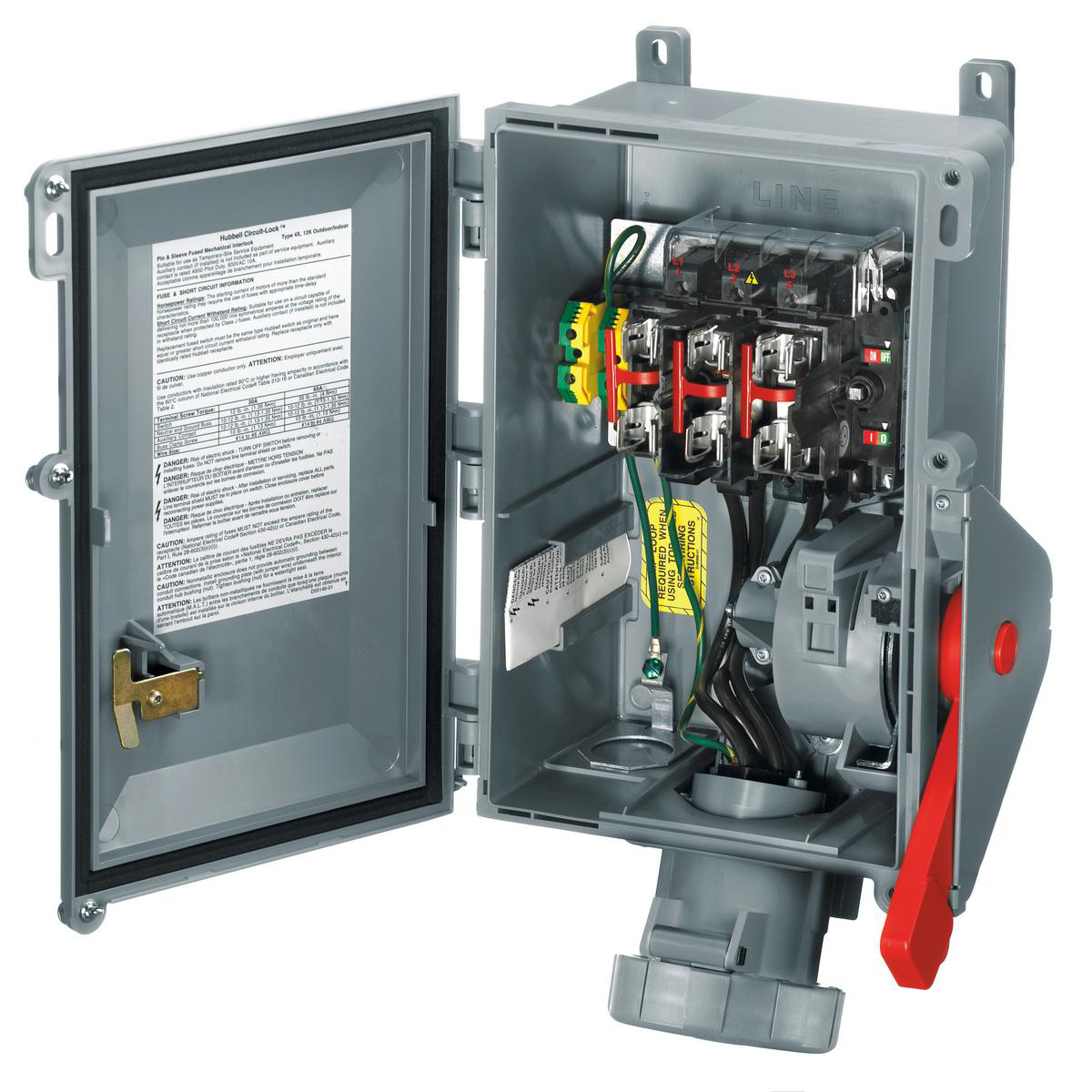

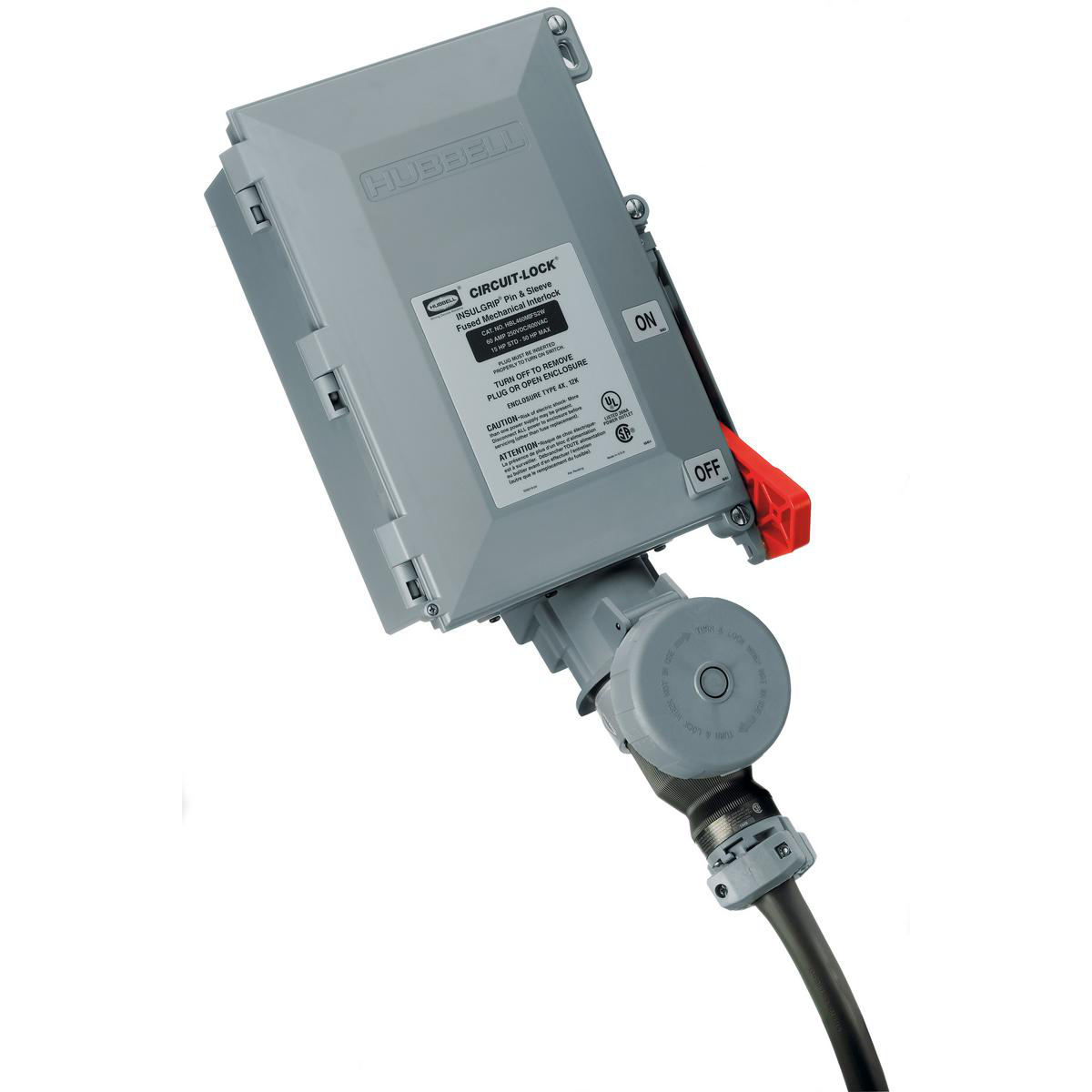

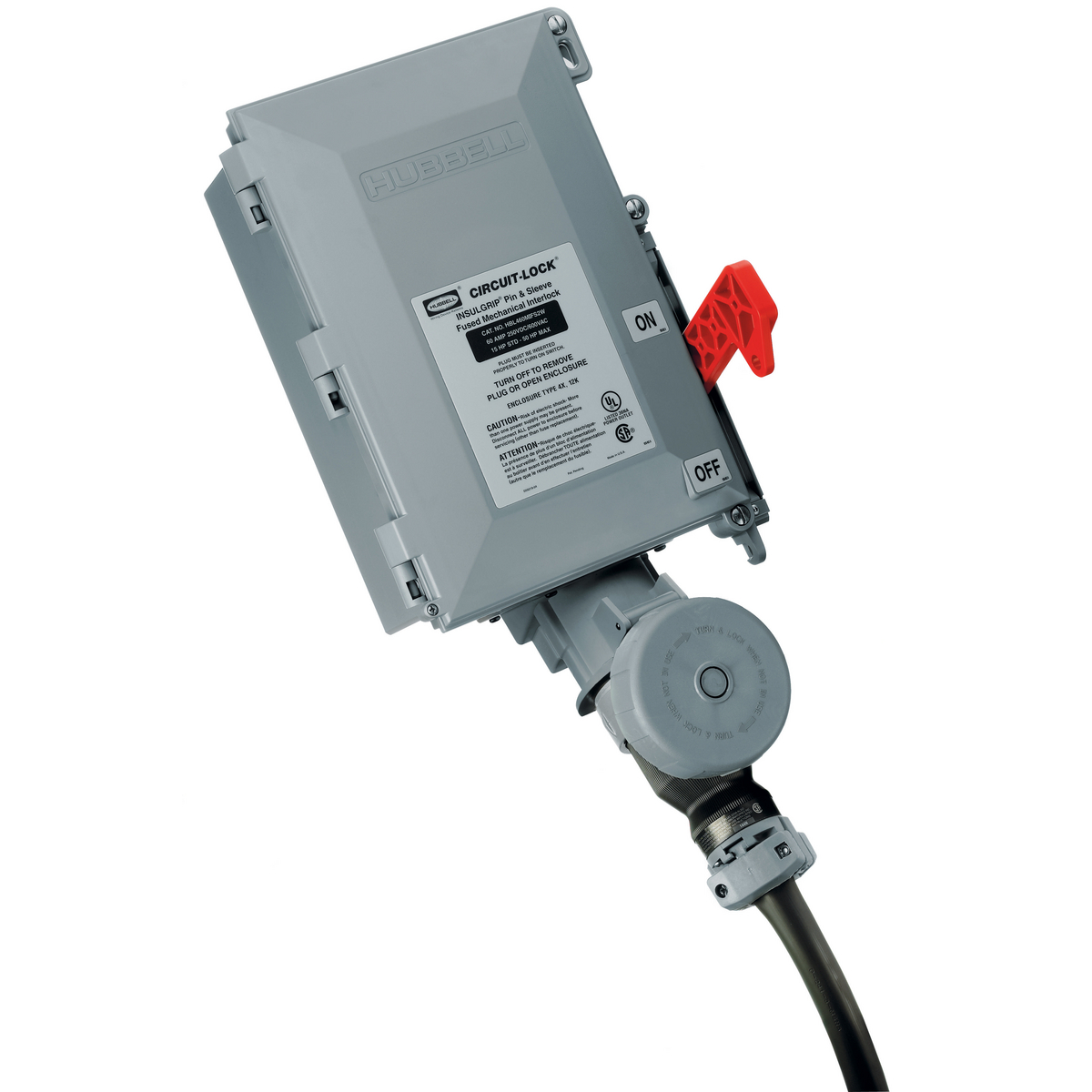

INSULGRIP® fused watertight mechanical interlock. This device provides on/off switched control of a plug connected load and includes an interlocking feature to prevent the plug from being disconnected while the receptacle is energized. The switch cannot be turned ON until the plug is inserted properly.

Technical Information

Amperage
60 A
Applications
High Ampacity Connections
Conductor Size
8 - 2 AWG
Current
60 A
Grounding
Grounding
Material
Composite
Mounting Type
Screw
Number of Phases
1,3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
Canada,For US,UL
TC Connection
Pressure Plate
Type
Fused, Mechanically Interlocked, Single
Voltage
250 V
Wattage
36000 W
Wire Count
4
Wire Size
8 - 2 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585514901
Color
Gray
Environmental Conditions
Watertight
GTIN
00783585514901
Product Series
Fused Interlocks
Product UPC
78358551490
Weight
18.75 lb

Dimensions

Height
9 in
Length
20.400 in
Width
12.4 in

Certifications & Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Poland
