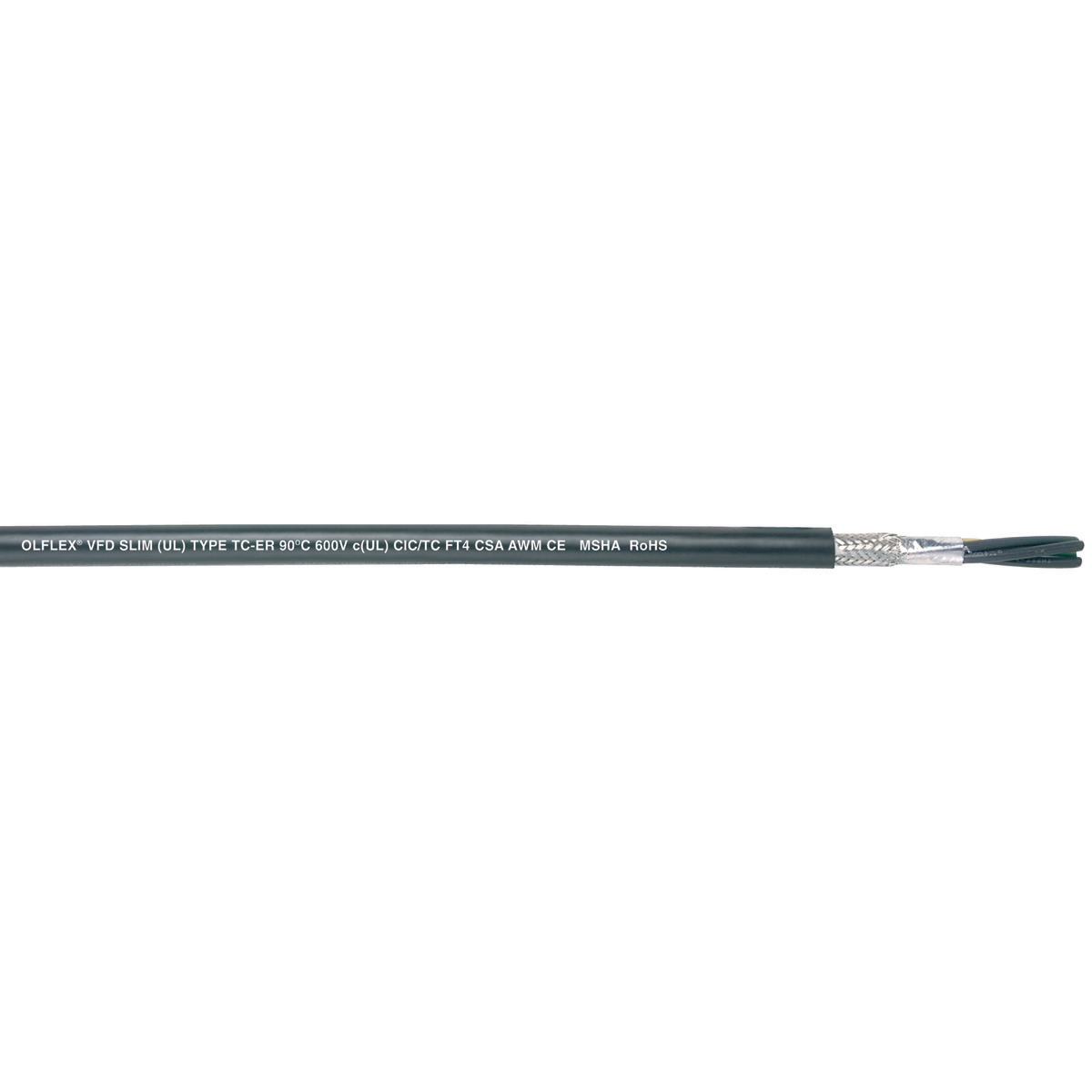

OLFLEX 761004 WIRE CUTS #10G 4 CONDUCTOR REDUCED DIAMETER MOTOR CABLE SHIELDED VFD SLIM 600V TPE BLACK

Manufacturer: Olflex Wire Cables | Catalog # 761004 | Electrozad South Part # 57726
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
..LFLEX VFD Slim is a reduced-diameter shielded motor cable for VFD Drives. It is designed with ...Lapp Surge Guard... semi-conductive material to hold up to nonlinear power distortions associated with VFD drives. This special material smooths out the stranded copper and disperses increases in voltage caused by wave reflection, harmonics, in-rush current, and spikes to prevent conductor and cable failure.

Technical Information

Bend Radius
7.5 X Cable Diameter
Conductor Material
Tin-plated Copper
Connector Material
Tinned Copper
Gauge
10 AWG
Insulation Material
Lapp Surge Guard
Operating Temperature
-25 degrees C
Stranding
Class 5 Fine Wire
Temperature Rating
-25 to 105 degrees C
Type
Round, Flexible
Voltage
1000 V

Manufacturer Information

Brand
Lapp
Sub Brand
ÖLFLEX®

General Product Info

Color
Black
Jacket Color
Black
Jacket Material
Thermoplastic Polymer
