AL JKTD XP FTG HUB 3/4 IN .725-.885

Manufacturer: ABB | Thomas & Betts | Catalog # STX075-465 | Electrozad South Part # 58883
$10,155.39 /c (100 pc)
pc
Log in or register to view your price, purchase history, and more!
22 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

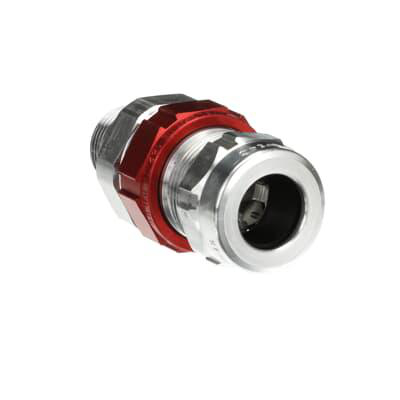

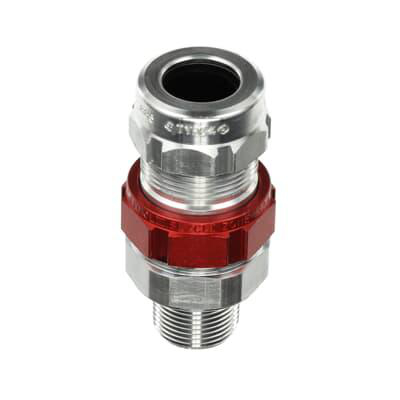

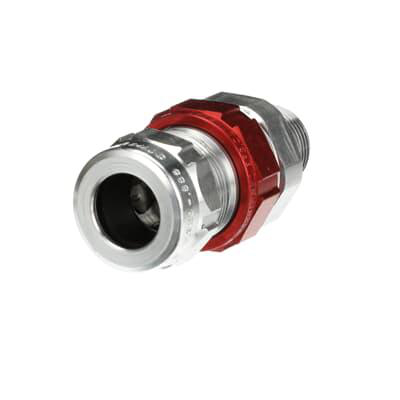

Star Teck hazardous location aluminum jacketed cable fitting. Hub size of 3/4 inch. Range over jacket from 0.725 - 0.885 inch.

Technical Information

Applications
For Hazardous Locations
Material
Aluminum
Size
3/4 in
Standard
CSA 23086,UL E82038
Thread Type
NPT
Trade Size
3/4 in
Type
Straight, Shock Resistant

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210904740
Color
Red,Silver
Finish
Silver
GTIN
05414363135340
Product UPC
78621090474
Overview
  • A line of liquid and putty sealants was also developed at the same time, eliminating the need for the cement sealants used up to this point.
  • Working with engineers from the Canadian petrochemical, oil and gas industries, Thomas & Betts then introduced the STAR TECK XP fitting.
  • With an easy-to-fill, integral sealing chamber and a disconnectable design requiring minimal cable preparation, this fitting became the benchmark for ease of installation in hazardous environments.
