MERSEN A480T2E FUSE E-RATED 2E 4.8KV POTENTIAL TRANSFORMER FUSE | Electrozad South

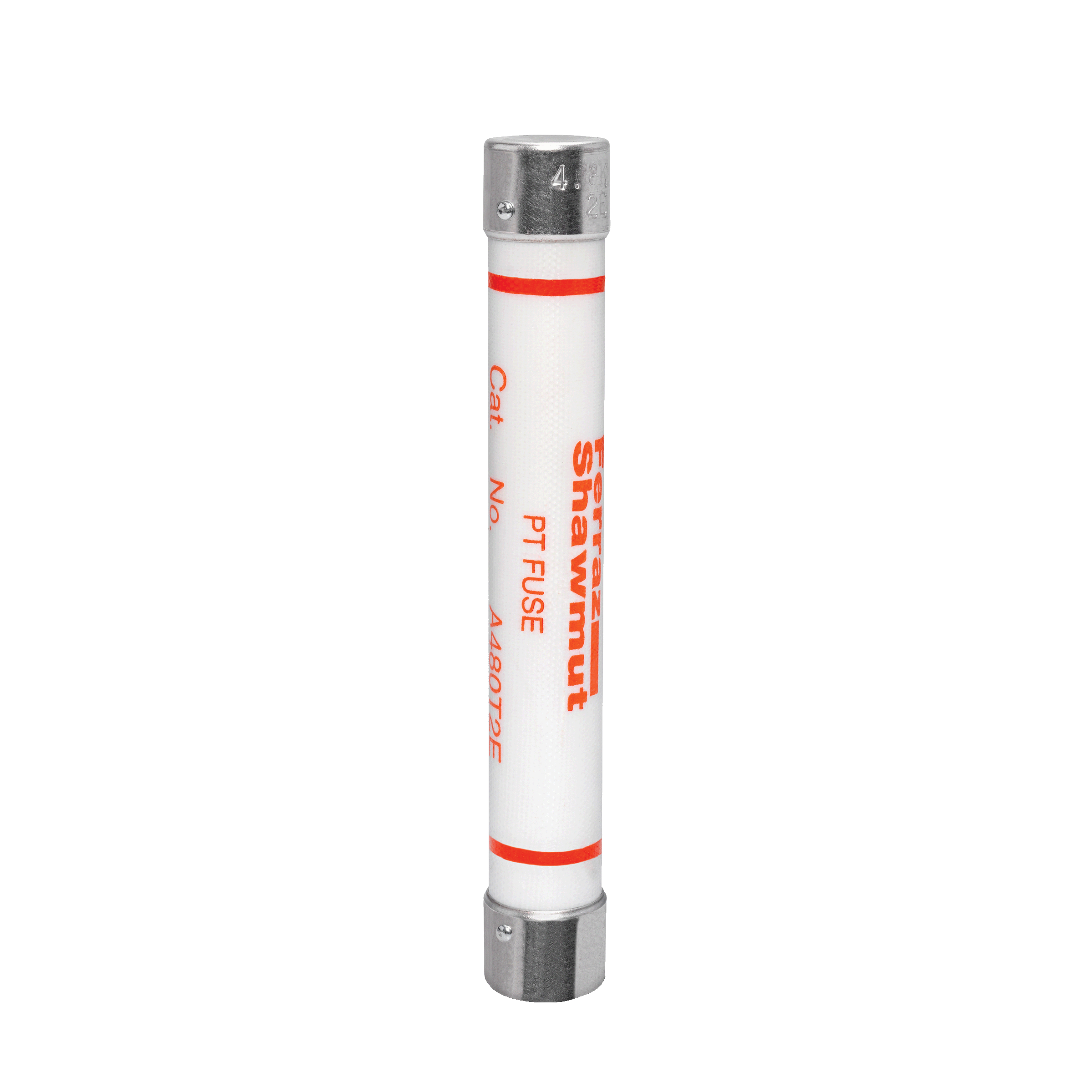

Product image for MERSEN A480T2E FUSE E-RATED 2E 4.8KV POTENTIAL TRANSFORMER FUSE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN A480T2E FUSE E-RATED 2E 4.8KV POTENTIAL TRANSFORMER FUSE

Manufacturer: Ferraz Shawmut Mersen | Catalog # A480T2E | Electrozad South Part # 58943
$440.44 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 5A

Technical Information

Amperage
2 A
Applications
For Primary Protection for Potential Transformers or Control Power Transformers
Connection Type
Ferrule
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
50 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
4800 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
E-Rated
Voltage
4800 V

Packaging

Package Qty
2

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001800512
Construction
Glass Melamine
GTIN
30782001800513
Product UPC
78200180051
Weight
0.4 lb

Dimensions

Diameter
0.81 in
Length
5.63 in

Certifications & Compliance

Country of Origin
Mexico
