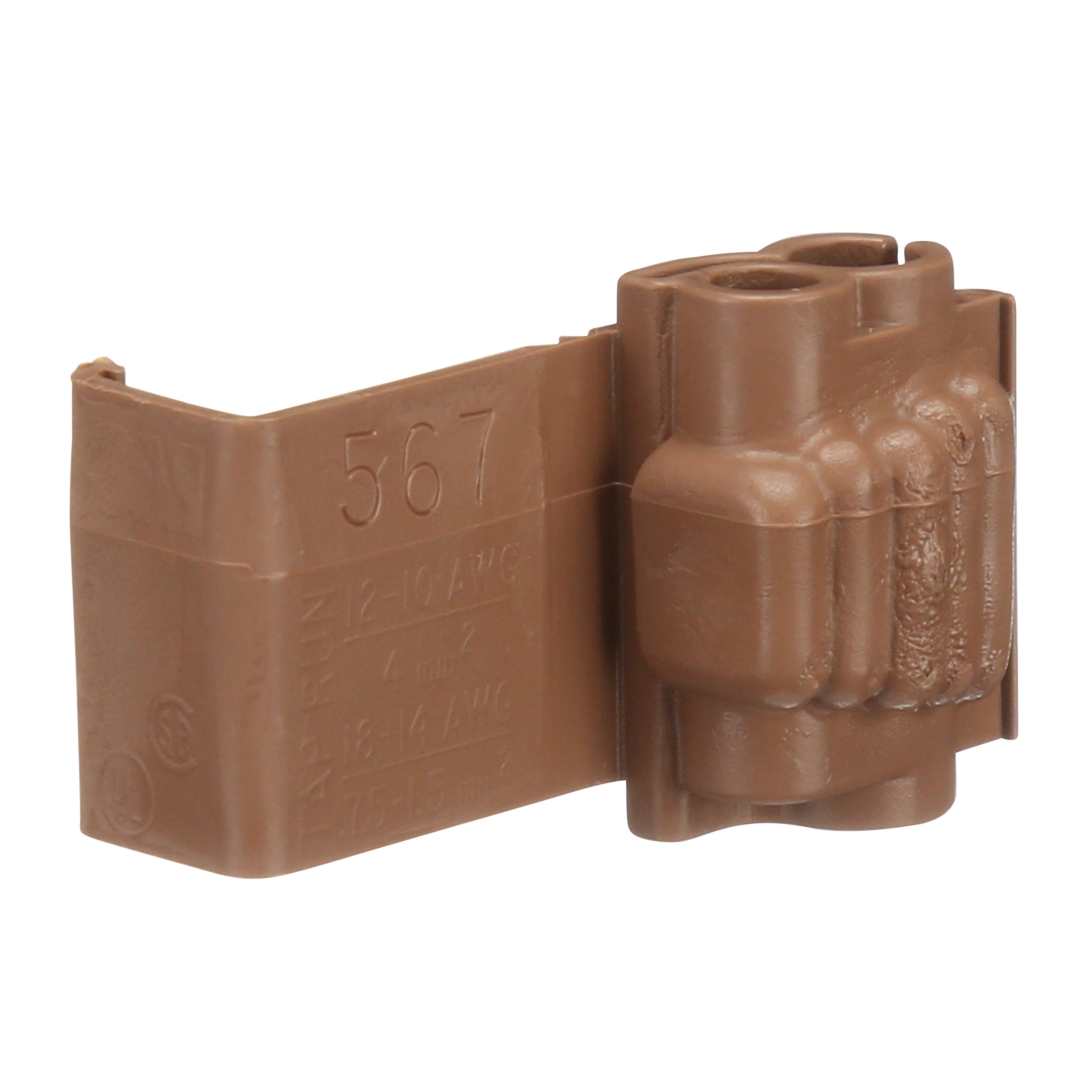

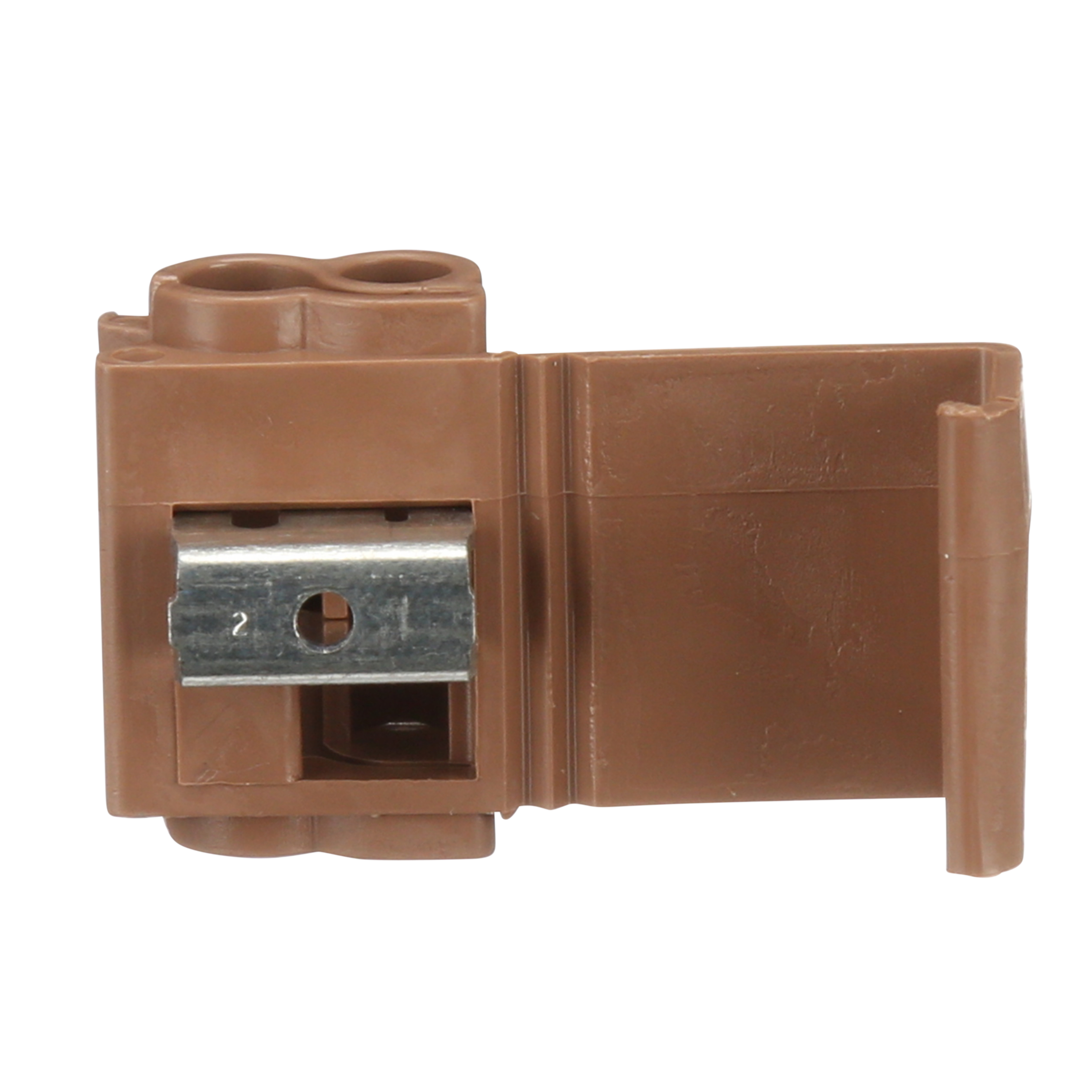

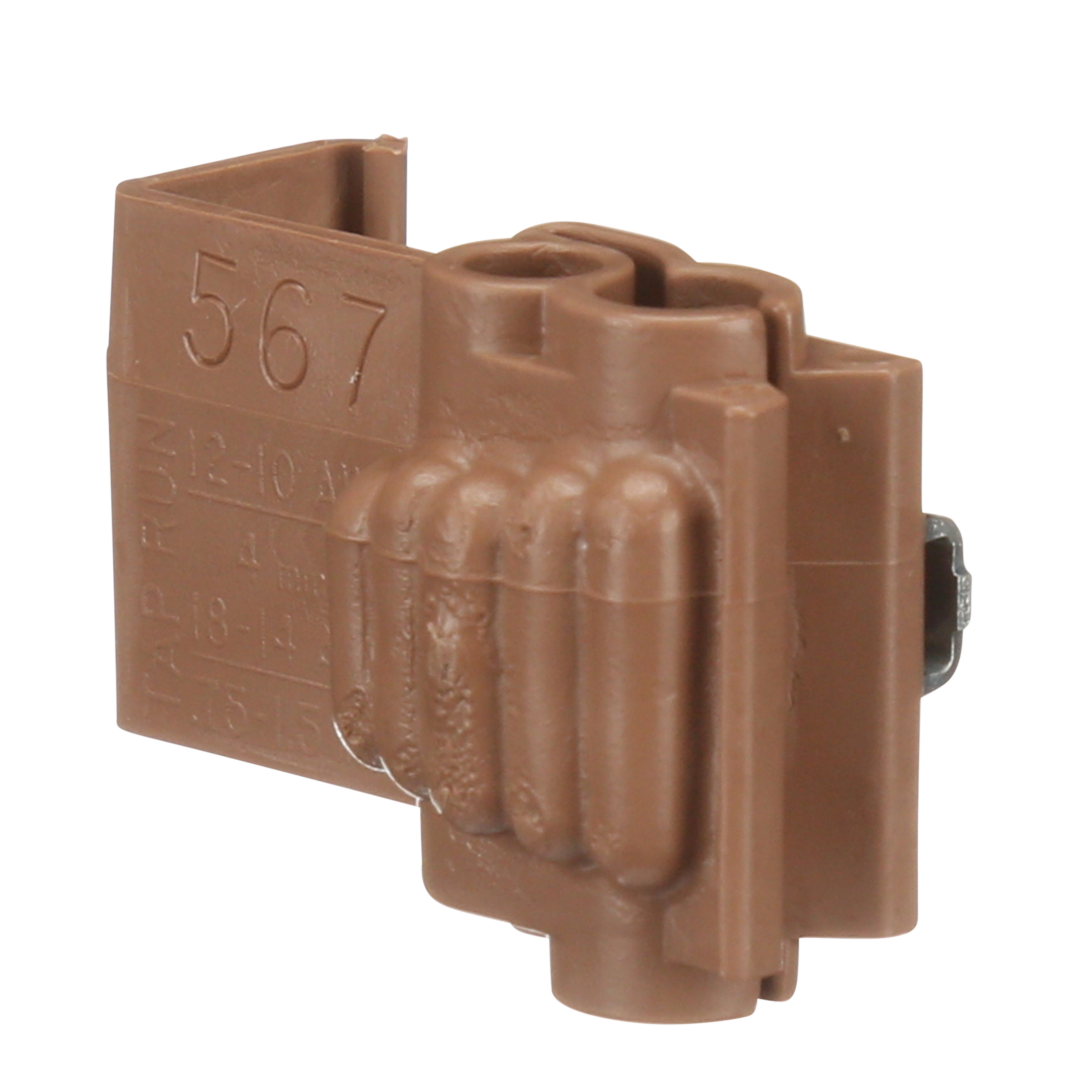

MMM 567-BOX 7000057710 CONNECTOR INSULATOR BROWN 18-14AWG 100/BX

Manufacturer: 3M | Catalog # 567-BOX | Electrozad South Part # 59848
$0.90 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Use 3M™ Scotchlok™ Electrical IDC 567 to electrically connect a wire end (tap) to a through (run) wire and insulate the connection. It has a maximum insulation O.D. diameter of 0.145 inches (3.68 mm), and a tap of 0.190 inches (4.82 mm). This product also features a run and operating temperature of 221°F (105°C). The suggested application tool for the 3M™ Scotchlok™ Electrical IDC 567 is the 3M™ Scotchlok™ Crimping Tool E-9BM.

Technical Information

Cable Size
18 - 14 AWG Tap, 12 - 10 AWG Run
Conductor Size
10 AWG
Connection Type
Run And Tap
Flame Retardant
Yes

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
054007148876
Color
Brown
GTiN
10054007148873
Product UPC
05400714887
