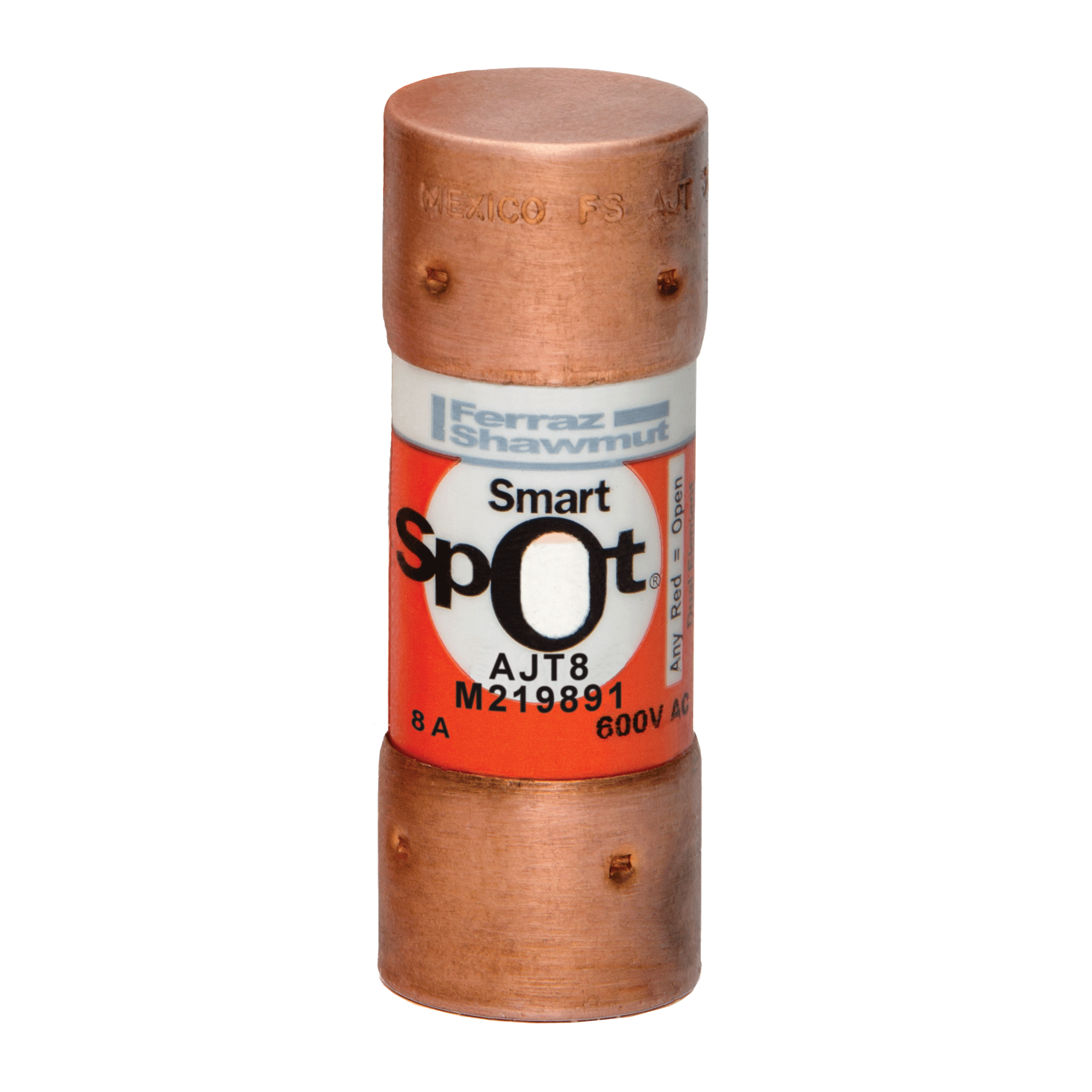

MERSEN AJT8 FUSE HRCI-J 8A 600V 600VAC 500VDC SMART SPOT INDICATOR CLASS J TIME DELAY

Manufacturer: Ferraz Shawmut Mersen | Catalog # AJT8 | Electrozad South Part # 6026
$15.04 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads ... yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT...s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.

Technical Information

Amperage
8 A
Applications
For Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-up, Bus Duct, Load Centers
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class J
Indicator
SmartSpot®
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap® 2000

General Product Info

12-Digit UPC
782001963095
Class
J
Construction
Fiberglass
GTIN
30782001963096
Product UPC
78200196309
Weight
0.097 lb

Dimensions

Diameter
0.81 in
Length
2.25 in
