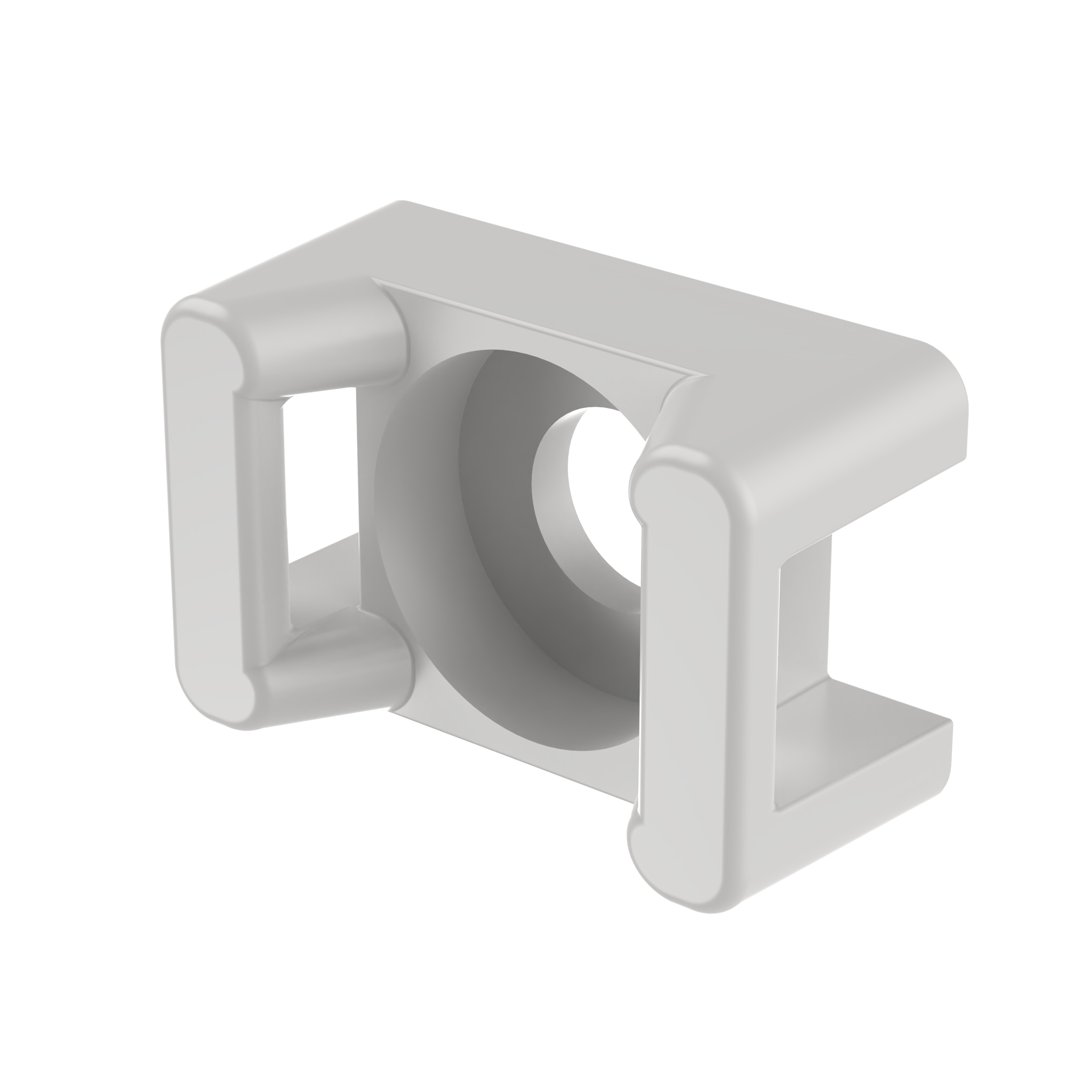

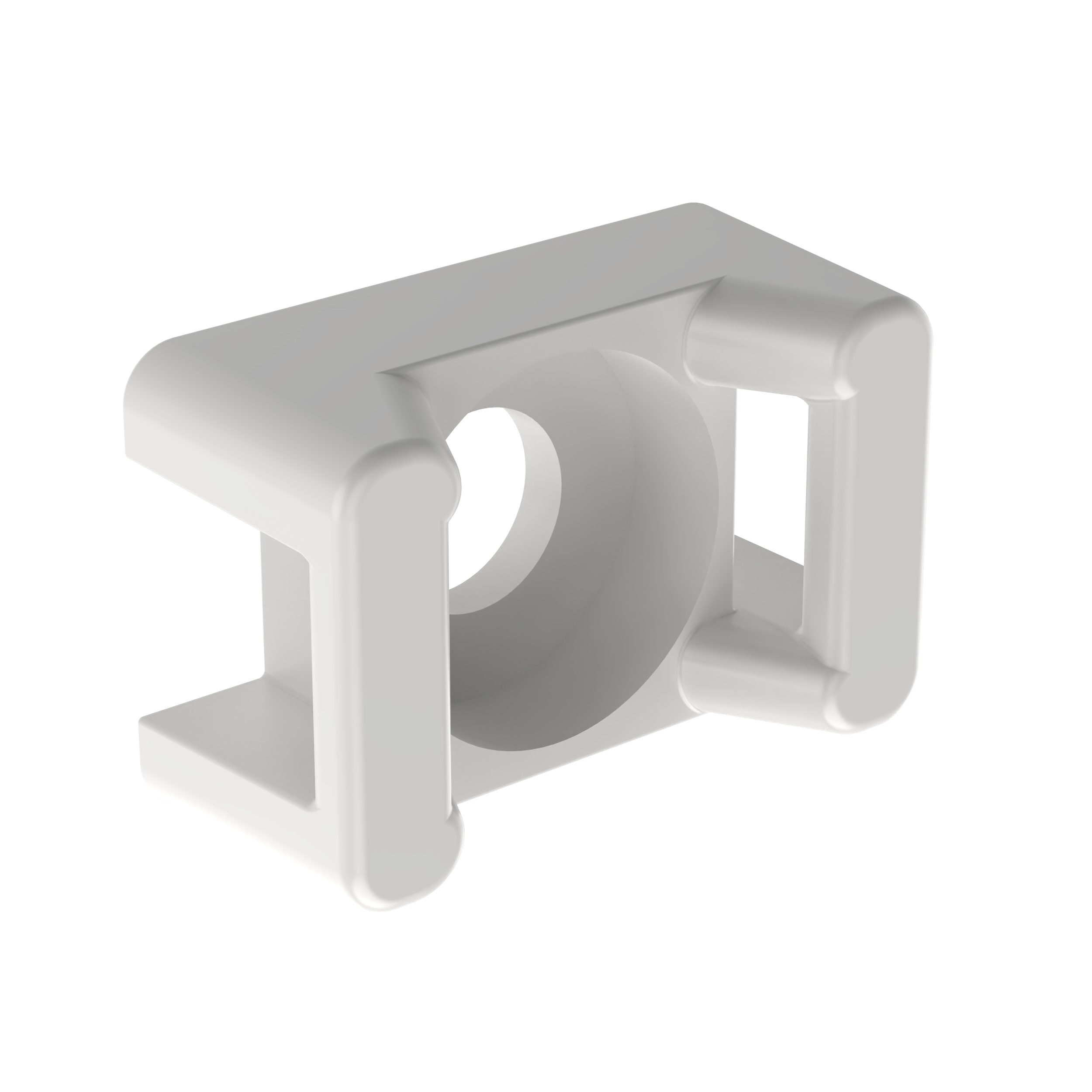

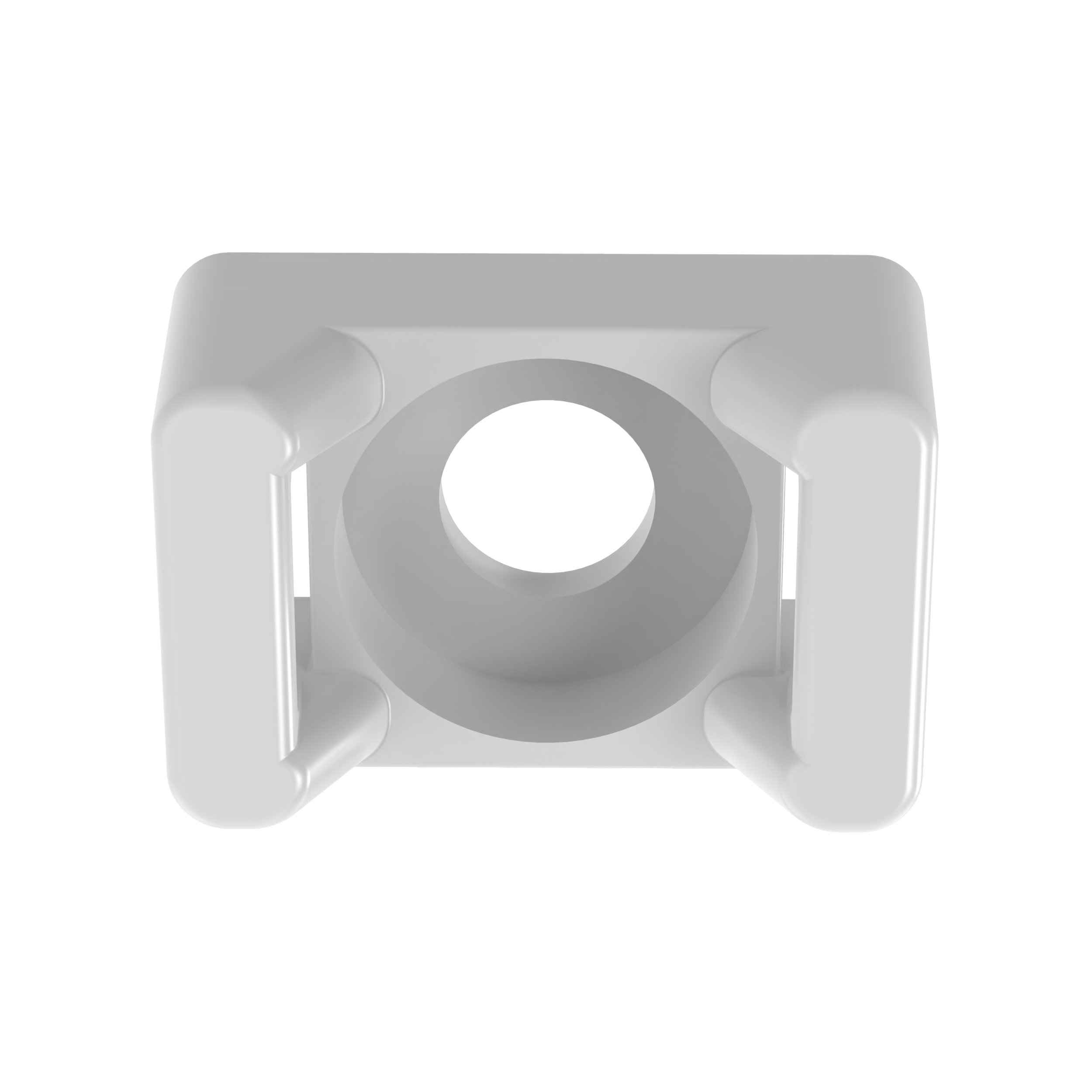

Product image for PANDUIT TM2S8-C CABLE TIE MT #8 SCR
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT TM2S8-C CABLE TIE MT #8 SCR

Manufacturer: Panduit | Catalog # TM2S8-C | Electrozad South Part # 60573
$64.60 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Panduit TM2S8-C screw applied cable tie mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. Suitable for miniature, intermediate and standard cross-section cable ties. Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They are 0.43" (10.9 mm) wide, are natural in color and come in packages of 100.

Technical Information

Material
Nylon
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Screw Size
#8 (M4)
Type
Cable Tie Mount

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983582204
Color
Natural
Environment
Indoor
GTIN
00074983582204
Product UPC
07498358220

Dimensions

Height
0.27 in
Overall Length
16 mm
Width
10.8 mm

Certifications & Compliance

Country of Origin
USA
