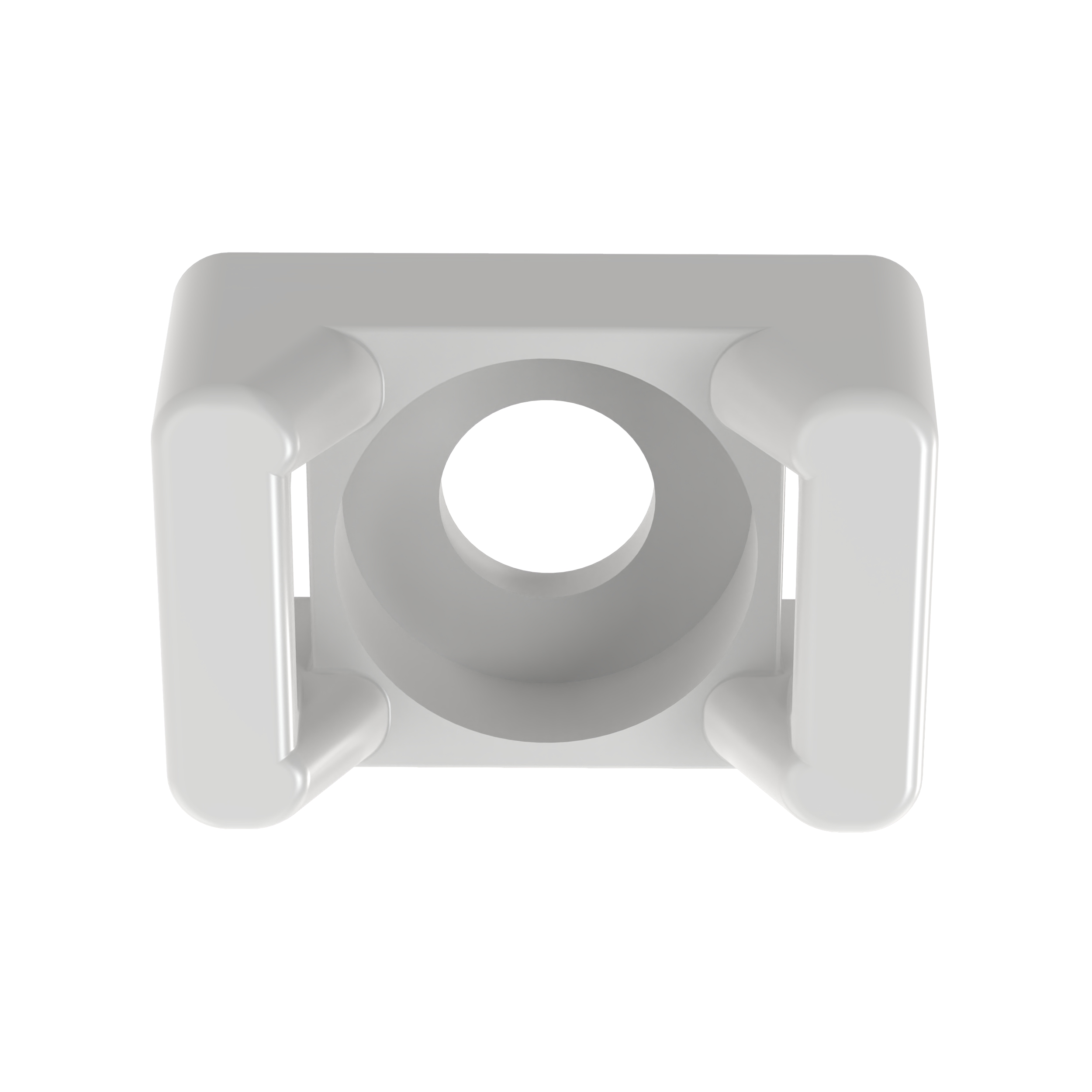

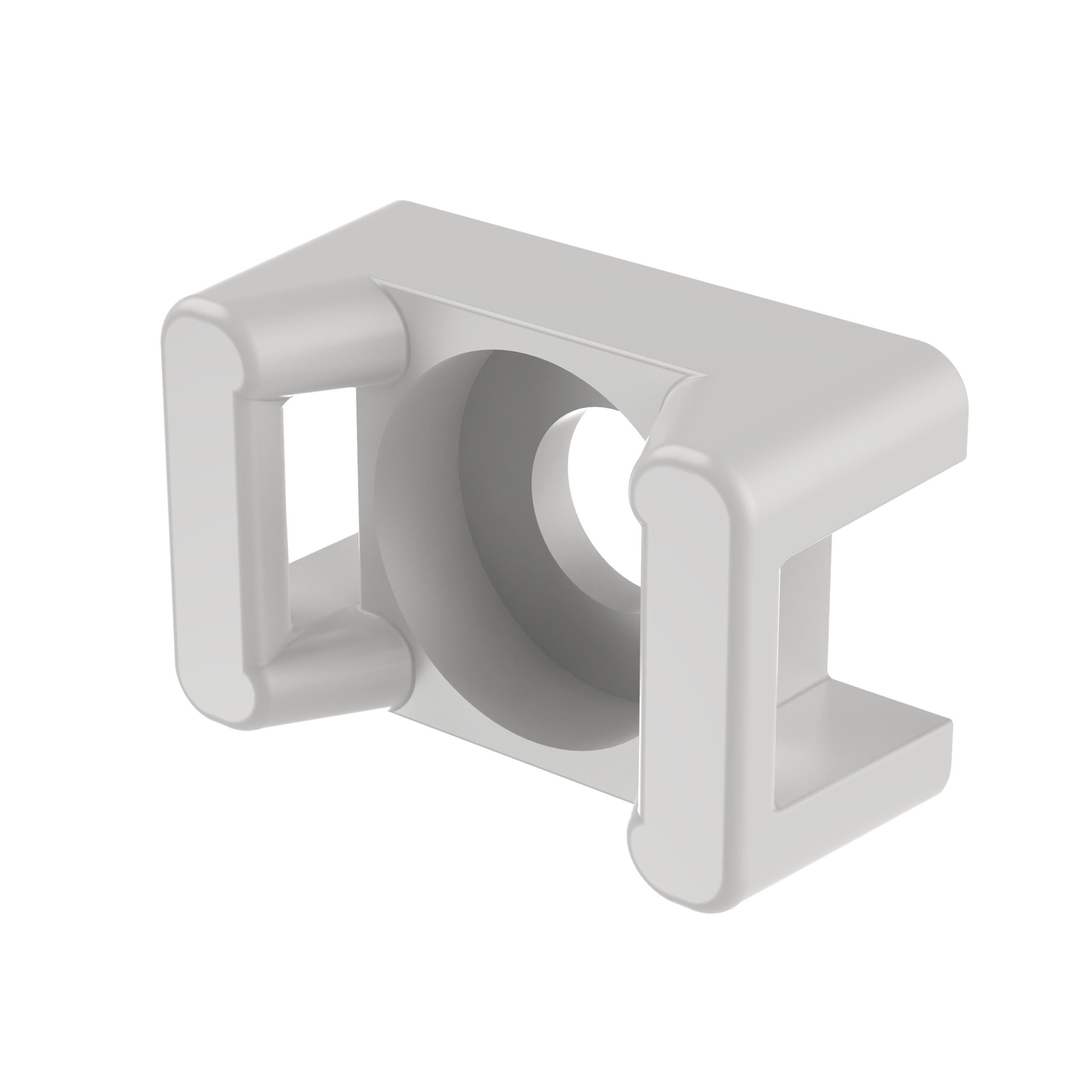

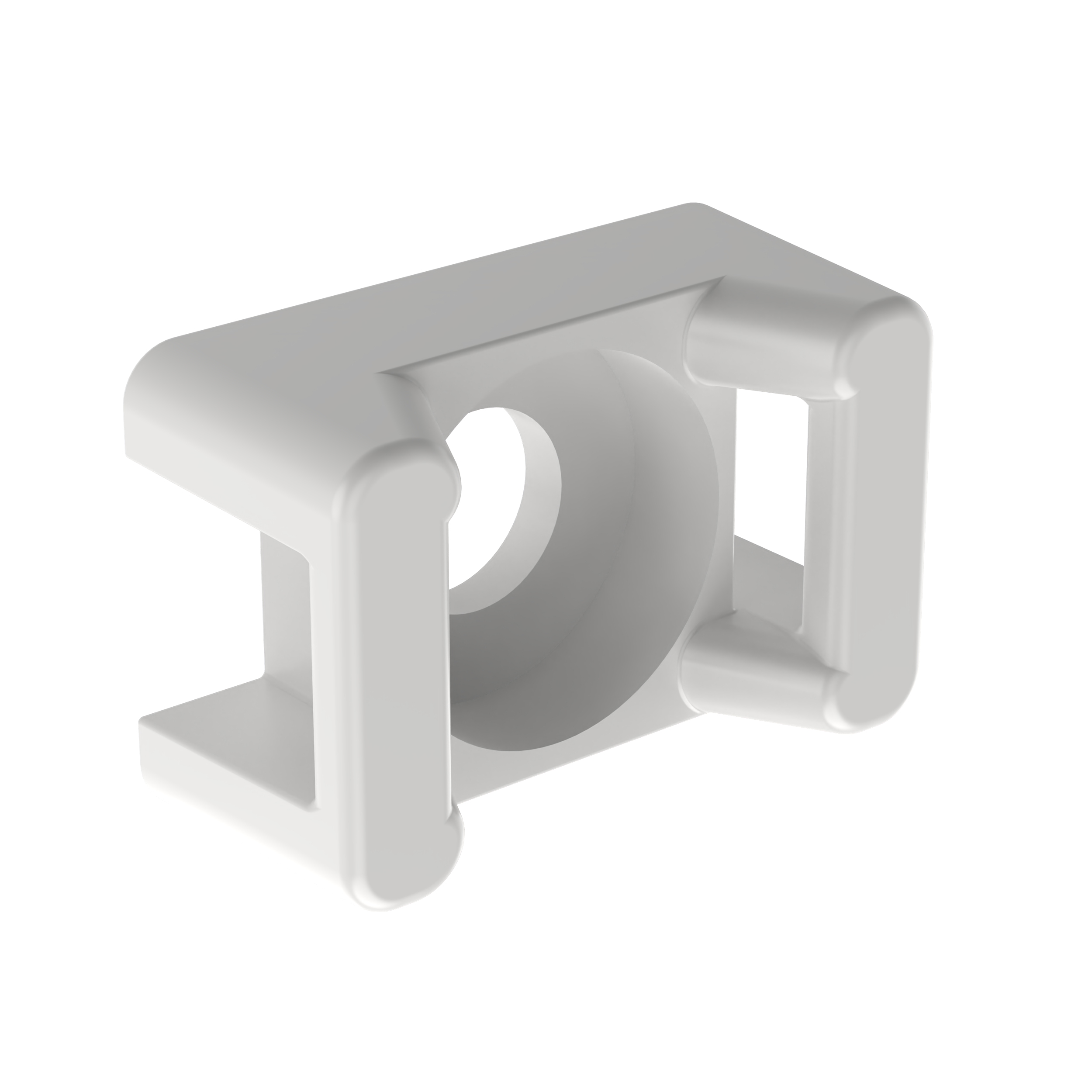

Product image for PANDUIT TM2S8-M MOUNT .58"L M I S NYL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT TM2S8-M MOUNT .58"L M I S NYL

Manufacturer: Panduit | Catalog # TM2S8-M | Electrozad South Part # 60612
$347.71 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
830 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
Panduit TM2S8-M Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. For indoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Nylon 6.6. They are 0.43" (10.9 mm) wide, are natural in color and come in packages of 1000.

Technical Information

Applications
Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
Cable Size
NA
Cable Type
Cable Tie Mount
Material
Nylon
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Operating Temperature
185 degrees F
Screw Size
#8 (M4)
Type
Cable Tie Mount

Packaging

Package Qty
1000

Manufacturer Information

Brand
Panduit
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983582211
Color
Natural
Environment
Indoor
GTiN
00074983582211
Product UPC
07498358221

Dimensions

Height
0.27 in
Overall Length
0.63 in
Width
0.43 in

Certifications & Compliance

Country of Origin
USA
