Pan-Term® PV10-10LF-L Fork Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50

Manufacturer: Panduit | Catalog # PV10-10LF-L | Electrozad South Part # 62004
$125.04 /c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

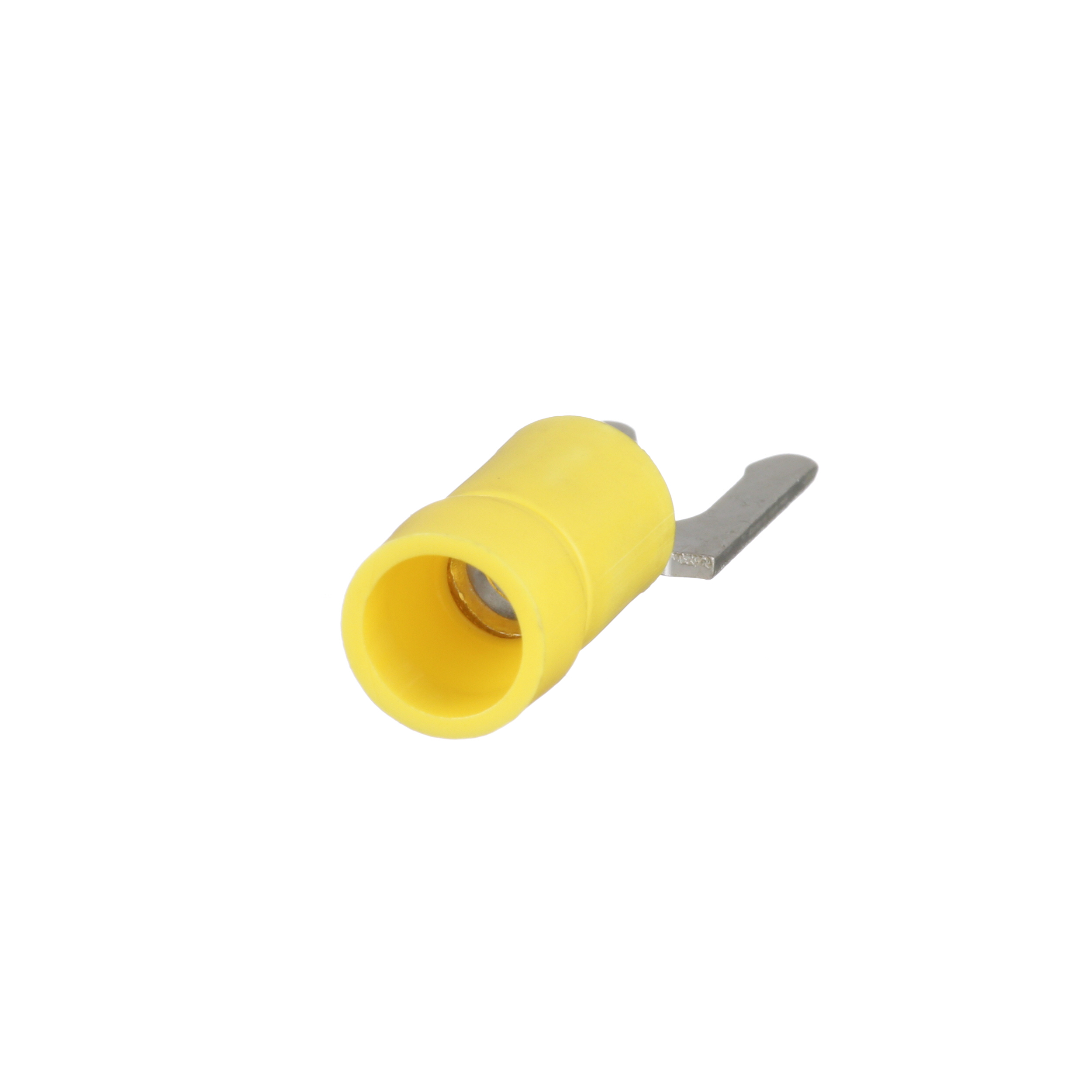

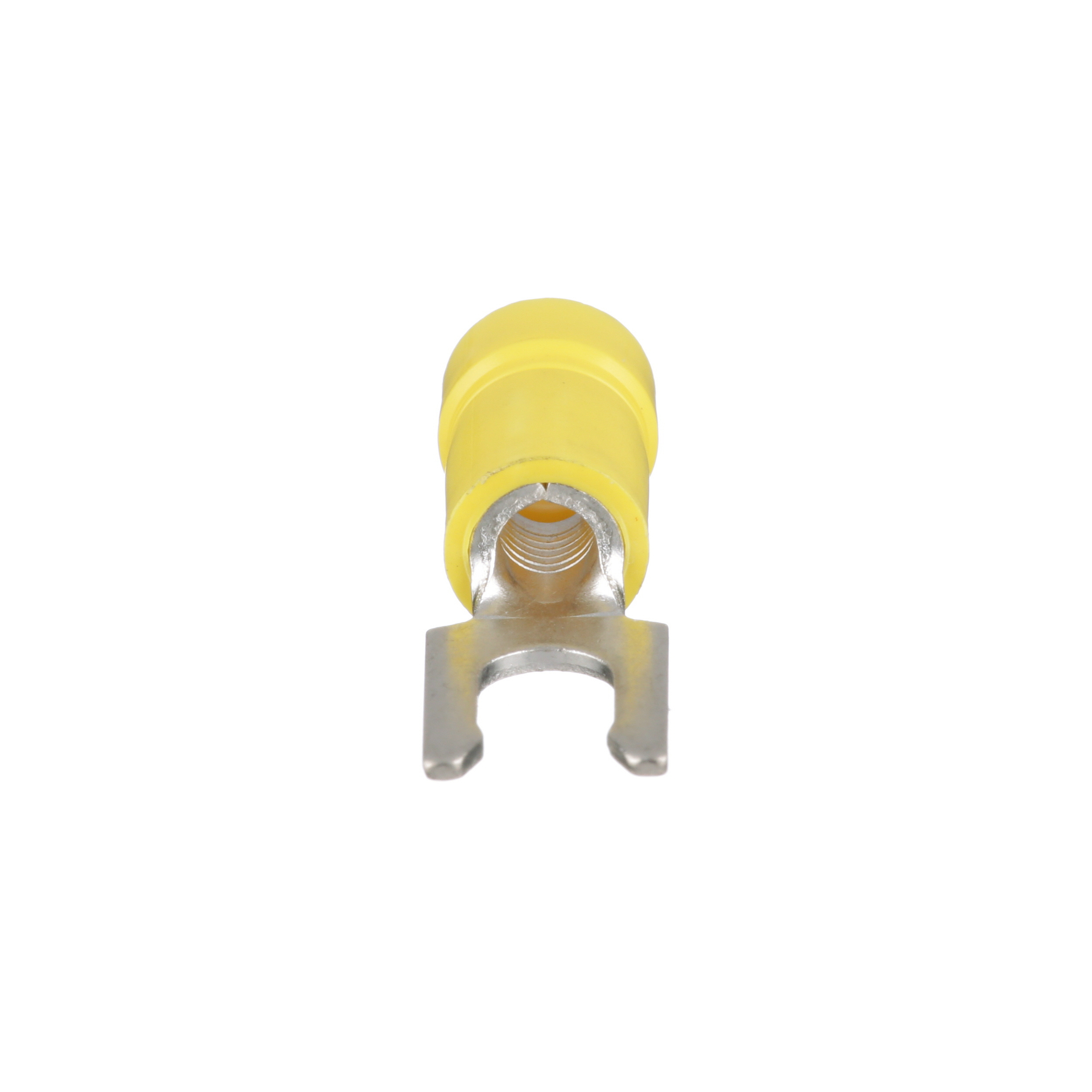

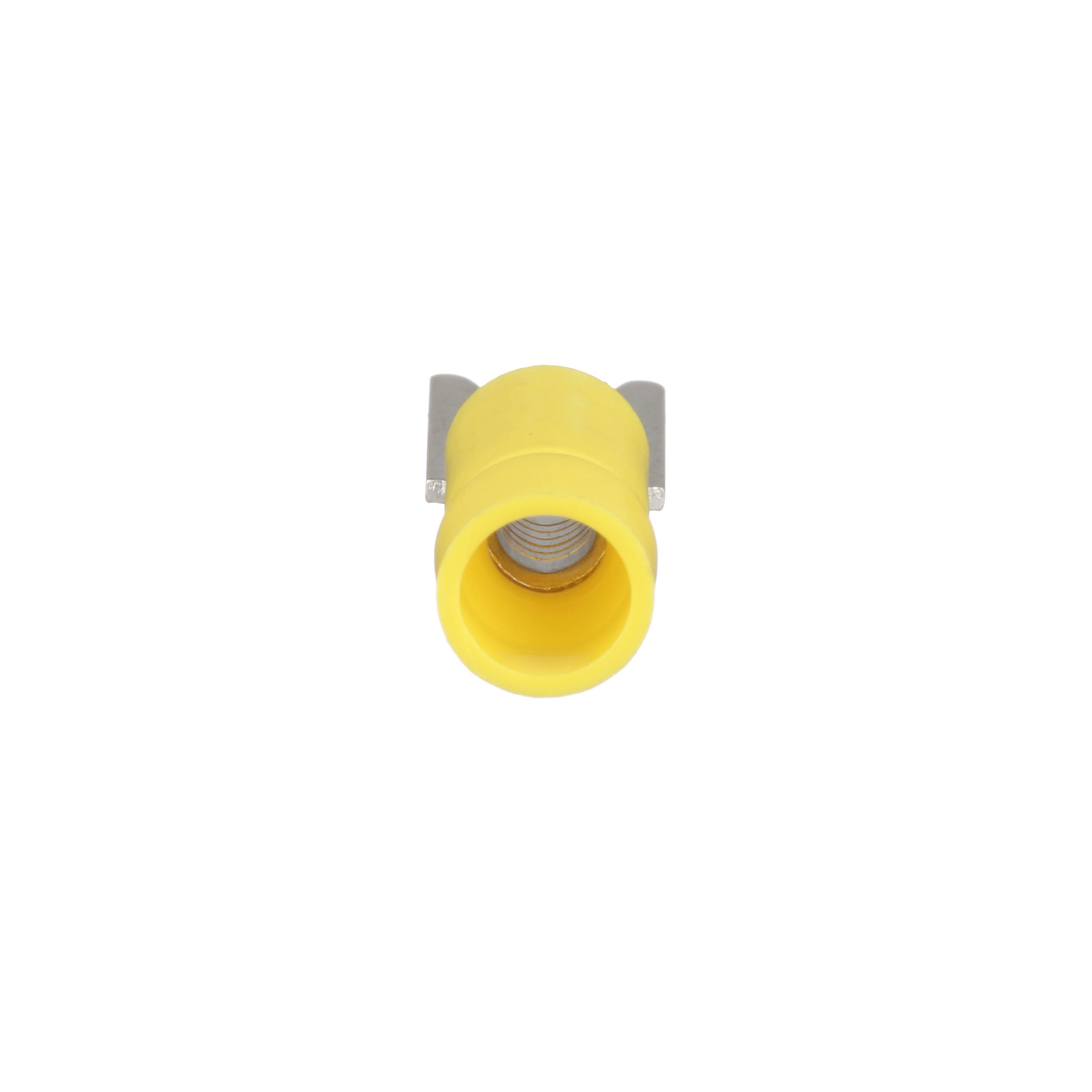

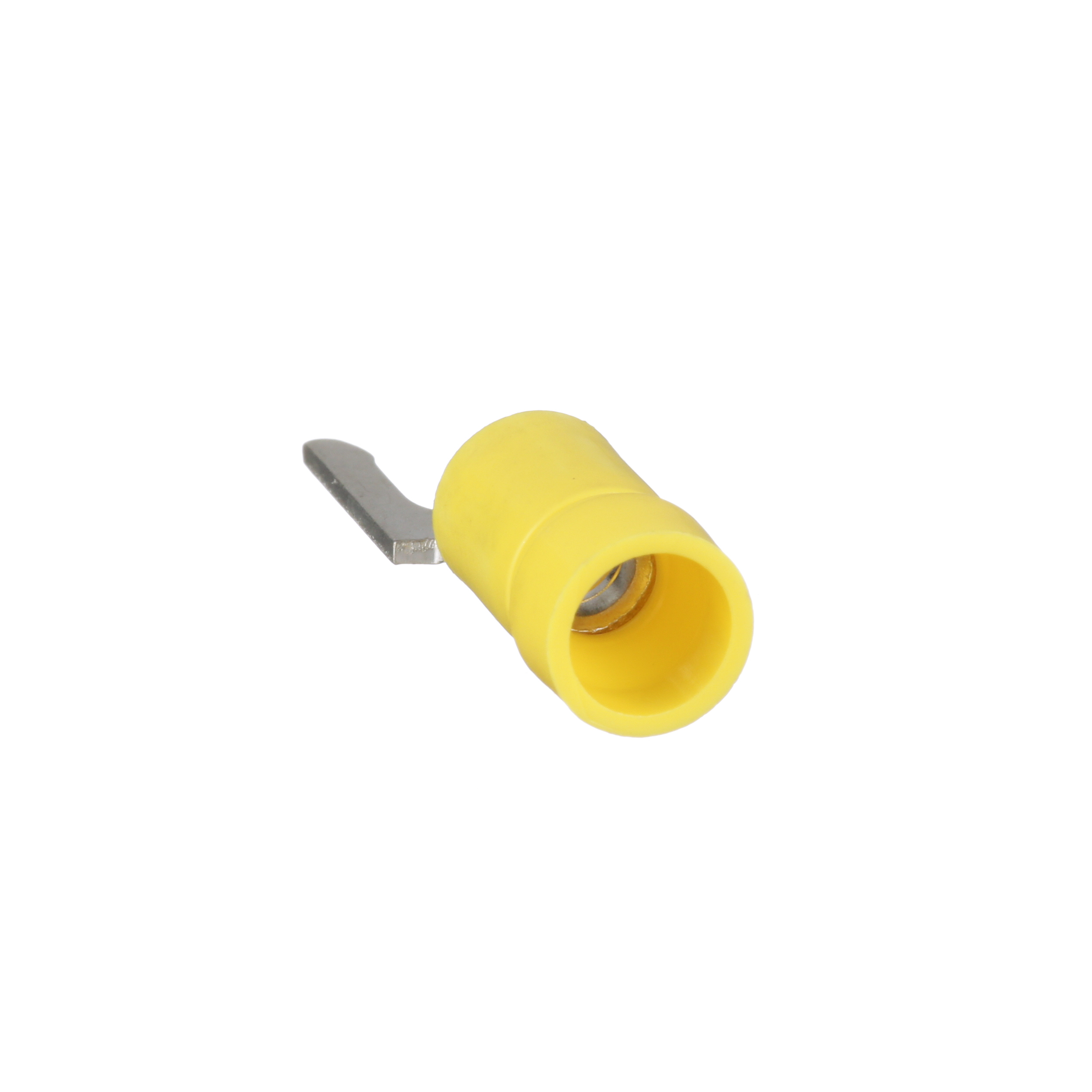

The PV10-10LF-L Pan-Term® Terminal is a vinyl insulated, locking fork terminal. The locking tongue design locks in place for a secure connection. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.4 in
Barrel Type
Funnel
Color Coding
Yellow
Enclosure
Fork shape
Material
High Conductivity Copper Alloy
Max Operating Temperature
105 degrees C
Size
10 in
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.34 in
Type
Interlocking Armored, Riser
Wire Size
4.0 - 6.0 mm²

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983808168
Color
Black on Yellow
Finish
Rust-Proof Plating, Vinyl Coated
GTIN
00074983808168
Product UPC
07498380816

Dimensions

Outer Diameter
0.23 in
Overall Length
1.04 in
Width
8.64 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
