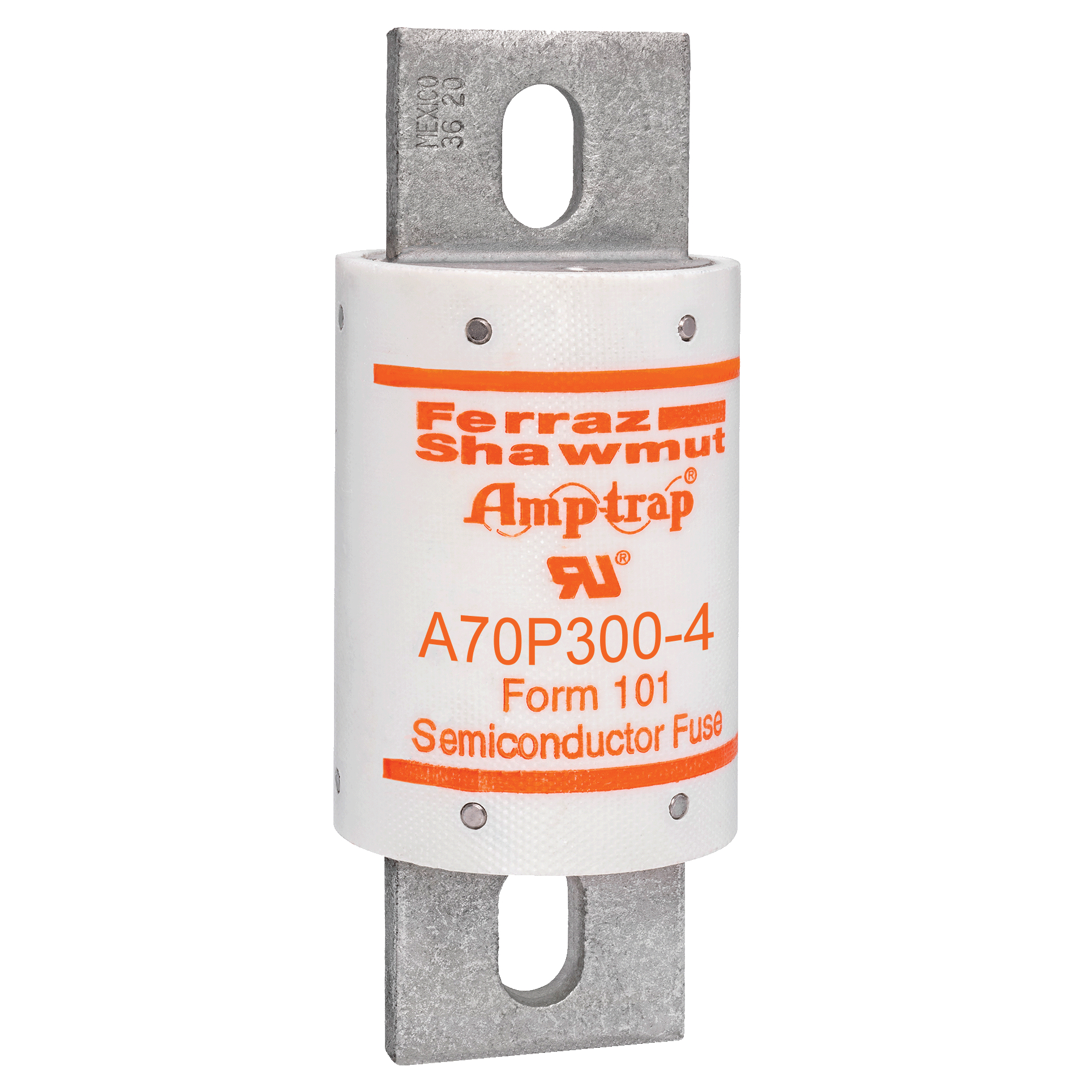

Product image for MERSEN A70P300-4 FUSE F101 300A 700VAC 650VDC SEMICONDUCTOR FORM101 F OL & SCP 150D-C MAX TEMP BLADE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN A70P300-4 FUSE F101 300A 700VAC 650VDC SEMICONDUCTOR FORM101 F OL & SCP 150D-C MAX TEMP BLADE

Manufacturer: Ferraz Shawmut Mersen | Catalog # A70P300-4 | Electrozad South Part # 62659
$260.23 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A70P Amp-Trap® Form 101 high speed fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower l2t and superior reliability are needed. A70P is a very popular fuse, available in a wide range of ratings. Typically used for replacement.

Technical Information

Amperage
300 A
Applications
Protection of 700 V or Less DC Drives, UPS, Inverters, Reduced Voltage Starters, etc
Connection Type
Blade
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
700 V
Rated Voltage DC
650 V
TC Connection
Bolted
Terminal Material
Tin-Plated Copper
Terminal Type
Bolted
Type
P Style, North American
Voltage
700 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001947323
GTIN
30782001947324
Product UPC
78200194732
Weight
0.95 lb

Dimensions

Diameter
2 in
Length
5.09 in

Certifications & Compliance

Country of Origin
Mexico
