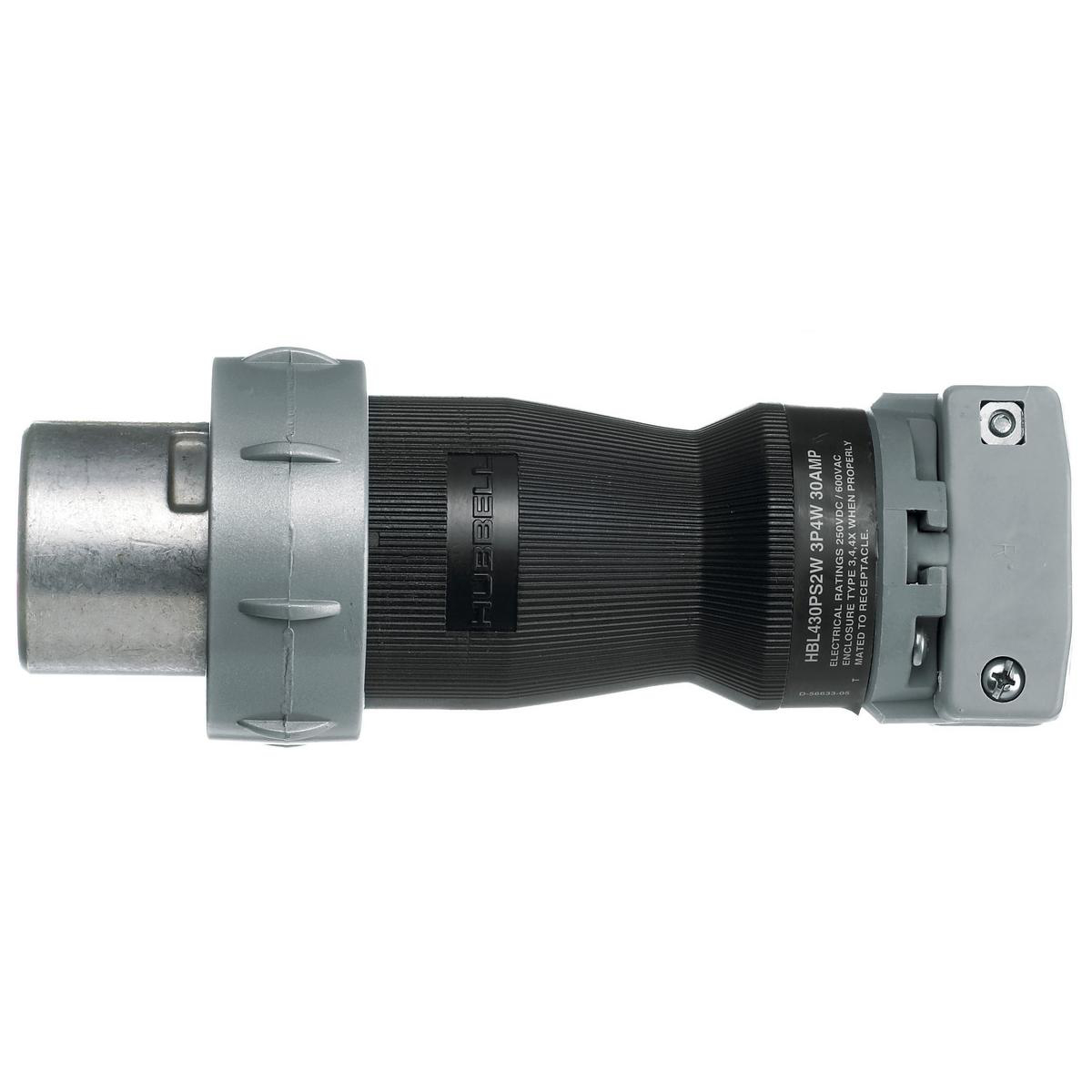

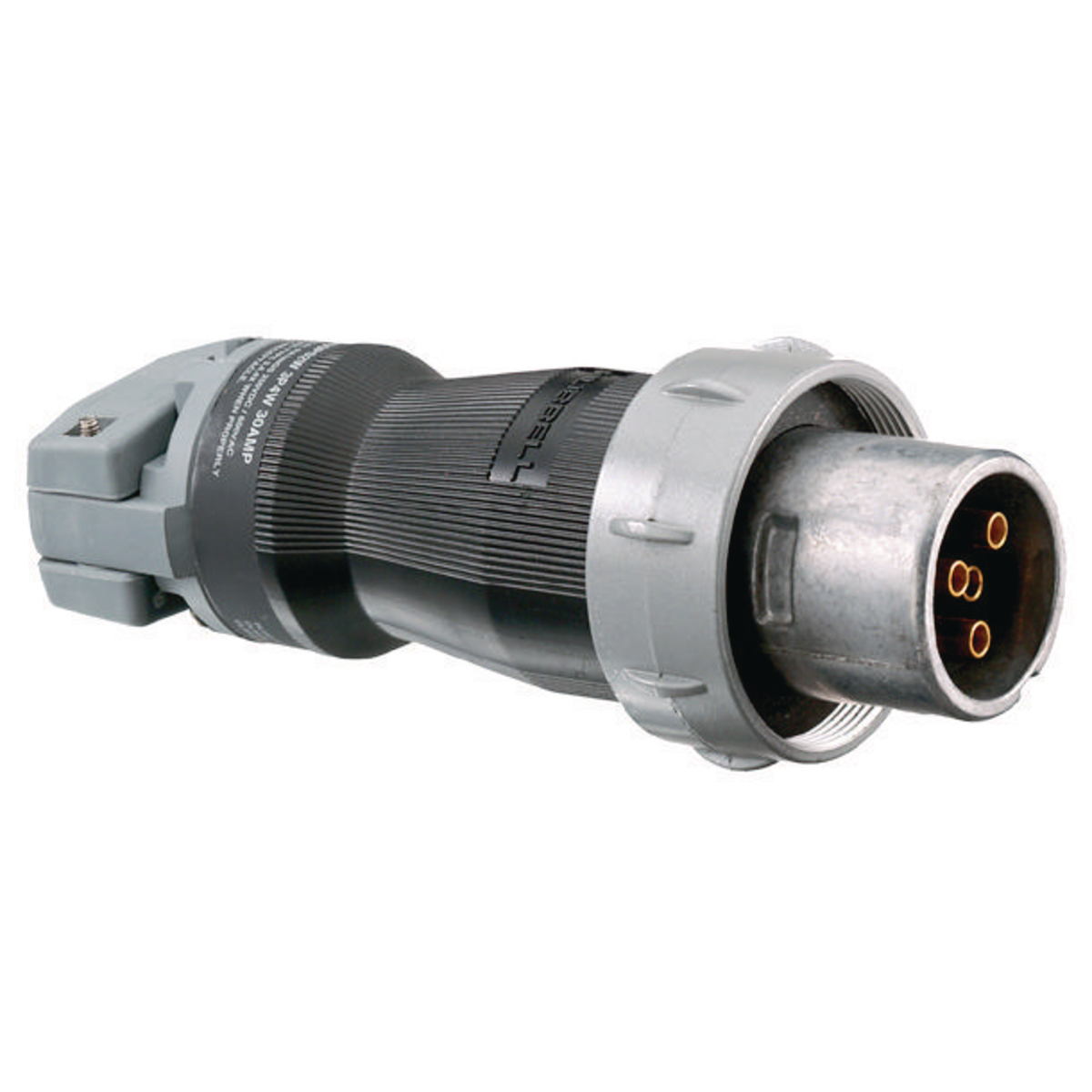

Plug pin&sleeve 3P 4W 3ph 30A 600V S2

Manufacturer: Hubbell Wiring Devices | Catalog # HBL430PS2W | Electrozad South Part # 6350
$624.24 /ea
pc
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell Pin and Sleeve series are available as cable plug, surface inlet with sealing ring, cable connector and surface outlet. Come with cap closure to insure continuous watertight connections. They come in version 20-30-60-100 amp (NEMA) and 16-32-63-125 amp (CEE rating), 2-3-4 poles depending on the voltage, yellow (130V), orange (125/250V), blue(250V), gray(277V), red (480V),black (600V). Angled low profile model, corrosion resistant model and grounded hood model also available. Several accessories, like back box, closure cap and cable adapters complete the serie.

Technical Information

Amperage
30 A
Applications
High Ampacity Connections
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 A
Grounding
Yes
Material
Plastic
Mounting Type
Cord
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,CSA Spec. C22.2 No. 159,Type 4X,UL,UL 1010,UL 50,UL Standard 1682
Style
Standard Service,Style 2 Grounding
TC Connection
Pressure Terminal Screws
Type
Straight Angled, Standard Sized
Voltage
250 V
Wire Count
4
Wire Size
10-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585010182
Color
Black/Gray
Environmental Conditions
Watertight
GTIN
00783585010182
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358501018
Weight
1.7 lb

Dimensions

Height
4.250 in
Length
9.000 in
Width
4.5 in

Certifications & Compliance

Certifications
And UL 1010 (plugs Only) CSA Certified To CSA Spec. C22.2 No. 182.1,CSA Certified To CSA C22.2 No. 182.1,CSA Certified Type 4X.,No. 94 And No. 159 (plugs Only) UL Listed,No.94 And No. 159 (plugs Only),UL 50,UL Listed,UL Listed,UL Listed And CSA Certified Type 4X.,UL Standard 1682,UL Standard 1682,UL50 And UL1010 (plugs Only)
Country of Origin
USA
Overview
  • All-Brass sleeve contacts provide reliable electrical contact
  • Locking ring provides UL Type 4X watertight, dust-tight seal
  • Catalog number and rating visible while in use
