MERSEN ATDR1-6/10 FUSE MIDGET 1-6/10A 600V TIME DELAY CLS CC AMPTRAP2000 1-1/2" X 13/32" 200KA IR RATED | Electrozad South

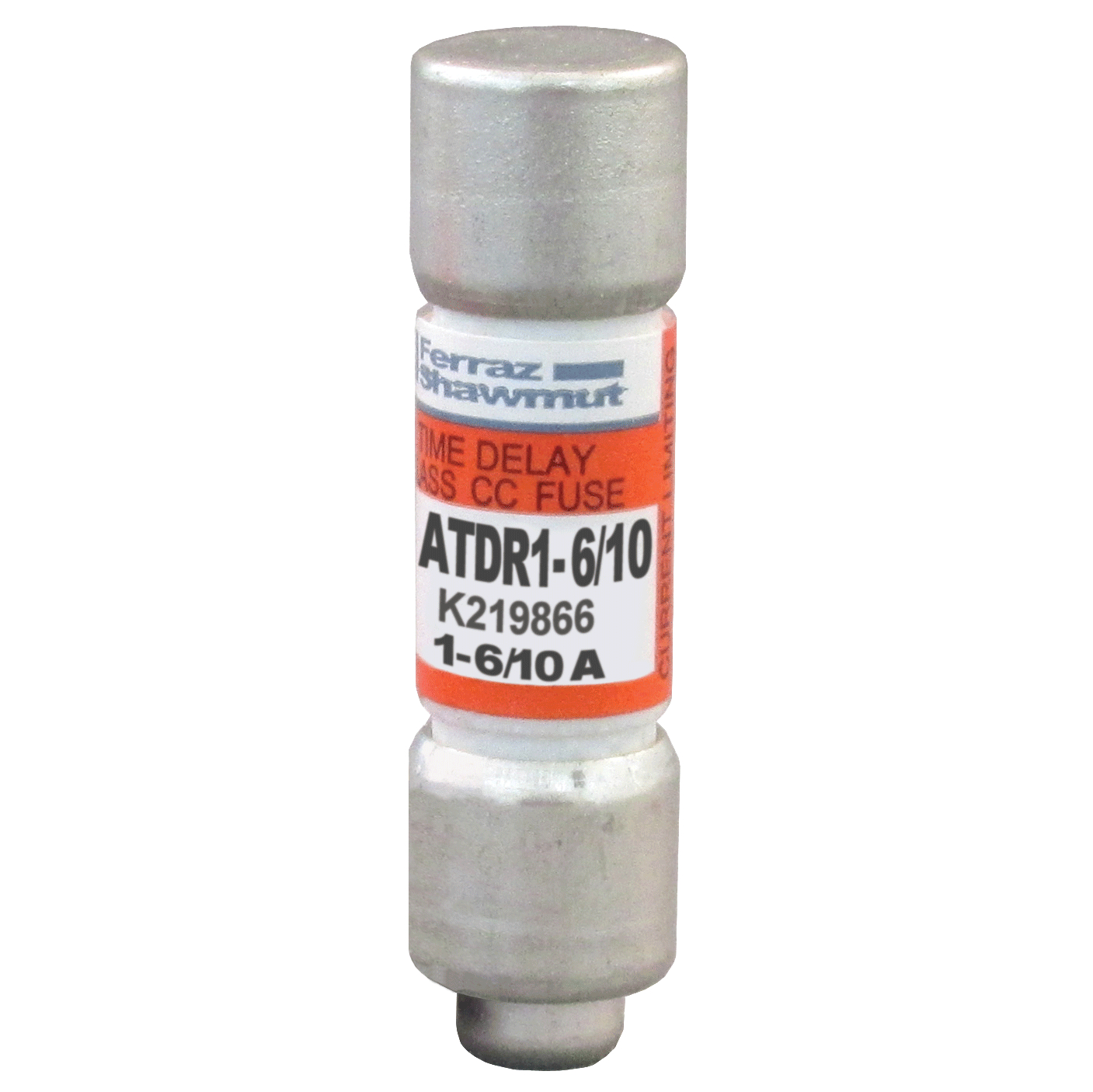

Product image for MERSEN ATDR1-6/10 FUSE MIDGET 1-6/10A 600V TIME DELAY CLS CC AMPTRAP2000 1-1/2" X 13/32" 200KA IR RATED
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN ATDR1-6/10 FUSE MIDGET 1-6/10A 600V TIME DELAY CLS CC AMPTRAP2000 1-1/2" X 13/32" 200KA IR RATED

Manufacturer: Ferraz Shawmut Mersen | Catalog # ATDR1-6/10 | Electrozad South Part # 63596
$10.83 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.

Technical Information

Amperage
1.6 A
Applications
For Small Motors, Contactors, Lighting, Heaters, General Loads
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class CC
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap® 2000

General Product Info

12-Digit UPC
782001900939
Class
CC
Construction
Fiberglass
GTIN
30782001900930
Product UPC
78200190093
Weight
0.017 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
