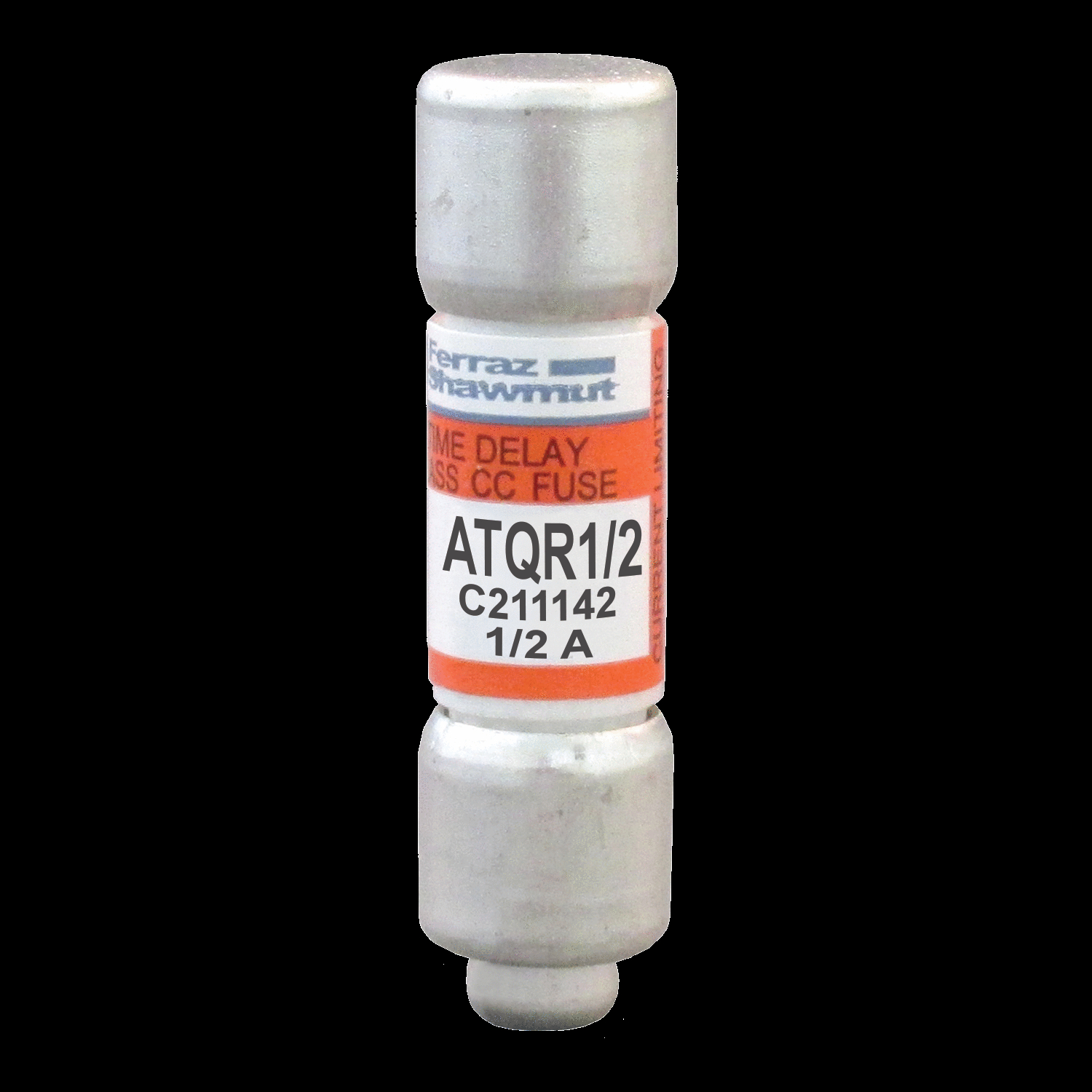

MERSEN ATQR1/2 FUSE CLASS CC 1/2A 600VAC TIME DELAY 1-1/2"L REJECTION STYLE

Manufacturer: Ferraz Shawmut Mersen | Catalog # ATQR1/2 | Electrozad South Part # 63858
$10.94 /ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems

Technical Information

Amperage
0.5 A
Applications
For Control Transformers, Solenoids, Inductive Loads, Lighting, Heaters, General-Purpose Loads
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class CC
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time-Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap® 2000

General Product Info

12-Digit UPC
782001906337
Class
CC
Construction
Fiberglass
GTIN
30782001906338
Product UPC
78200190633
Weight
0.017 lb

Dimensions

Diameter
0.41 in
Length
1.5 in
