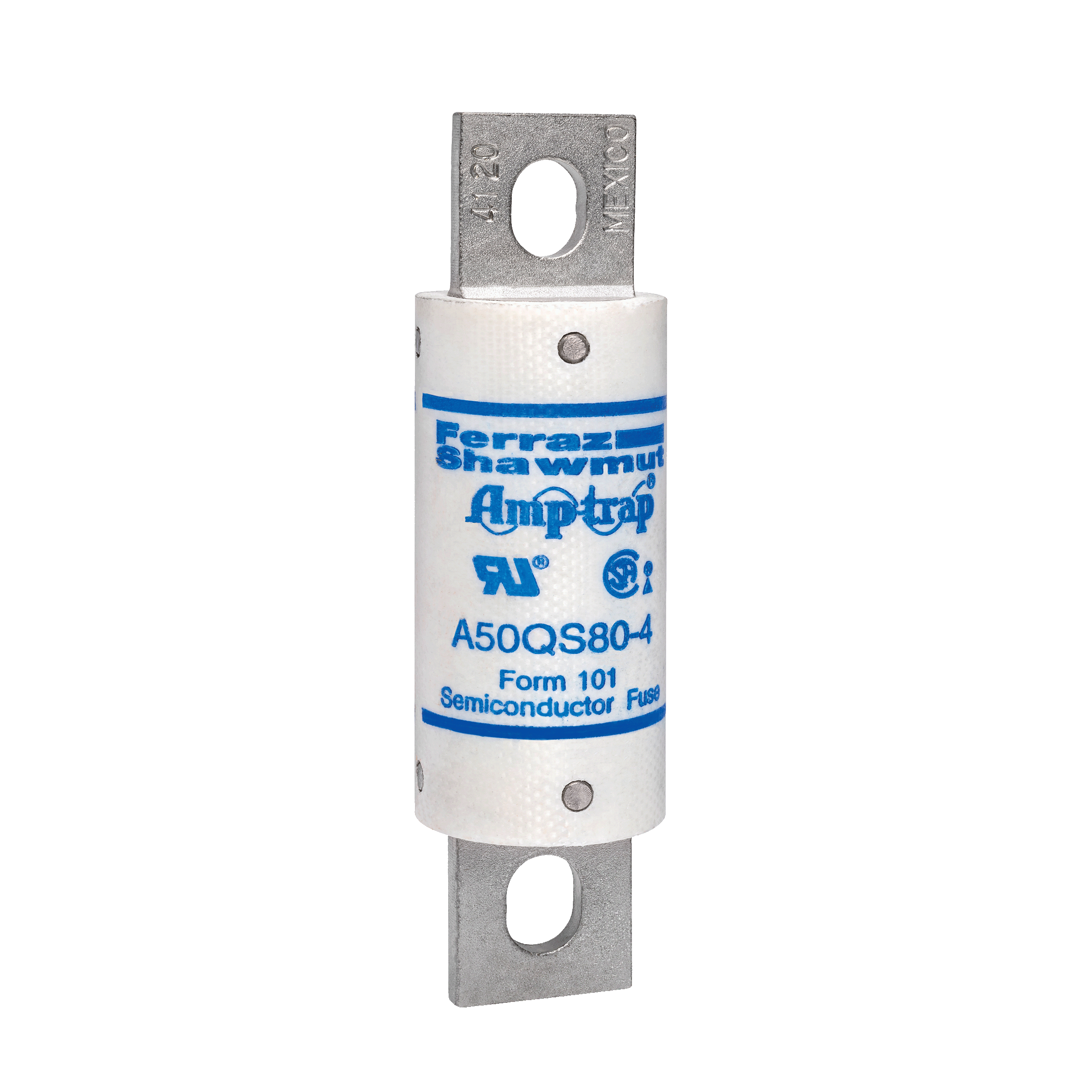

Product image for MERSEN A50QS80-4 FUSE F101 80A 500VAC 500VDC SEMICONDUCTOR FORM101 F OL & SCP 150D-C MAX TEMP BLADE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

MERSEN A50QS80-4 FUSE F101 80A 500VAC 500VDC SEMICONDUCTOR FORM101 F OL & SCP 150D-C MAX TEMP BLADE

Manufacturer: Ferraz Shawmut Mersen | Catalog # A50QS80-4 | Electrozad South Part # 64143
$160.33 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features ... lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today...s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.

Technical Information

Amperage
80 A
Applications
For Protection of 500 V or Less Motor Drives, UPS, Inverters
Connection Type
Blade
Contact Material
Tin-Plated Copper
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
200 kA
Max Operating Temperature
80 degrees C
Mounting Type
Bolt-In
Rated Voltage AC
500 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Tin-Plated Brass
Terminal Type
Blade
Type
High Speed, Form 101
Voltage
500 V

Packaging

Package Qty
20

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001947620
GTIN
30782001947621
Product UPC
78200194762
Weight
0.25 lb

Dimensions

Diameter
1 in
Length
3.63 in

Certifications & Compliance

Country of Origin
Mexico
