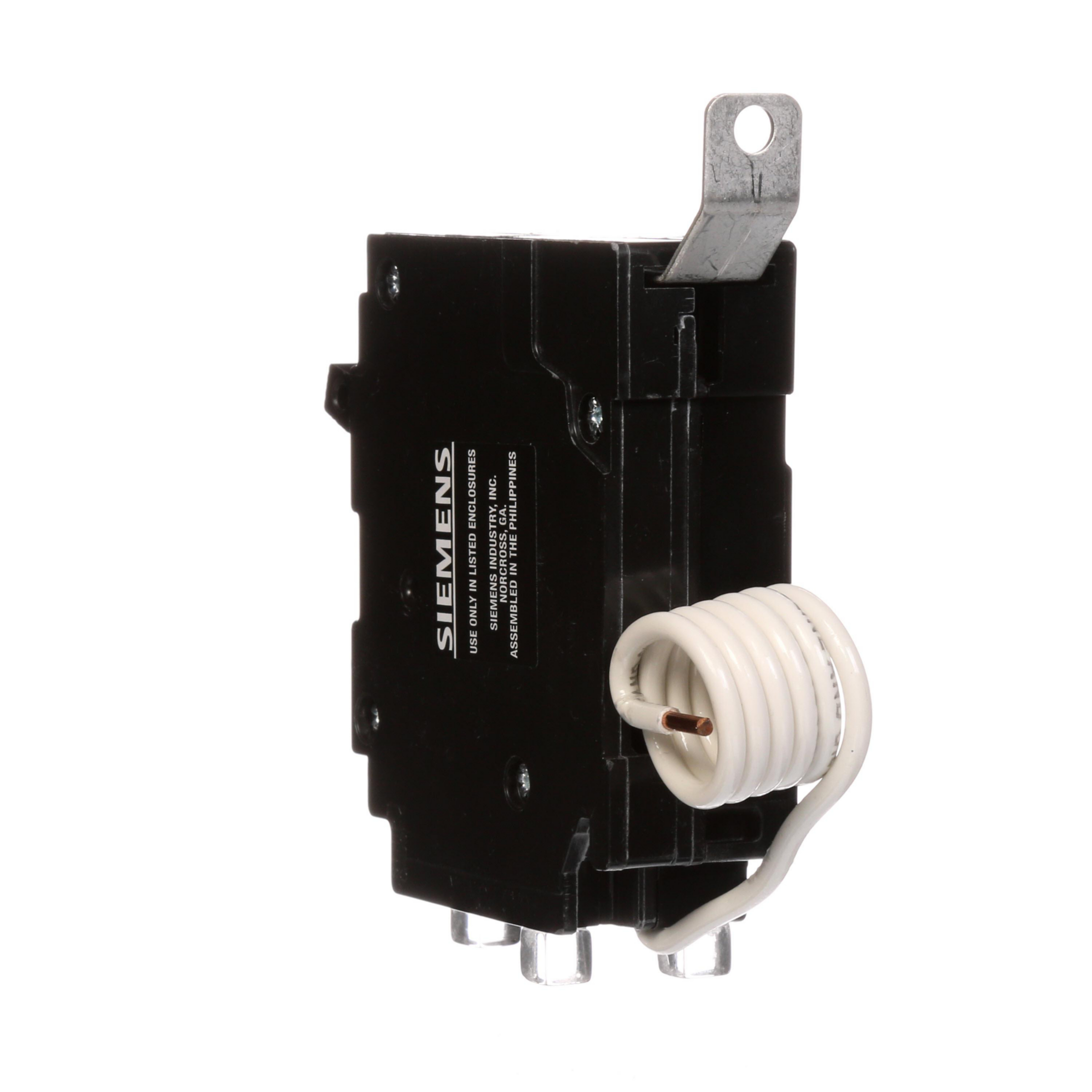

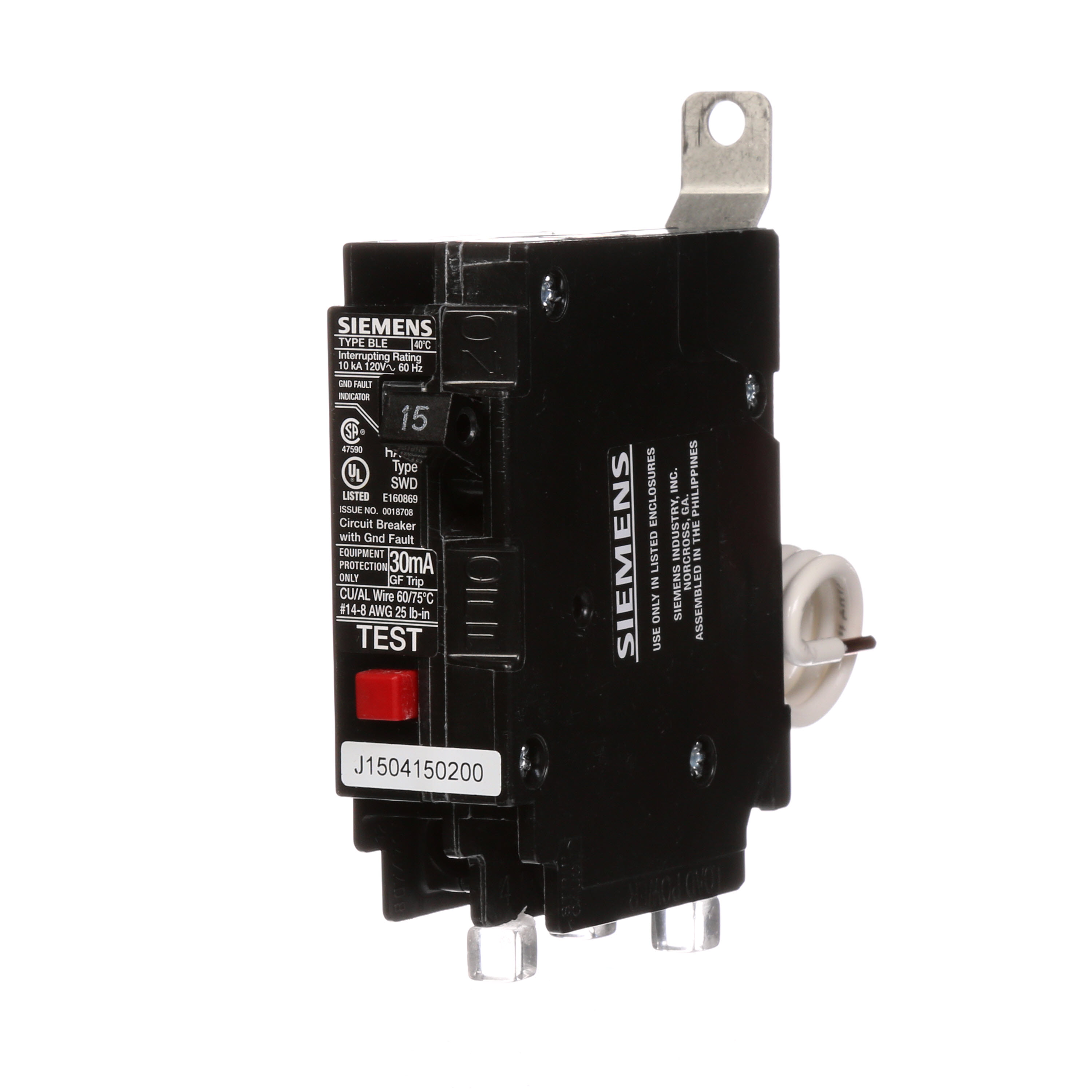

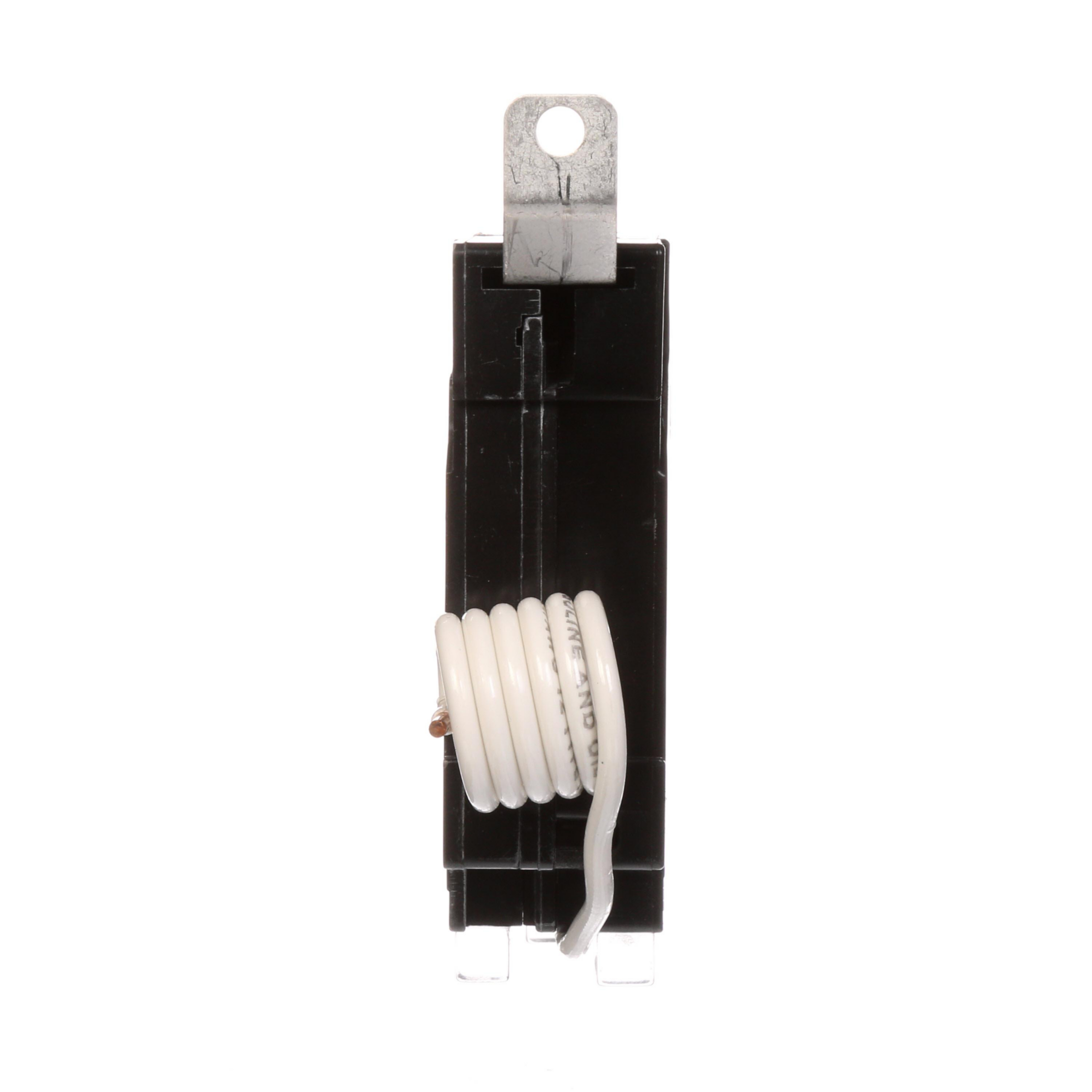

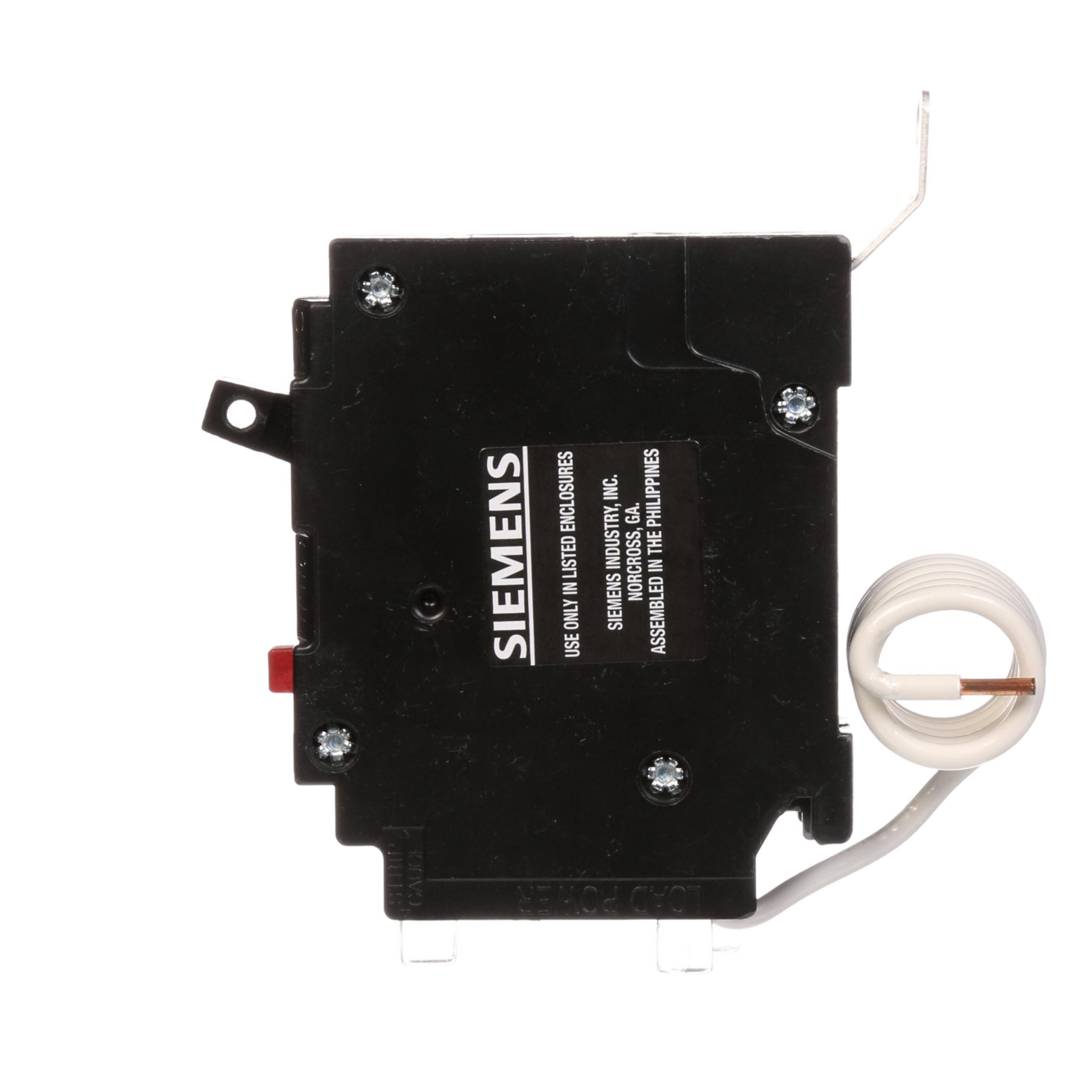

Breaker EQF 1P 15A 120V GFI 30mA typeBLE

Manufacturer: Siemens Distribution | Catalog # BE115 | Electrozad South Part # 6441
$364.30 /ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL
Molded case circuit bolt-on GFCI breakers for panelboard mounting with insta-wire is an ground fault the equipment at 30 mA or person at 5mA trigging. Available in 4 types of tripping speed BLE BLF=10KA and BLEH BLHF=22KA came on 1 pole 120vac, 2 poles 120/240vac versions.

Technical Information

Actuator
N/A
Applications
Electrical Distribution
Enclosure
N/A
Frame
N/A
Interrupt Rating
10 kA
Load Rating
N/A
Number of Phases
-99999
Number of Poles
1
Operating Temperature
N/A
Standard
CSA,UL
TC Connection
BOLT-ON
Trip Range
Thermal Magnetic
Trip Type
Thermal Magnetic
Type
BL

Manufacturer Information

Brand
Siemens
Sub Brand
Panelboards

General Product Info

12-Digit UPC
783643266094
GTIN
00783643266094
Product UPC
78364326609
Weight
0.535 lb

Dimensions

Height
5 in
Length
1.300 in
Width
7.6 in

Certifications & Compliance

Country of Origin
Philippines
