Receptacle duplex flush nyl 2P3W 15A 5-15R blue | Electrozad South
Product image for Receptacle duplex flush nyl 2P3W 15A 5-15R blue
Image thumbnail 0
Image thumbnail 1
Email

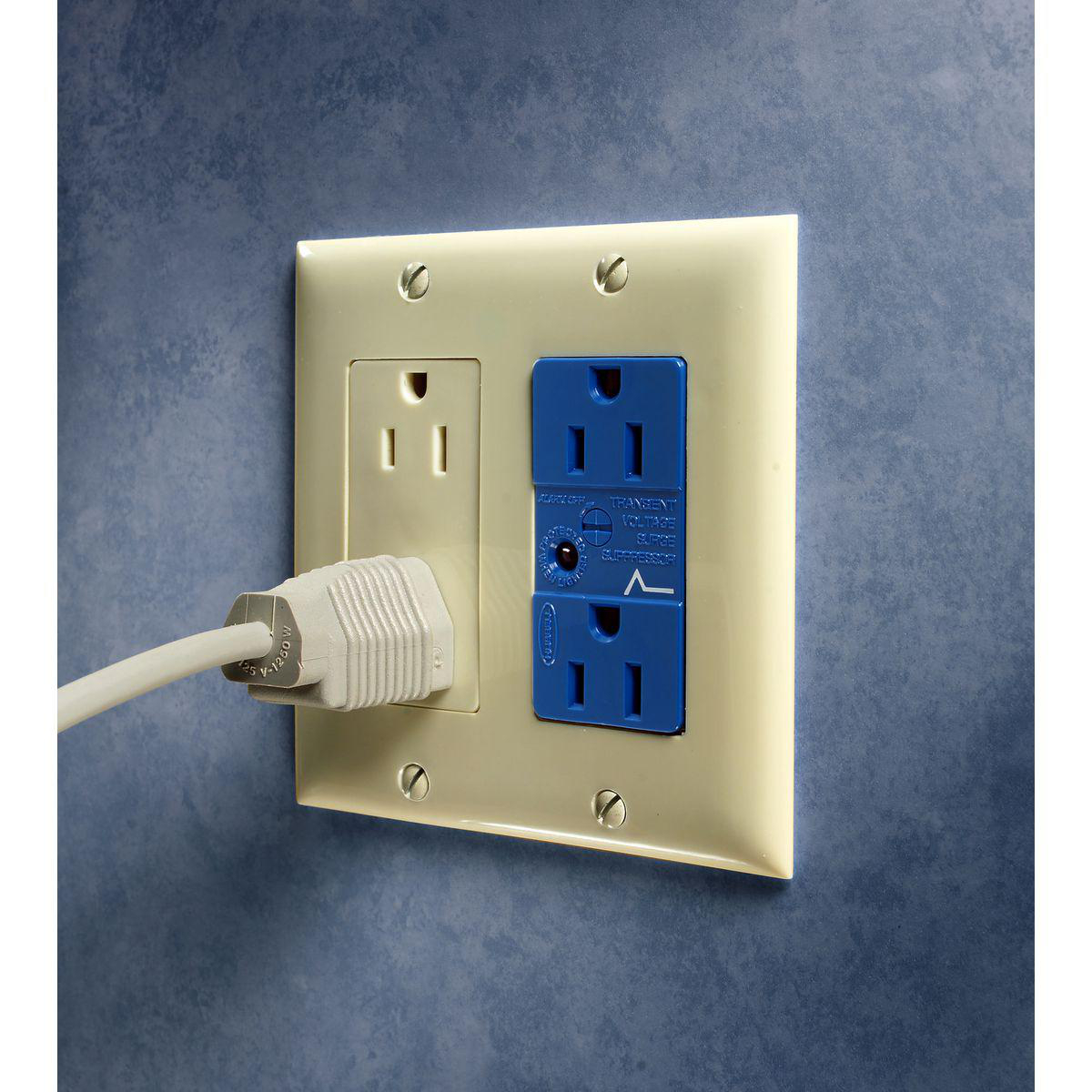

Receptacle duplex flush nyl 2P3W 15A 5-15R blue

Manufacturer: Hubbell Wiring Devices | Catalog # HBL5262SA | Electrozad South Part # 65627
$124.90 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
TVSS duplex receptacle made of nylon with light and alarm, 2 pole, 3 wire grounding, 125 V, 240 joules/15KA per mode, audible and visual alarm.

Technical Information

Amperage
15 A
Applications
Decorator Duplex with Light and Alarm
Current
15 A
Frequency
60 Hz
Grade
Standard
Material
Plastic
Mounting Type
Screw, Flush
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Operating Temperature
0 To 60 degrees C
Response Time
5
Size
Standard
Standard
C22.2 No. 42,CSA,File E2186,UL,UL Standards 498
TC Connection
Terminal Screws
Temperature Rating
32 - 140 degrees F
Type
Surge Protection, 1-Unit, 2-Module, Straight Blade, Standard
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
SpikeShield®

General Product Info

12-Digit UPC
783585060170
Class
Normal and Common Mode
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matt
GTIN
00783585060170
Product Series
Specification Grade
Product UPC
78358506017
Weight
0.3 lb

Dimensions

Height
1.9 in
Length
4.200 in
Width
2.2 in

Certifications & Compliance

Certifications
UL Listed File E2186
Country of Origin
China
Overview
  • Power-on indicator light verifies that power is available
  • Automatic self-grounding staple
  • Distinctive surge symbol provides quick identification
  • Alert alarm sounds when surge protection is no longer functioning
