Receptacle single flush nyl 3P4W 250VAC 50A blk

Manufacturer: Hubbell Wiring Devices | Catalog # CS8369 | Electrozad South Part # 6568
$180.16 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL

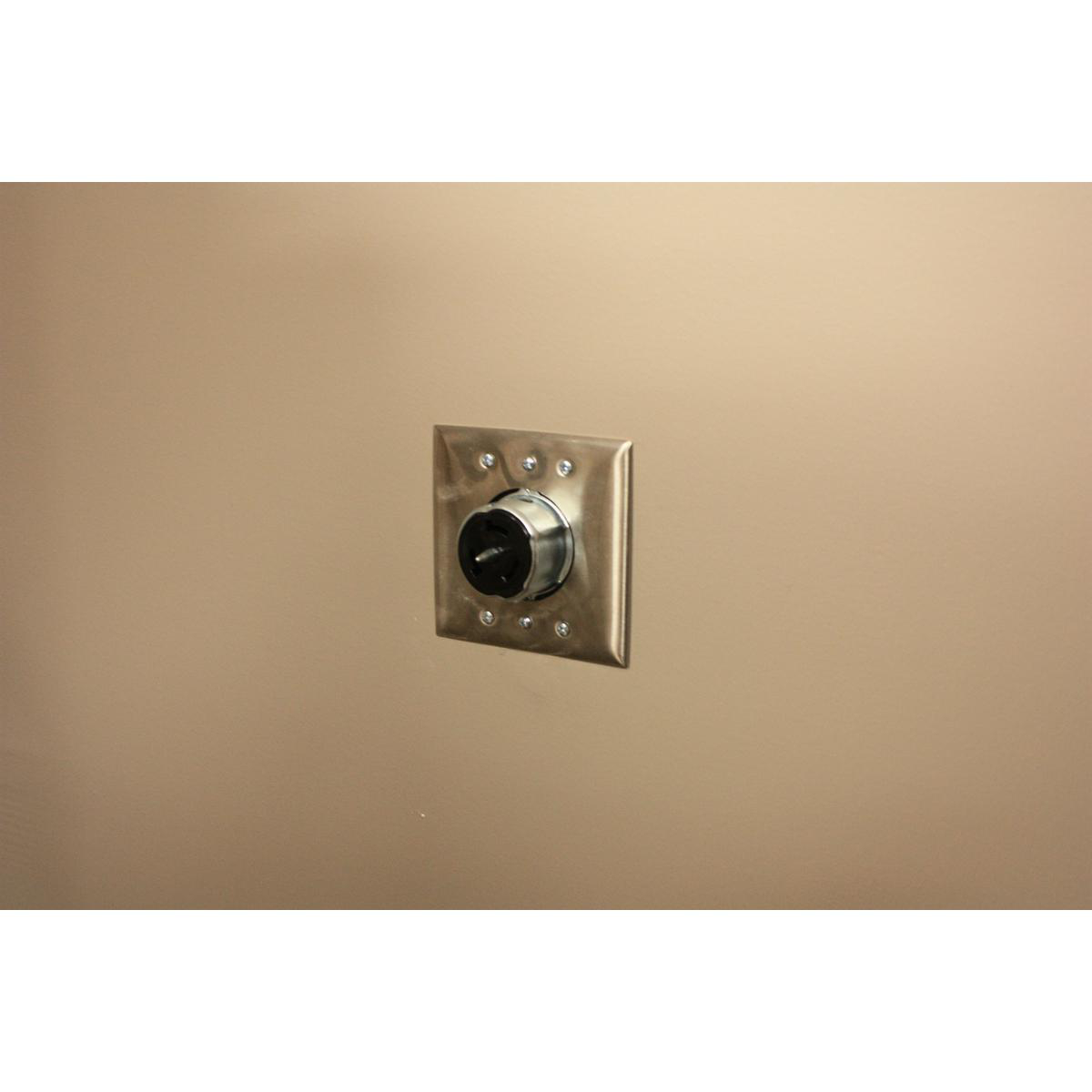

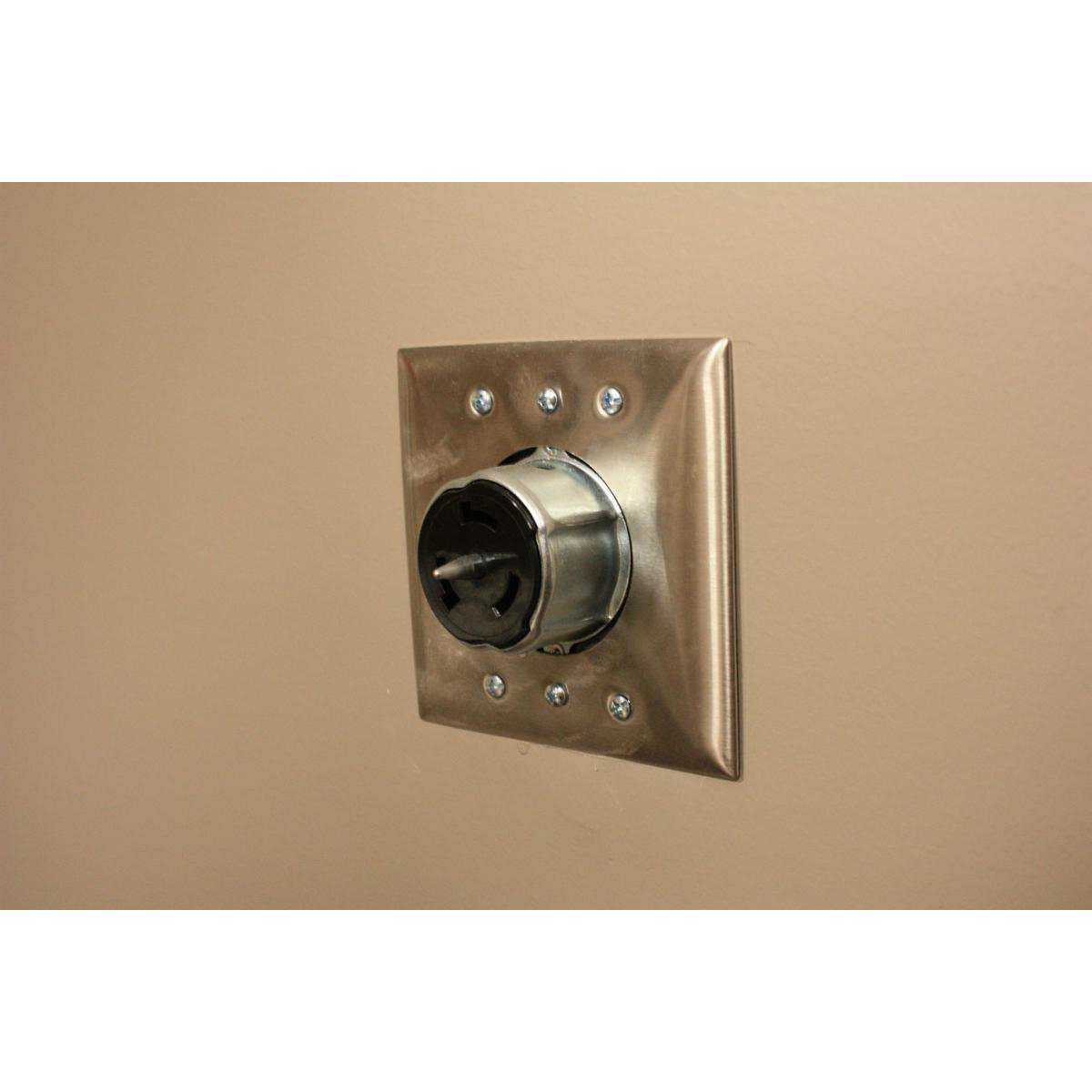

TWIST-LOCK® Single flush receptacle made of nylon with 3 pole, 4 wire grounding, 3 phase 250 V AC, 3 HP, rynite interior.

Technical Information

Amperage
50 A
Applications
Heavy Duty Industrial
Conductor Size
10-6 AWG
Current
50 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Phenolic
Grade
Industrial
Material
Composite
Mounting Type
Screw, Flush
Number of Phases
3
Number of Poles
3
Number of Wires
4-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
TC Connection
Screw Terminal
Type
Heavy Duty
Voltage
250 V
Wattage
12500 W
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585829074
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585829074
Product UPC
78358582907
Weight
0.75 lb

Dimensions

Height
2.36 in
Length
2.69 in
Width
2.12 in

Certifications & Compliance

Country of Origin
USA
Overview
  • One piece contacts provide low operating temperatures
  • Thermoset construction offers high heat resistance
  • Armored housing provides superior impact resistance
