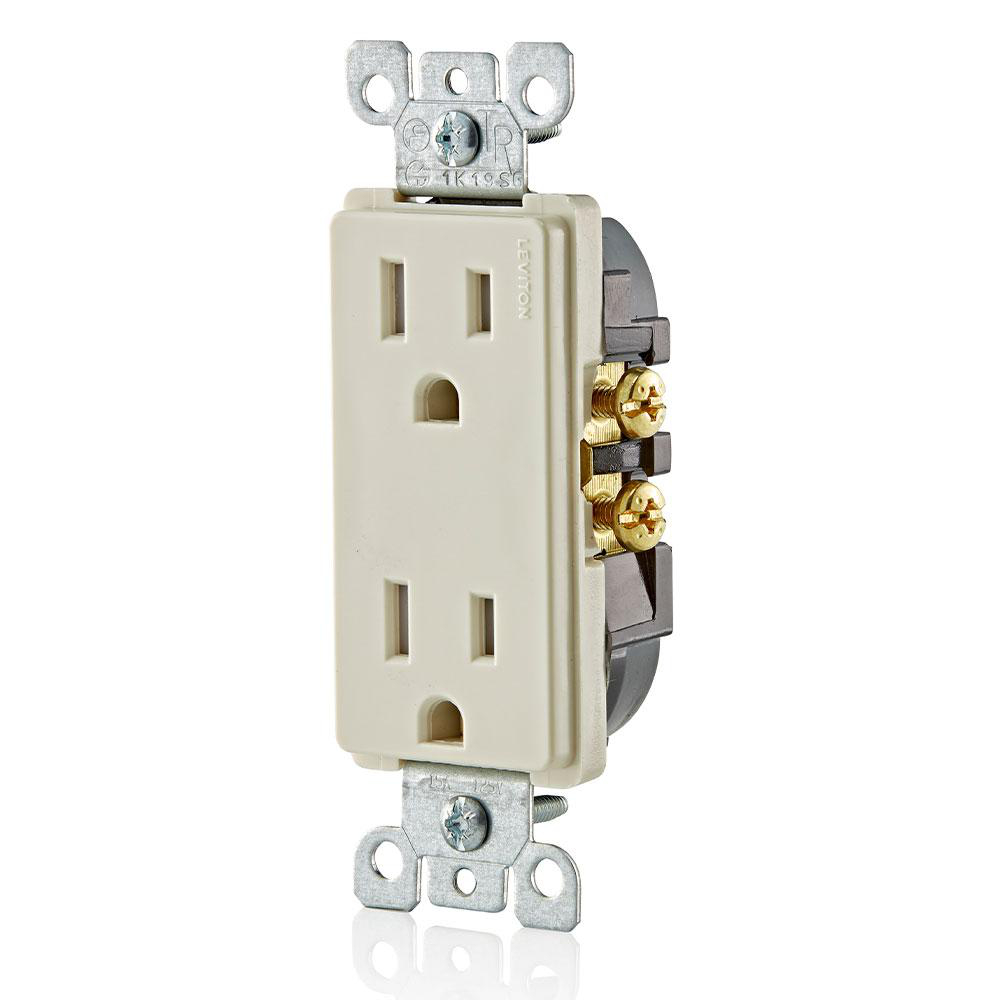

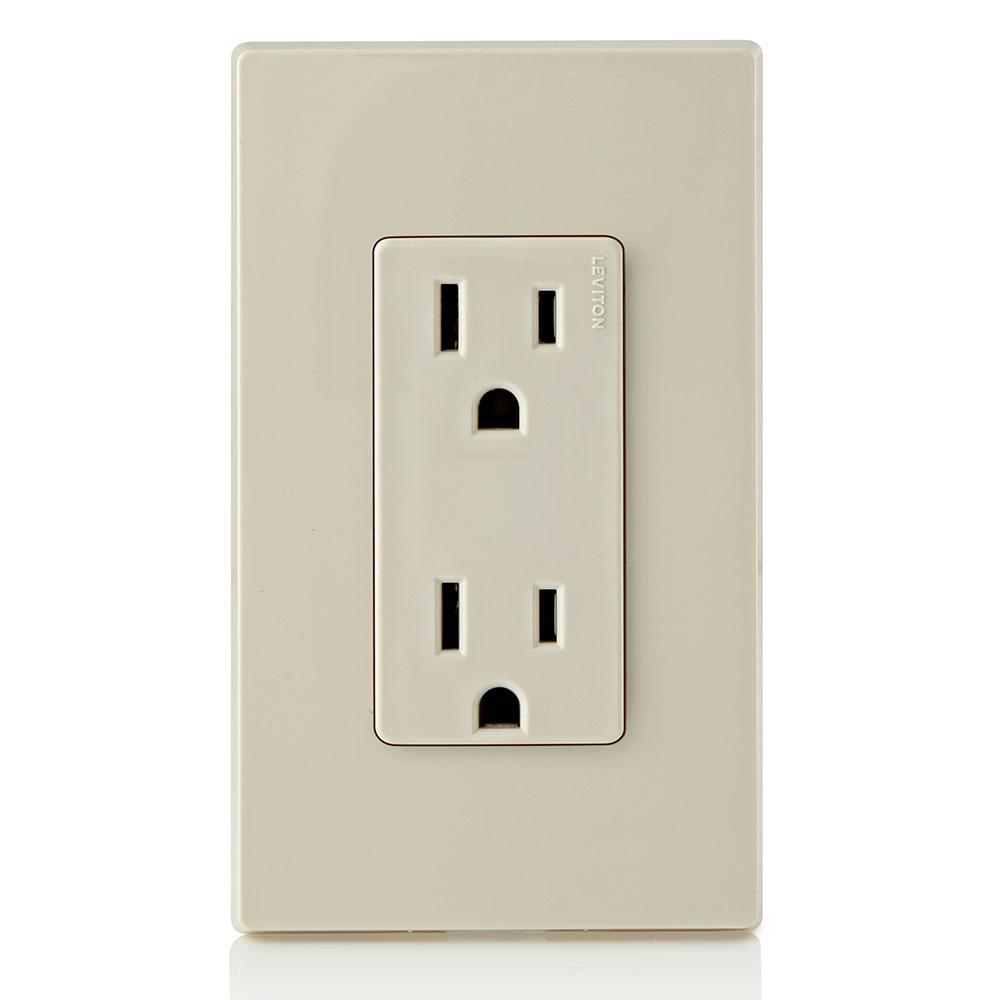

15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond

Manufacturer: Leviton Manufacturing | Catalog # 5325-T | Electrozad South Part # 65783
$1.84 /ea
ea
Log in or register to view your price, purchase history, and more!
31 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Decora Duplex Receptacle, Straight Blade, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Steel Strap - Light Almond

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Quickwire Push-In And Side Wired
Face Material
Thermoplastic
Grounding
Grounding
Material
Thermoplastic Rubber
Mounting Type
Wallplate
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Size
4.20 H x 1.31 W x 0.98 D IN
Standard
CSA,UL
TC Connection
Quickwire Push-In and Side Wired
Temperature Rating
-40 to 60 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Duplex Outlet,Straight Blade
Voltage
125 V
Wire Count
3
Wire Size
14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477274934
Color
Light Gray
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477274934
Product UPC
07847727493

Dimensions

Warranty Length
1 yr

Certifications & Compliance

Country of Origin
Please Contact Customer Service
