Receptacle straight 2P3W 250V 15A brown

Manufacturer: Leviton Manufacturing | Catalog # 5662 | Electrozad South Part # 6616
*Call For Price*
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL
Levitons line of extra heavy-duty industrial grade receptacle are designed and manufactured to withstand the most demanding environments. These industrial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Technical Information

Amperage
15 A
Applications
Commercial
Body Material
Thermoplastic Nylon
Conductor Size
14 - 10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass,Brass
Contact Type
Triple-Wipe
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1-1/2 hp
Insulation Material
Brass,Brass-Plated
Material
Thermoplastic
Mounting Type
Wall Box

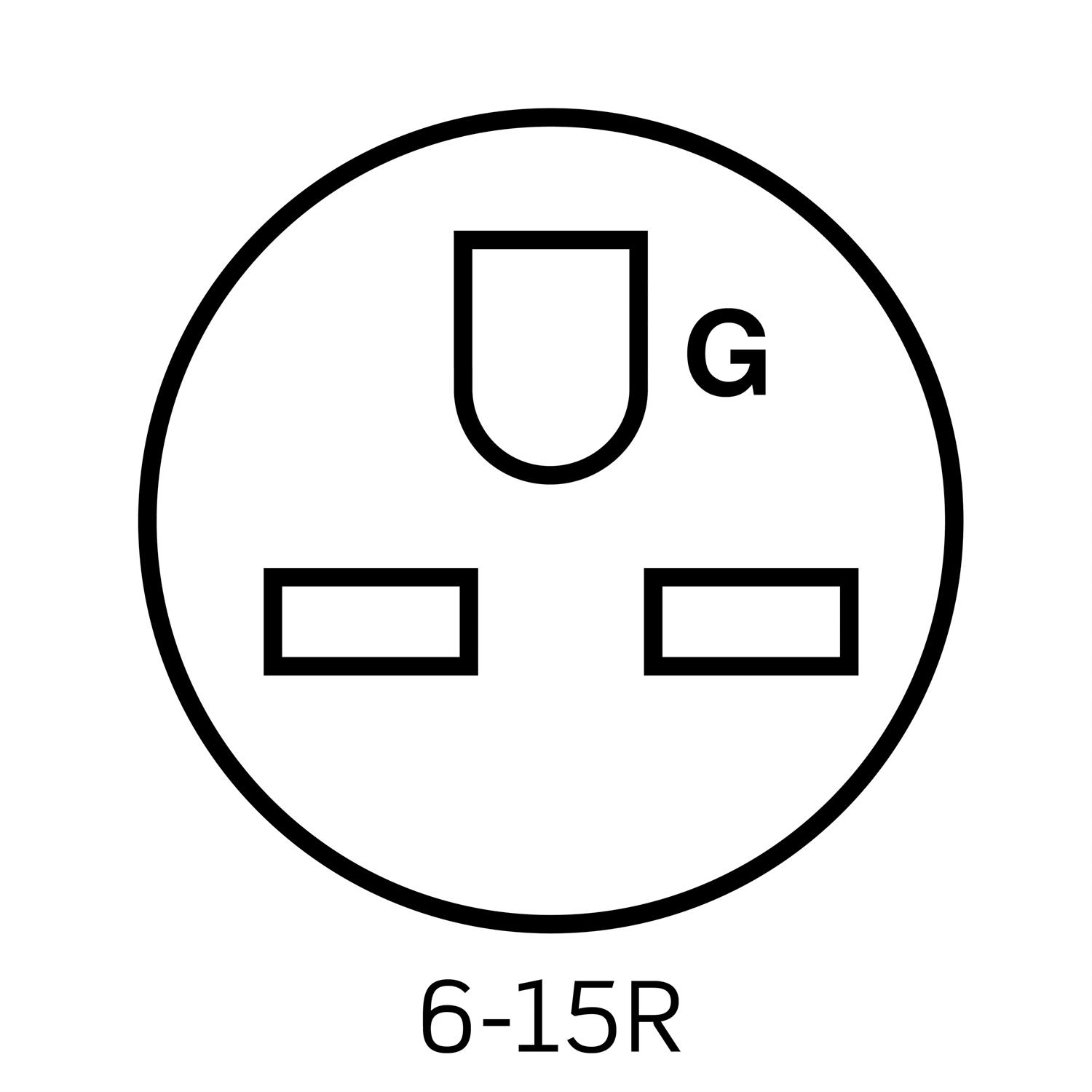

NEMA
6-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass,Plated Brass,Plated Steel
Screw Size
10-32,8-32
Size
46 H x 1.55 W x 19 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-10 AWG
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Duplex Outlet,Straight Blade
Voltage
250 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477819388
Color
Brown
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477819388
Product UPC
07847781938

Dimensions

Warranty Length
10 yr
