MMM 8426-11 7000006133 COLD SHRINK INSULATOR

Manufacturer: 3M | Catalog # 8426-11 | Electrozad South Part # 66420
$69.75 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

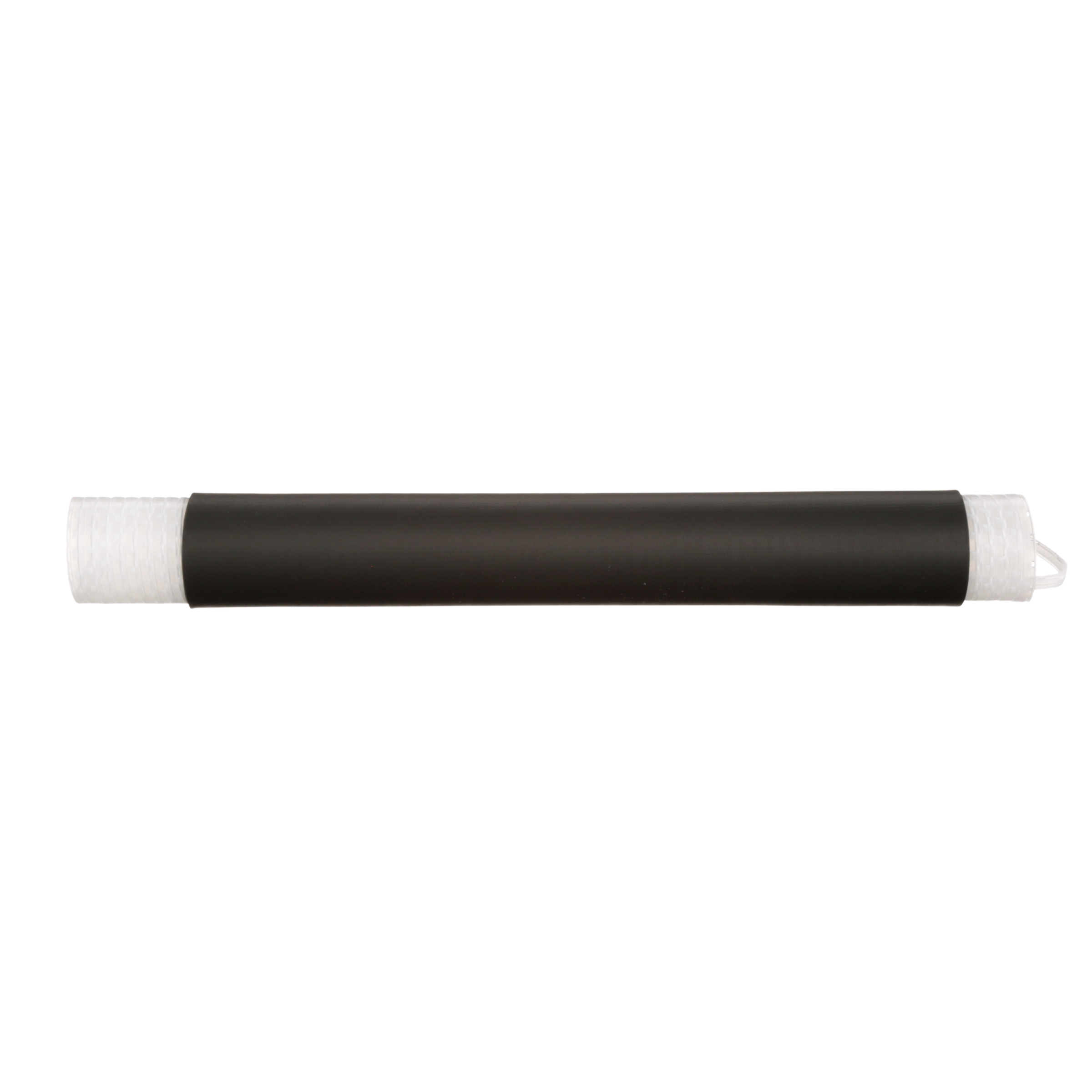

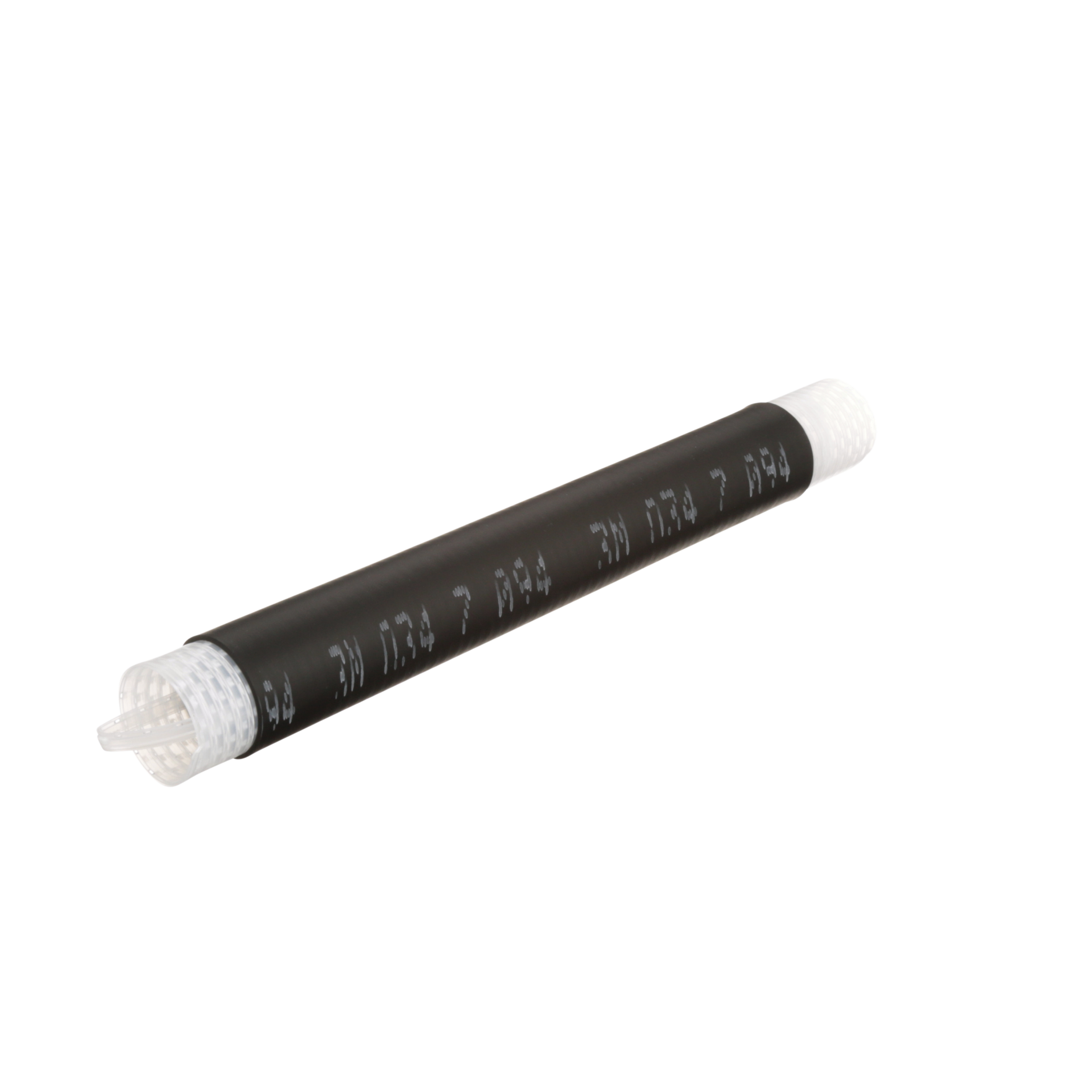

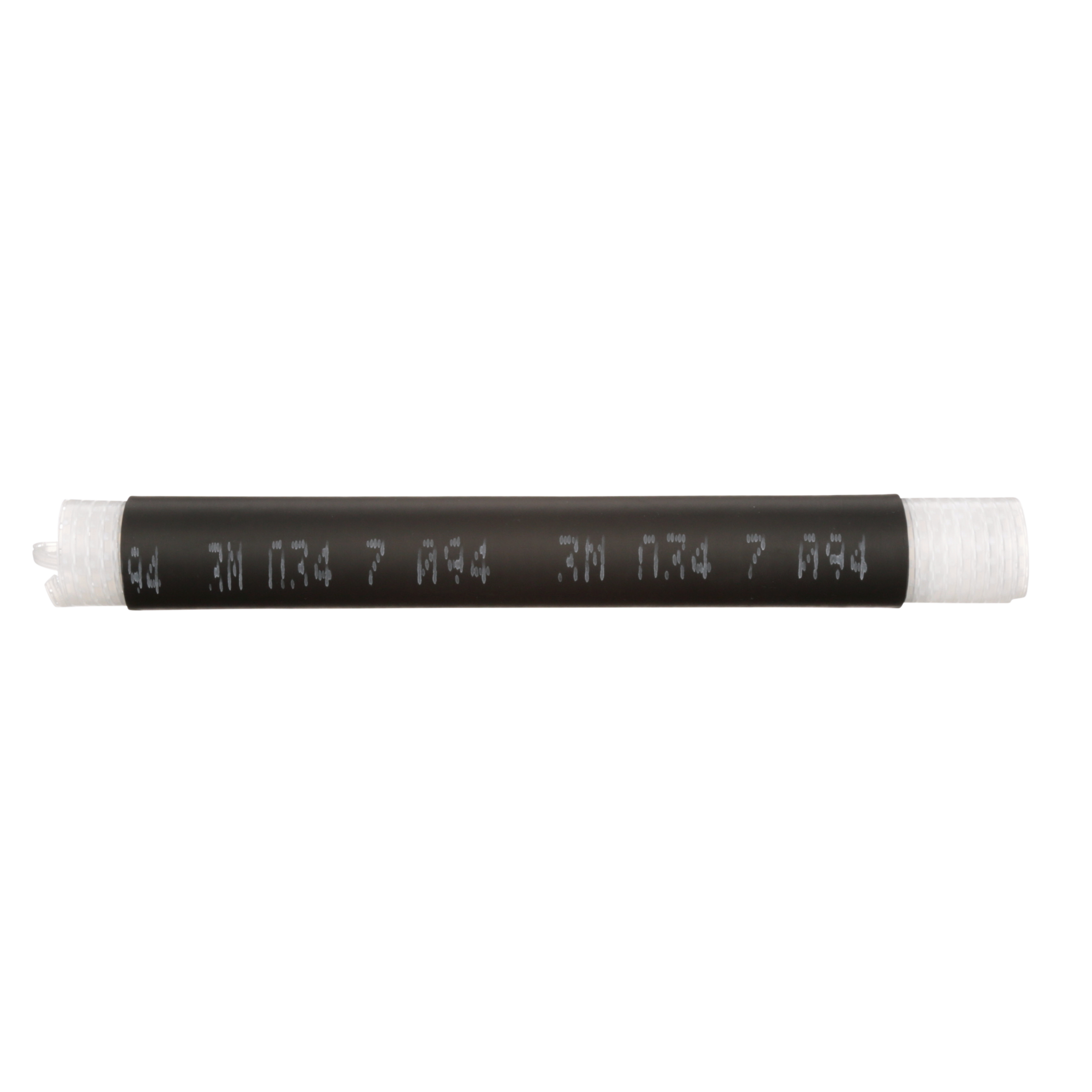

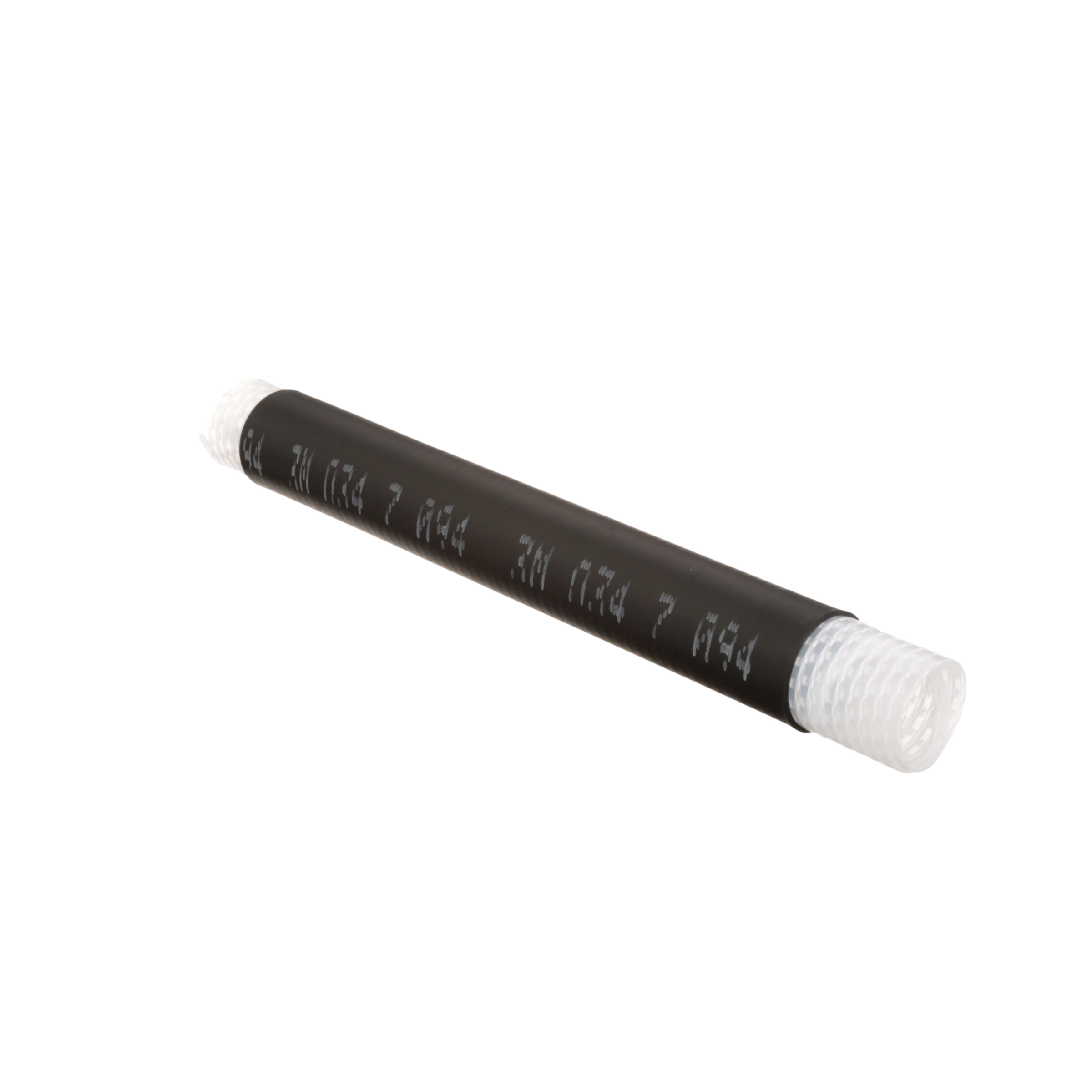

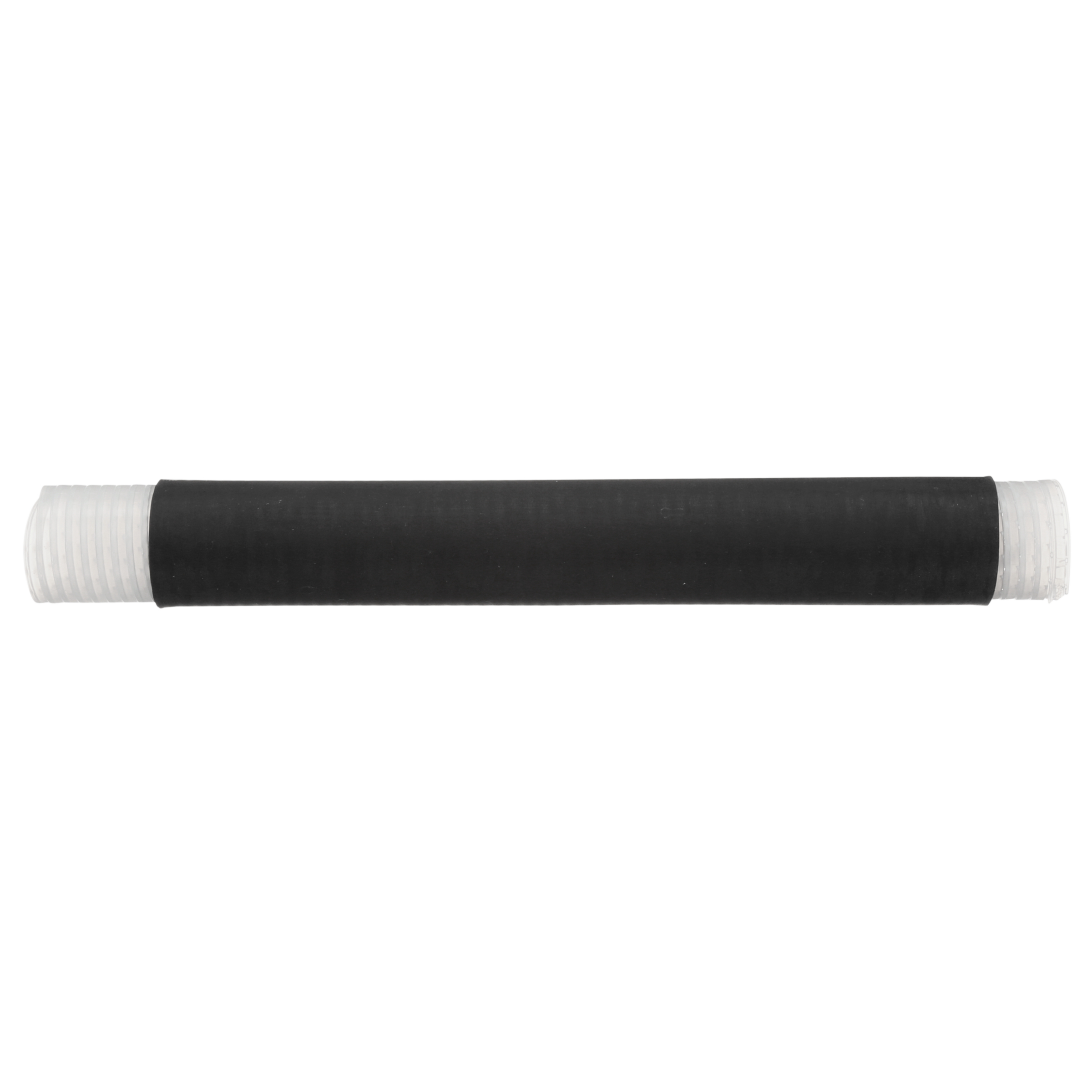

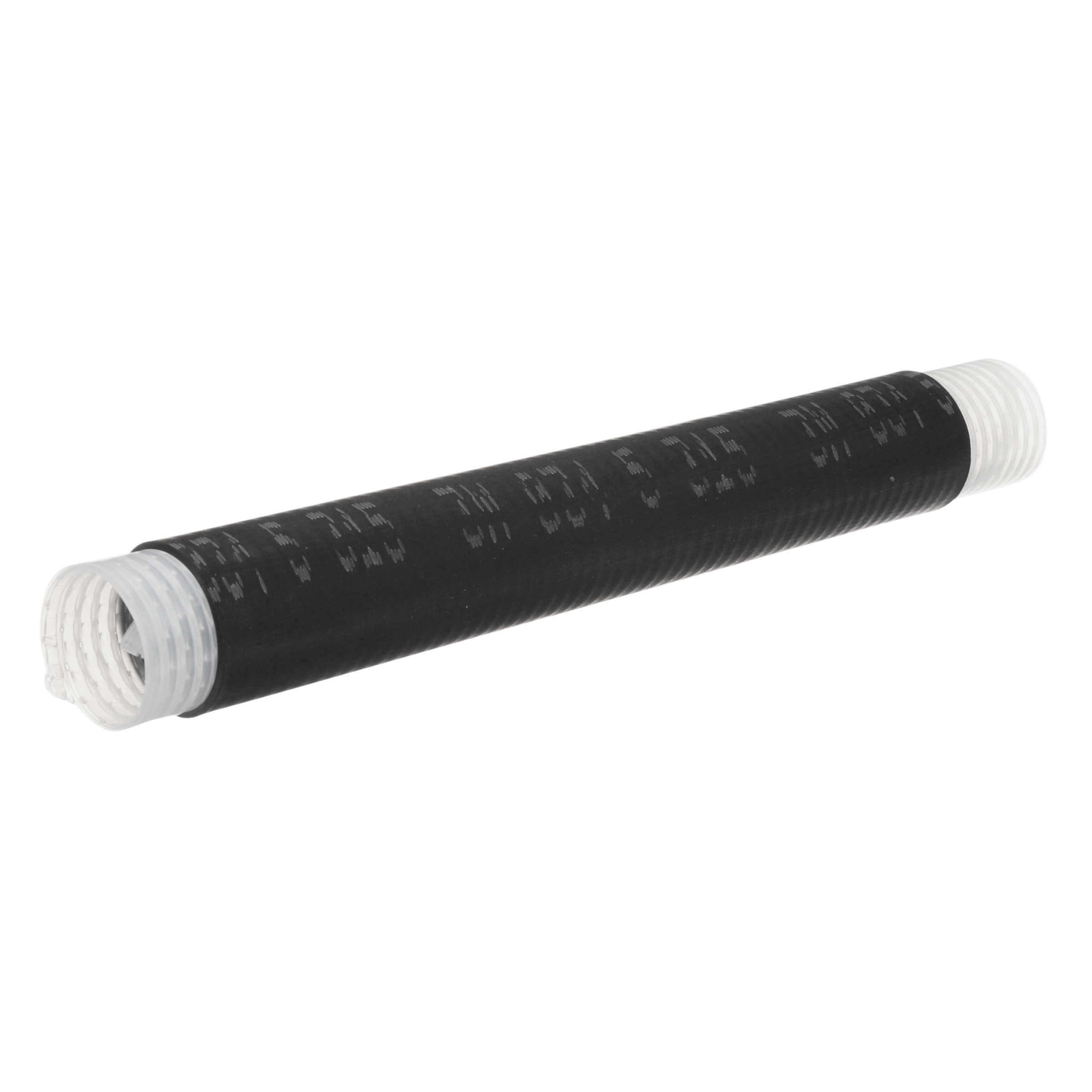

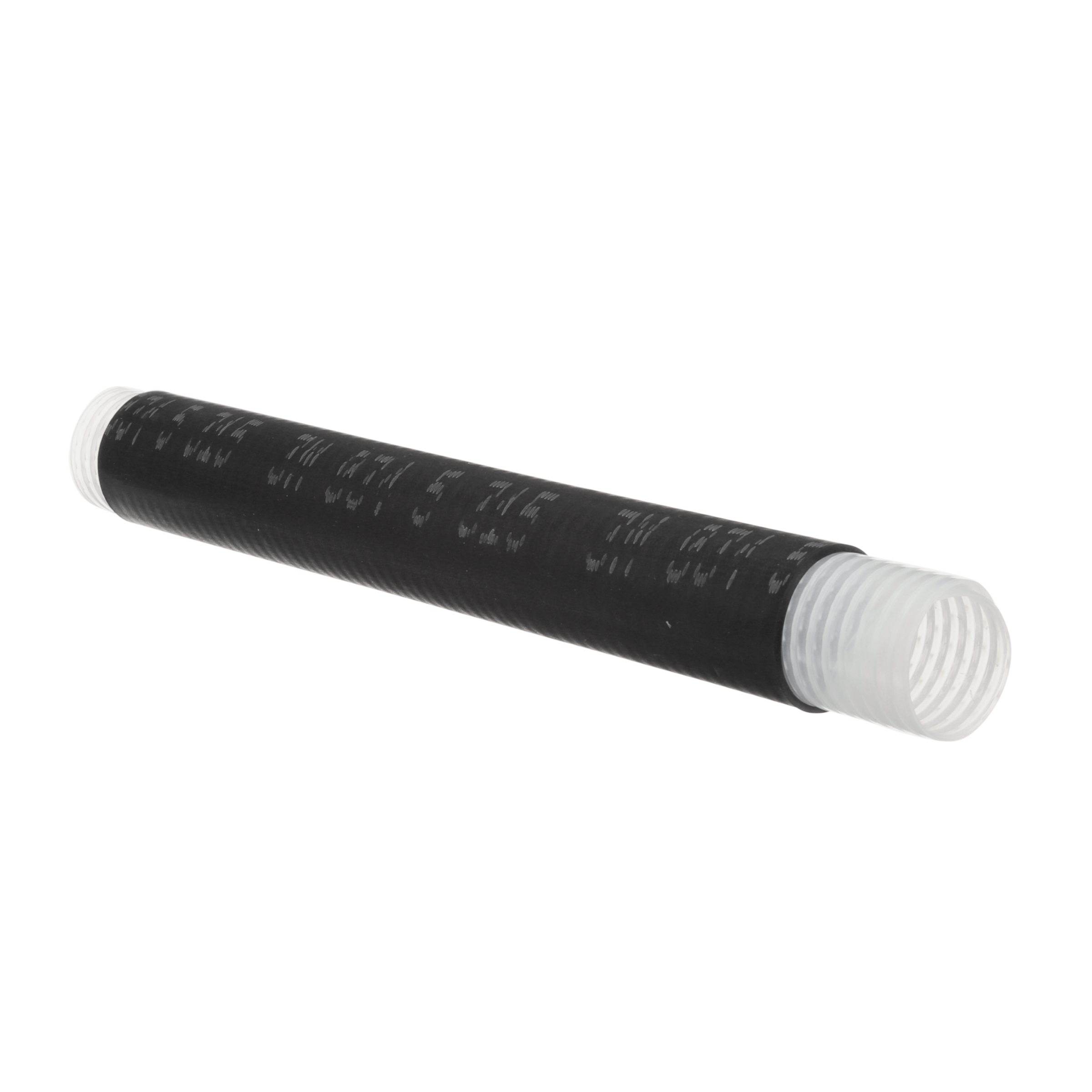

3M™ Cold Shrink Insulators are open-ended, tubular, EPDM rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal.

Technical Information

Applications
For Power Cables
Cable Type
Non-Shieled, Solid Dielectric Power Cable
Conductor Material
Aluminum,Copper
Conductor Size
2/0 AWG, 250 kcmil, 3/0 AWG, 4/0 AWG
Material
EPDM Rubber
Max Operating Temperature
194 degrees F
Number of Conductors
1
Shielding Type
Non-shielded,Tape Shield,UniShield®,Wire Shield
Shrink Ratio
2:1
Splice Type
Cold Shrink
Temperature Rating
0 - 80 degrees C
Type
Thick Wall
Voltage
1 kV
Wall Thickness
4.06 mm

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007344582
Color
Black
GTiN
00054007344582
Product Type
Splice
Product UPC
05400734458
Used With
Aluminum, Copper Conductors

Dimensions

Length
11 in
Overall Length
11 in

Certifications & Compliance

Country of Origin
USA
