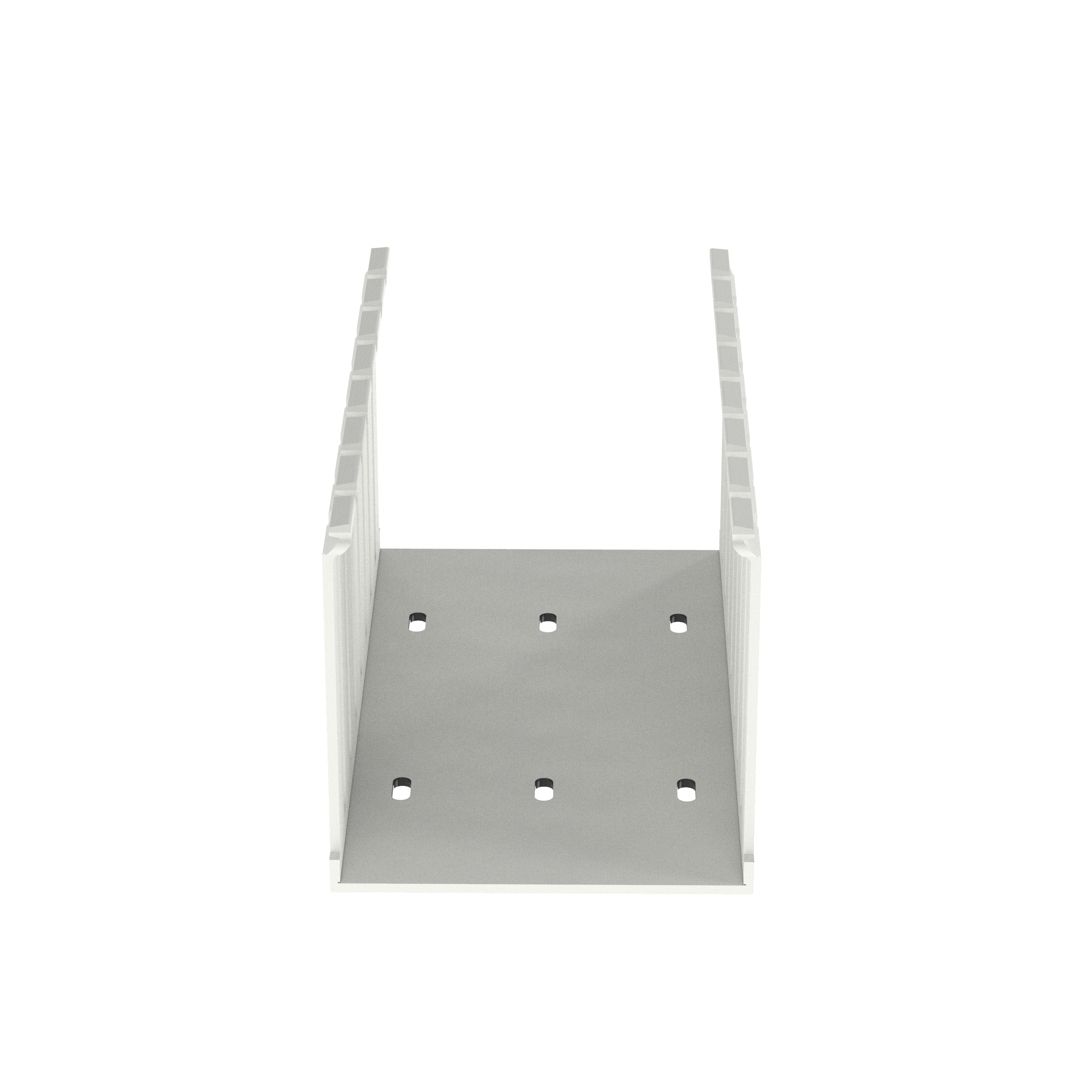

Image thumbnail 1

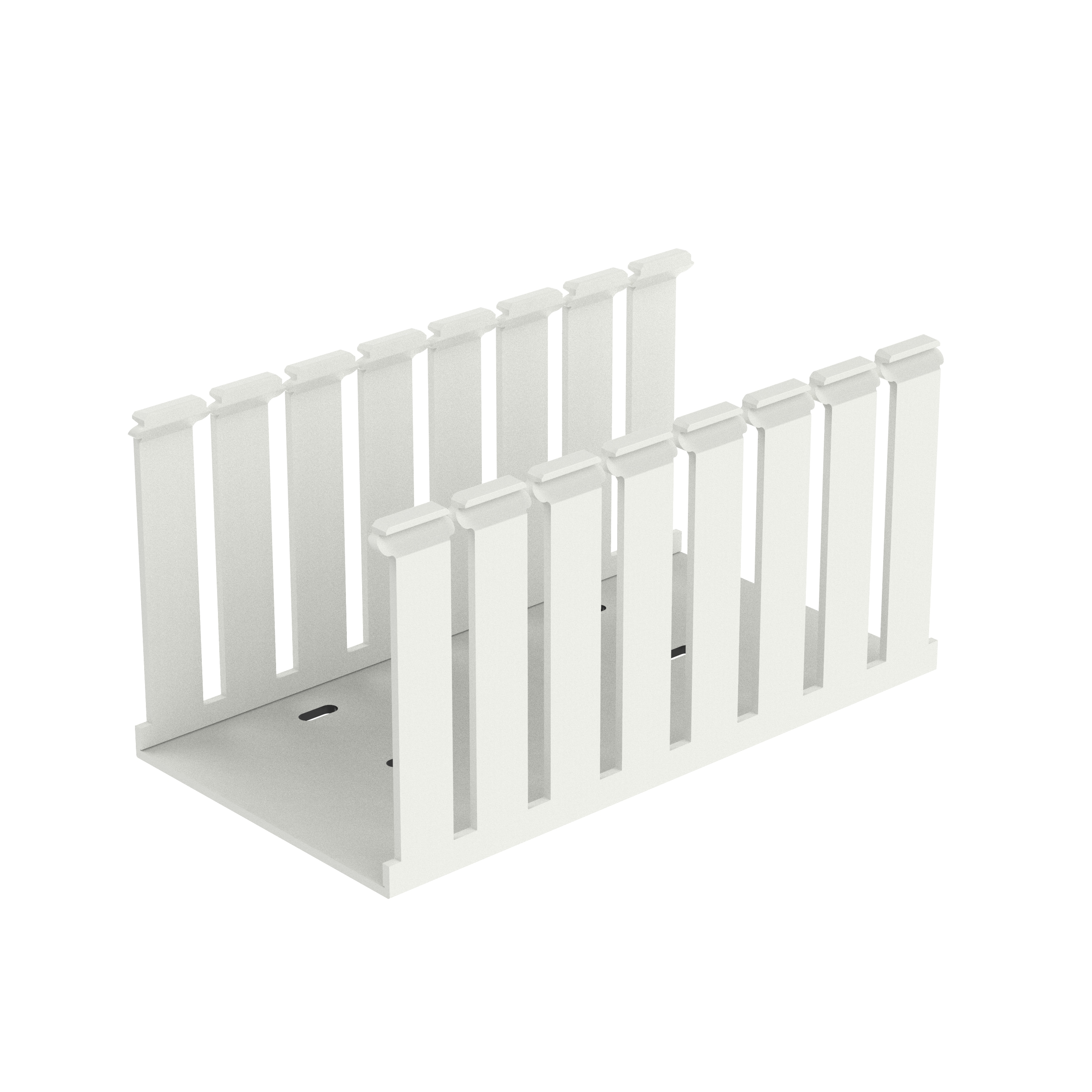

Image thumbnail 2
Email

Panduct® G4X4WH6 Base Wiring Duct

Manufacturer: Panduit | Catalog # G4X4WH6 | Electrozad South Part # 67040
$15.36 /ft
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The G4X4WH6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. 4.0" x 4.0" (101.6 mm x 101.6 mm) and 6' (1.8 m) long. Cover sold separately. Color White.

Technical Information

Applications
Indoor
Material
Copper,PVC
Mounting Type
Mounting Holes
Size
4.25 x 4.10 IN
TC Connection
Standard Mounting Holes
Type
Type G

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983546329
Color
White
GTIN
00074983546329
Product UPC
07498354632

Dimensions

Height
4.1 in
Length
1.8 m
Overall Length
6 ft
Width
4.252 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
