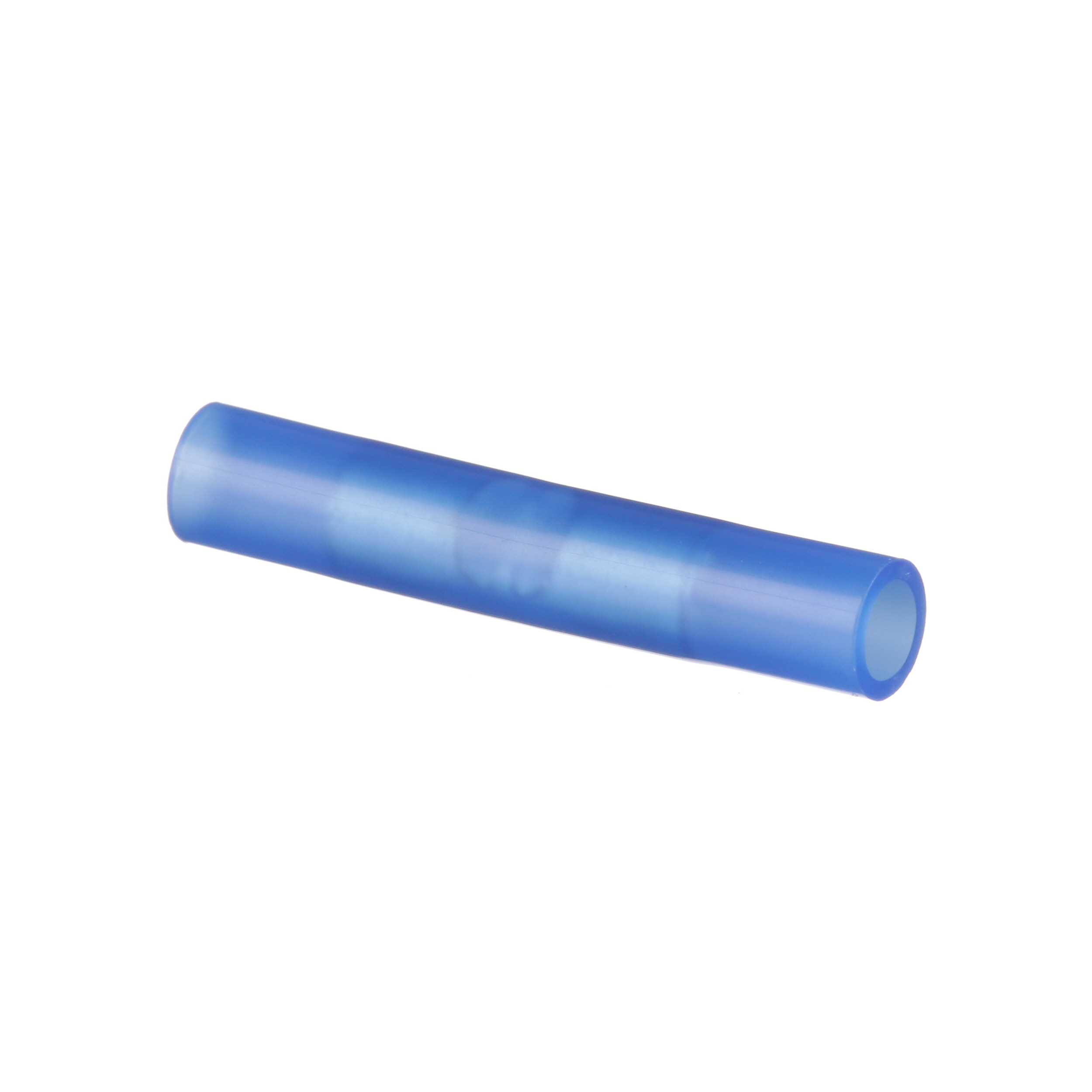

Image thumbnail 1

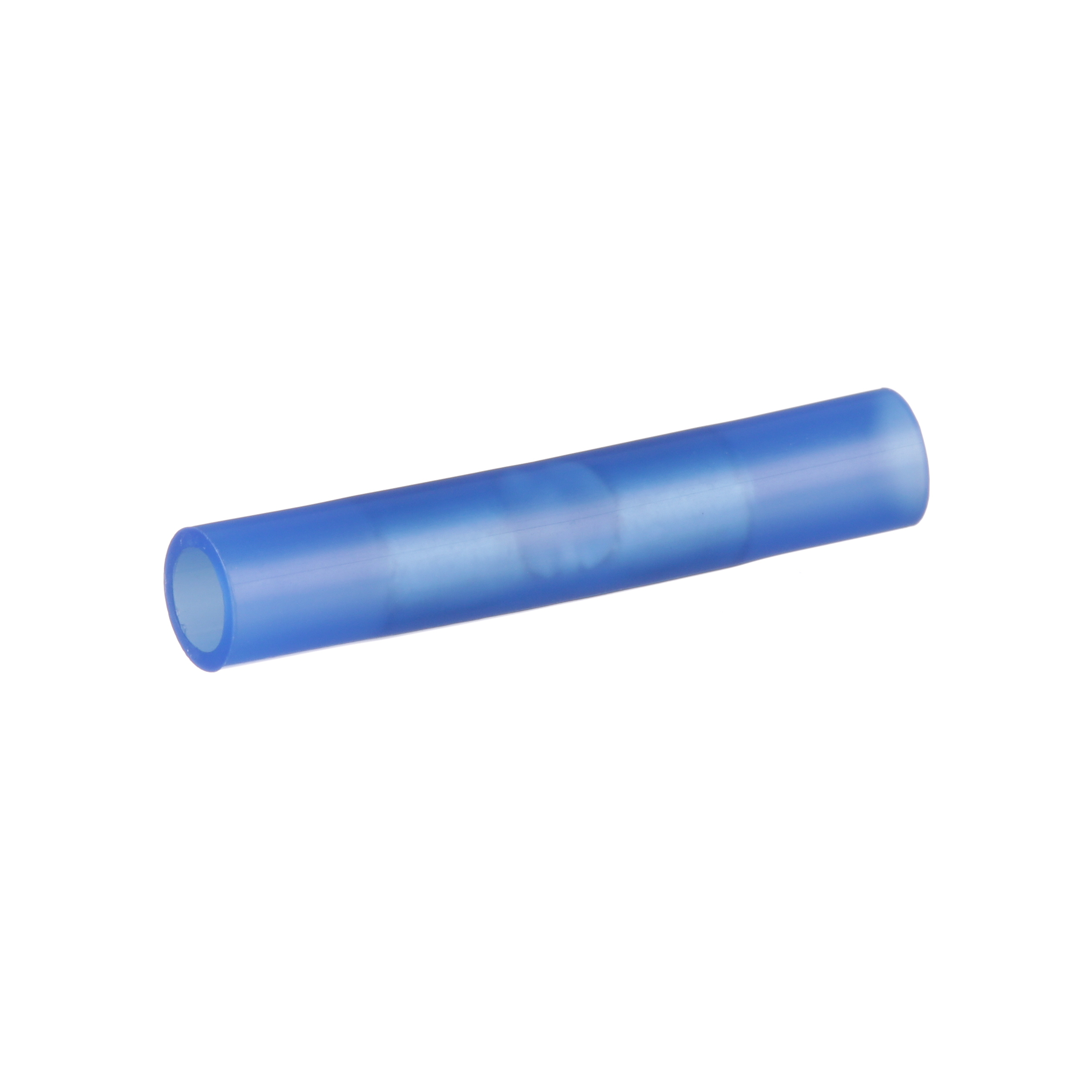

Image thumbnail 2

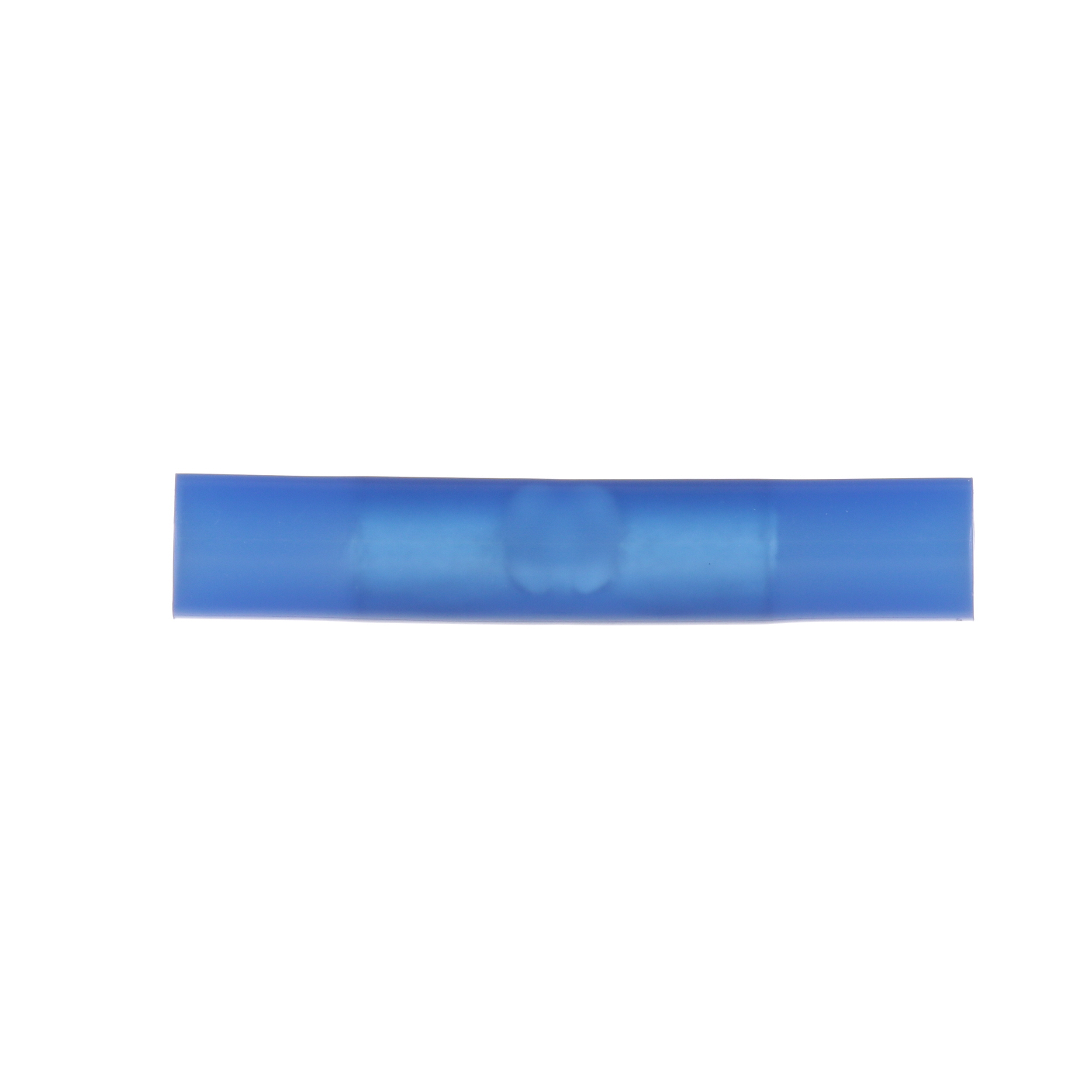

Image thumbnail 3
Email

PANDUIT BSN14-C BUTTSPLICE #16 #14

Manufacturer: Panduit | Catalog # BSN14-C | Electrozad South Part # 67152
$123.03 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
500 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure
Butt splice, Nylon Insulated, type-BSN. Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal wire stop assures proper length of insertion into terminal barrel.

Technical Information

Barrel Length
1.15 in
Barrel Type
Brazed Seam
Conductor Size
16-14 AWG
Connection Type
Percussion Connector
Contact Material
Copper
Material
Copper
Size
16 - 14
Standard
ANSI C-73
TC Connection
Standard
Temperature Rating
221 degrees F
Type
Long Sleeve, Standard

Packaging

Package Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983830022
Color
Blue
Finish
Tin Plated
GTIN
00074983830022
Product UPC
07498383002

Dimensions

Overall Length
1.15 in
Width
0.2 in

Certifications & Compliance

Country of Origin
Mexico
