PSL-BV2 Ball Valve Lockout, Polypropylene, Red, 7.5"x3.7", PK1 | Electrozad South

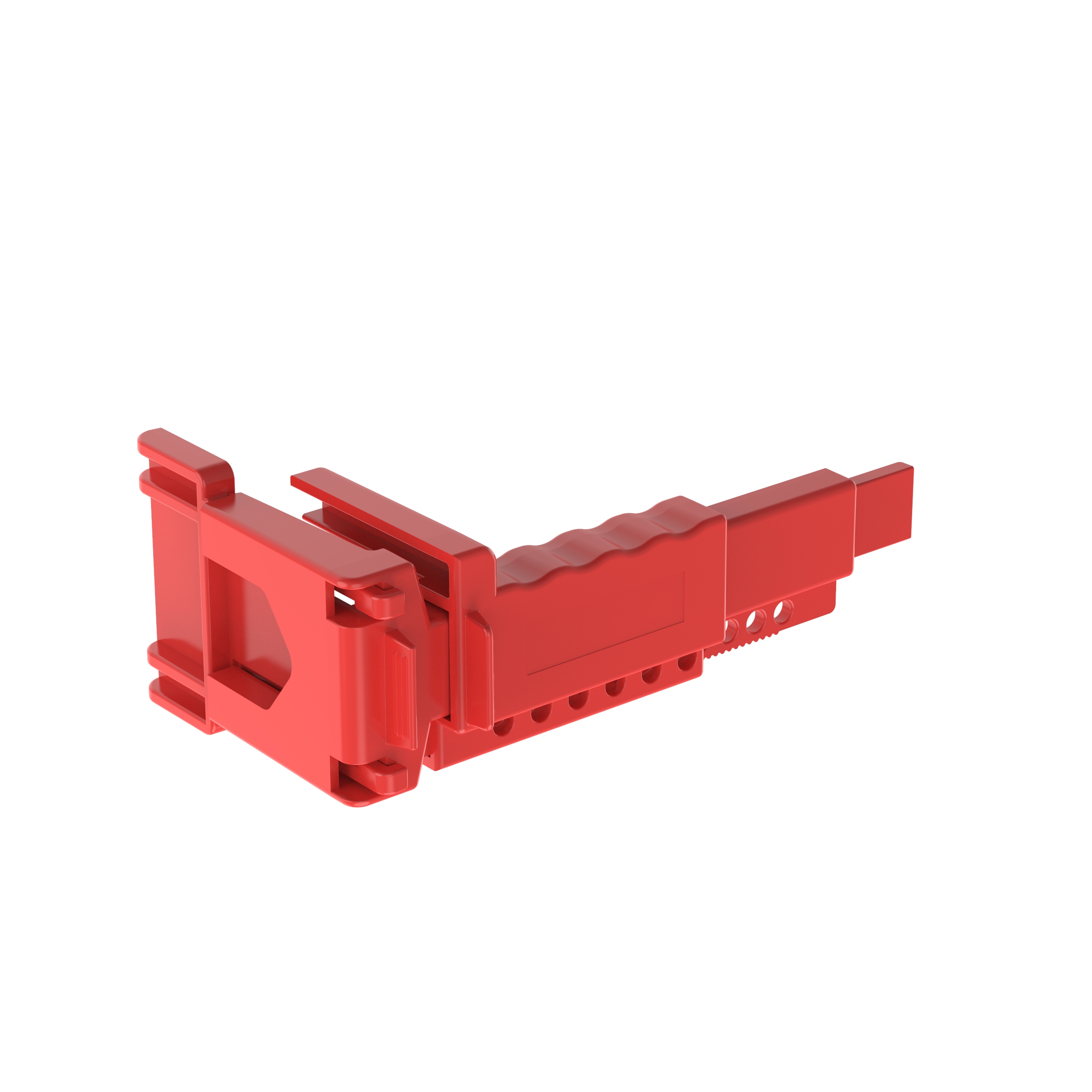

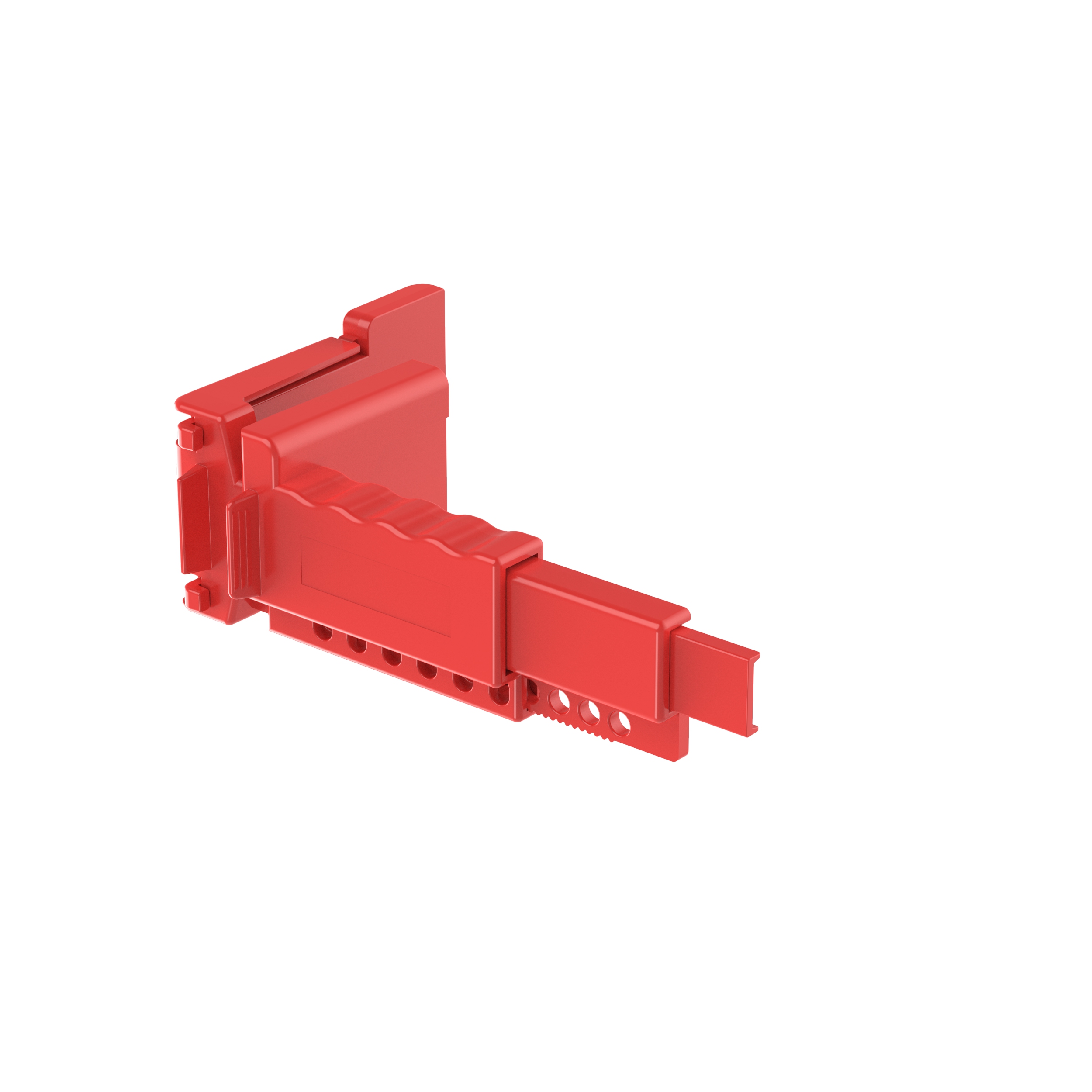

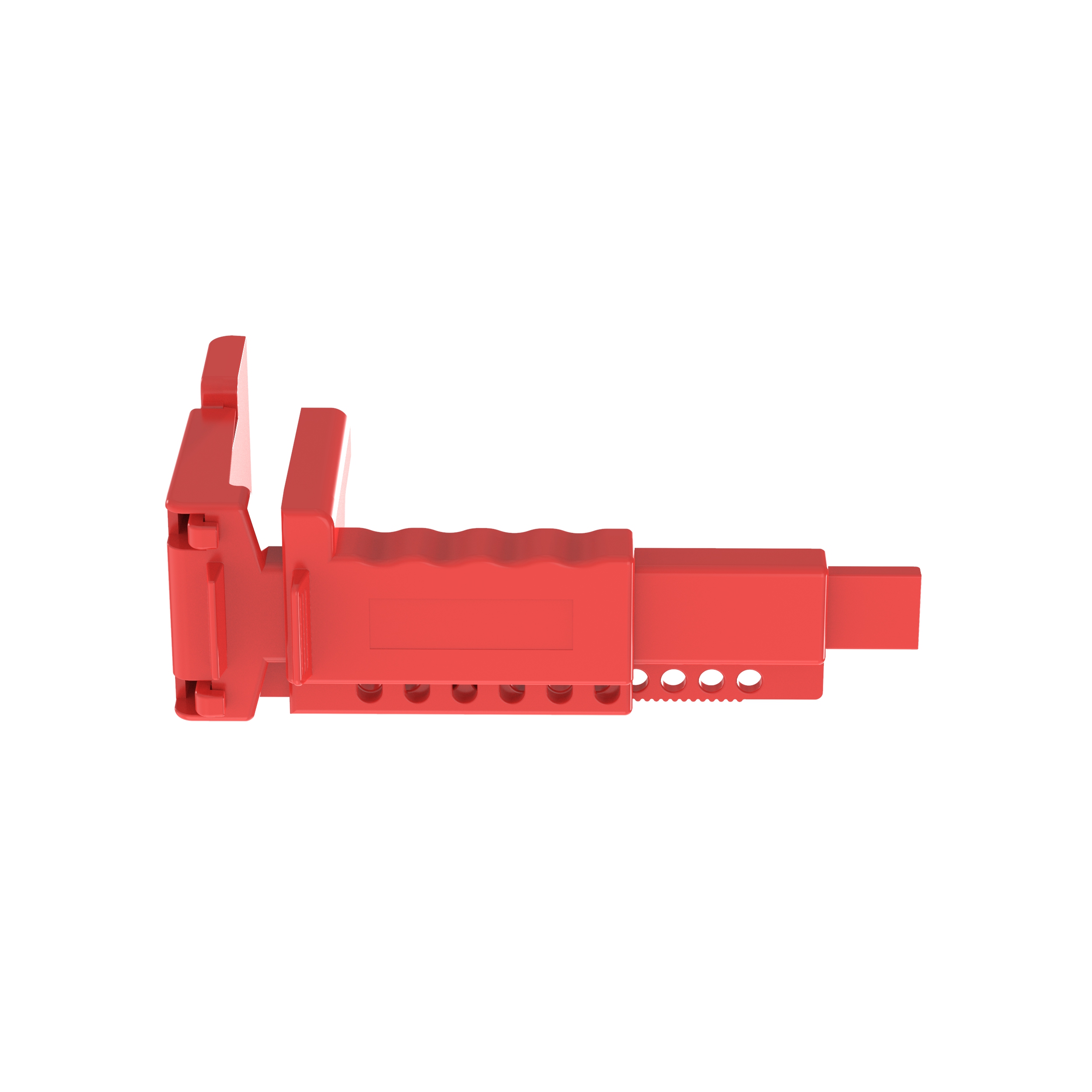

Product image for PSL-BV2 Ball Valve Lockout, Polypropylene, Red, 7.5"x3.7", PK1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

Email

PSL-BV2 Ball Valve Lockout, Polypropylene, Red, 7.5"x3.7", PK1

Manufacturer: Panduit | Catalog # PSL-BV2 | Electrozad South Part # 67444

$73.27 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
The PSL-BV2 Ball Valve Lockout is constructed of rugged polypropylene providing strength, durability, and added security. The Ball Valves regulating hydraulic, pneumatic, and chemical energy can be locked out quickly and easily. The valve accommodates valve diameters ranging from 1.25" (31.8 mm) to 3" (76.20 mm) with a maximum handle length of 7.5" (190.5 mm). Polypropylene. 3.7" x 7.5" (94.6 mm x 190.5 mm). Color Red. 1 per package.

Technical Information

Applications
For Ball Valves Regulating Hydraulic, Pneumatic and Chemical Energy can be Locked Out Quickly and Easily
Material
Polypropylene
Max Operating Temperature
101 degrees C
Minimum Operating Temperature
-40 degrees C
Temperature Rating
-40 to 101 degrees C
Type
Swivel Ball

Packaging

Package Qty
1
Standard Packaging Qty
1/Pack

Manufacturer Information

Brand
Panduit

General Product Info

12-Digit UPC
074983342242
Color
Red
GTIN
00074983342242
Product UPC
07498334224
Used With
1/4 - 3 in Valve Pipe

Dimensions

Depth
7-1/2 in
Overall Length
7.5 in
Width
3.7 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
