Plug straight 2P3W 250V 20A black-white | Electrozad South
Product image for Plug straight 2P3W 250V 20A black-white
Image thumbnail 0
Image thumbnail 1
Email

Plug straight 2P3W 250V 20A black-white

Manufacturer: Leviton Manufacturing | Catalog # 5366-C | Electrozad South Part # 67649
$32.94 /ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Levitons line of straight blade Black White® industrial grade plug features rugged construction resists impact, sunlight, chemicals and rough use. Triple-wipe, heavy duty power contacts set in deep pockets to resist damage. Captive, color coded brass #8 terminal screws.

Technical Information

Amperage
20 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18 - 10 AWG
Contact Material
Solid Brass
Device Type
Straight Blade Plug
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Material
Super Tough Nylon (Body)
Mounting Type
Cable

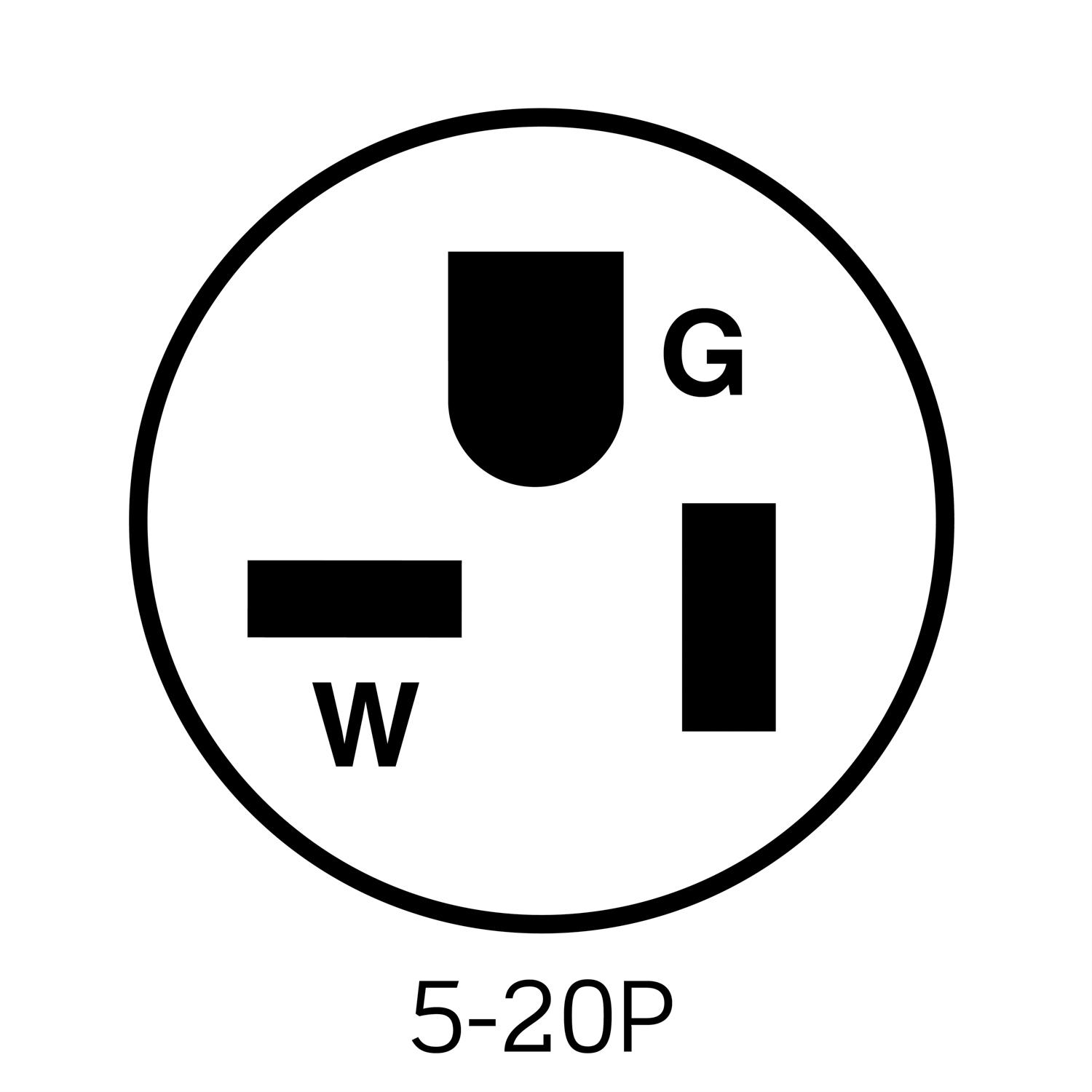

NEMA
5-20P
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
1.53 Dia x 1.98 H IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Torque
10 lb-in
Type
Industrial Grade
Voltage
125 V
Wire Count
3
Wire Size
18 - 10 AWG 0.25 - 0.685 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477795873
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477795873
Product UPC
07847779587

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
