Plug ind grade str nylon 3P4W 250V 60A blk

Manufacturer: Leviton Manufacturing | Catalog # 8462-P | Electrozad South Part # 67827
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Industrial grade straight blade plug made of super tough nylon. Solid brass blades/contacts and steel, zinc plated assembly screws. Leviton's heavy duty industrial power plugs offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty.

Technical Information

Amperage
60 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
10 - 4 AWG
Device Type
Straight Blade Plug
Dielectric
2000 V
Grounding
Grounding
Horsepower
10 hp
Material
Super Tough Nylon (Body)
Mounting Type
Cable
NEMA

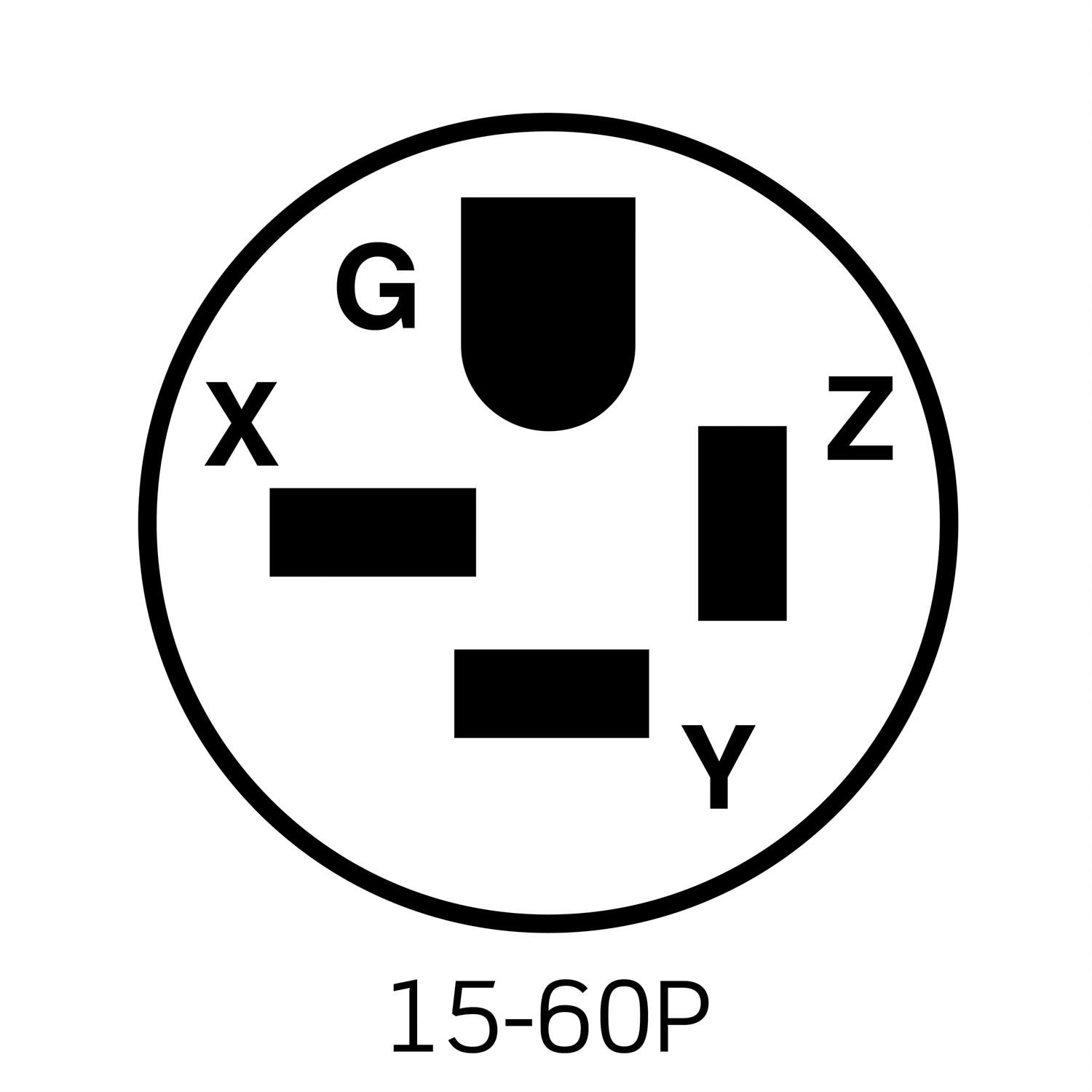

15-60P
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
4.37 H x 2.76 W x 1.89 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Torque
16 lb-in
Type
Angled
Voltage
250 V
Wire Count
4
Wire Size
10 - 4 AWG; 0.625 - 1.375 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477810002
Color
Black,Orange,White
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477810002
Product UPC
07847781000

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
