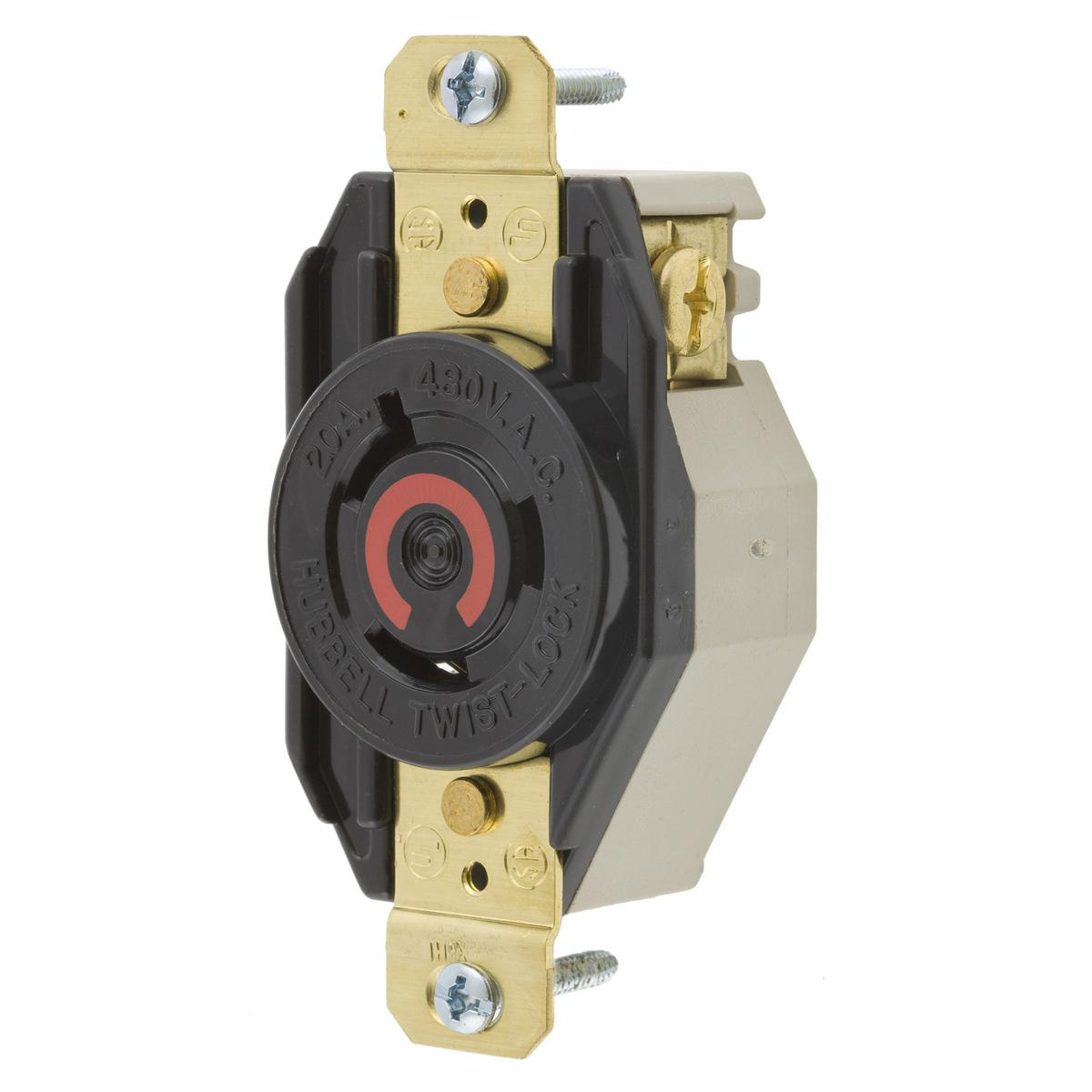

HUB HBL2340 RECEPT TL 20A 2P3W SINGLE FLUSH 1R B&S WIRED 480V NEMA L8-20R BLACK NYLON FACE

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2340 | Electrozad South Part # 67930
$40.15 /ea
pc
Log in or register to view your price, purchase history, and more!
46 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Hubbell TWIST-LOCK cable plugs and connectors are made of white nylon locking blade insert, black housing and 2 pieces screw cable clamp. Flanged inlet and outlet are made of white one-piece nylon. Box single/duplex receptacle are made of black or orange (isolated) thermoplastic. Full line of accessories like stainless steel and weatherproof cover plate. They follow NEMA and NON-NEMA lock coding version 1-2-3-4 pole, 20-30-50 amp, 125-250-277-347-480-600 volts.

Technical Information

Amperage
20 A
Applications
Heavy Duty Industrial
Base Material
Plastic,RTP
Conductor Size
14-8 AWG
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
L8-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Heavy Duty
Voltage
480 V
Wattage
9600 W
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585235691
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585235691
Product UPC
78358523569
Weight
0.25 lb

Dimensions

Height
1.23 in
Length
3.28 in
Width
1.7 in

Certifications & Compliance

Country of Origin
USA
