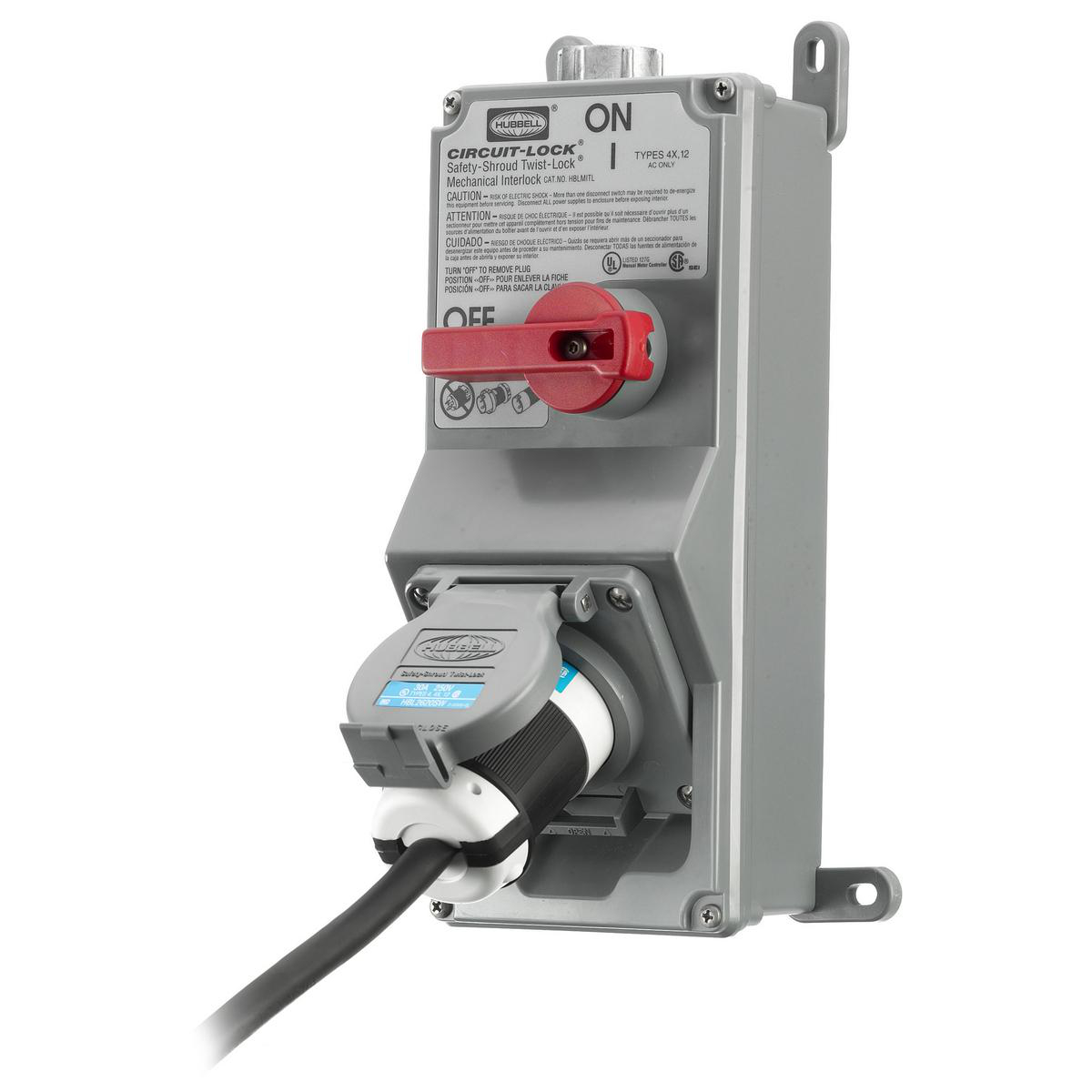

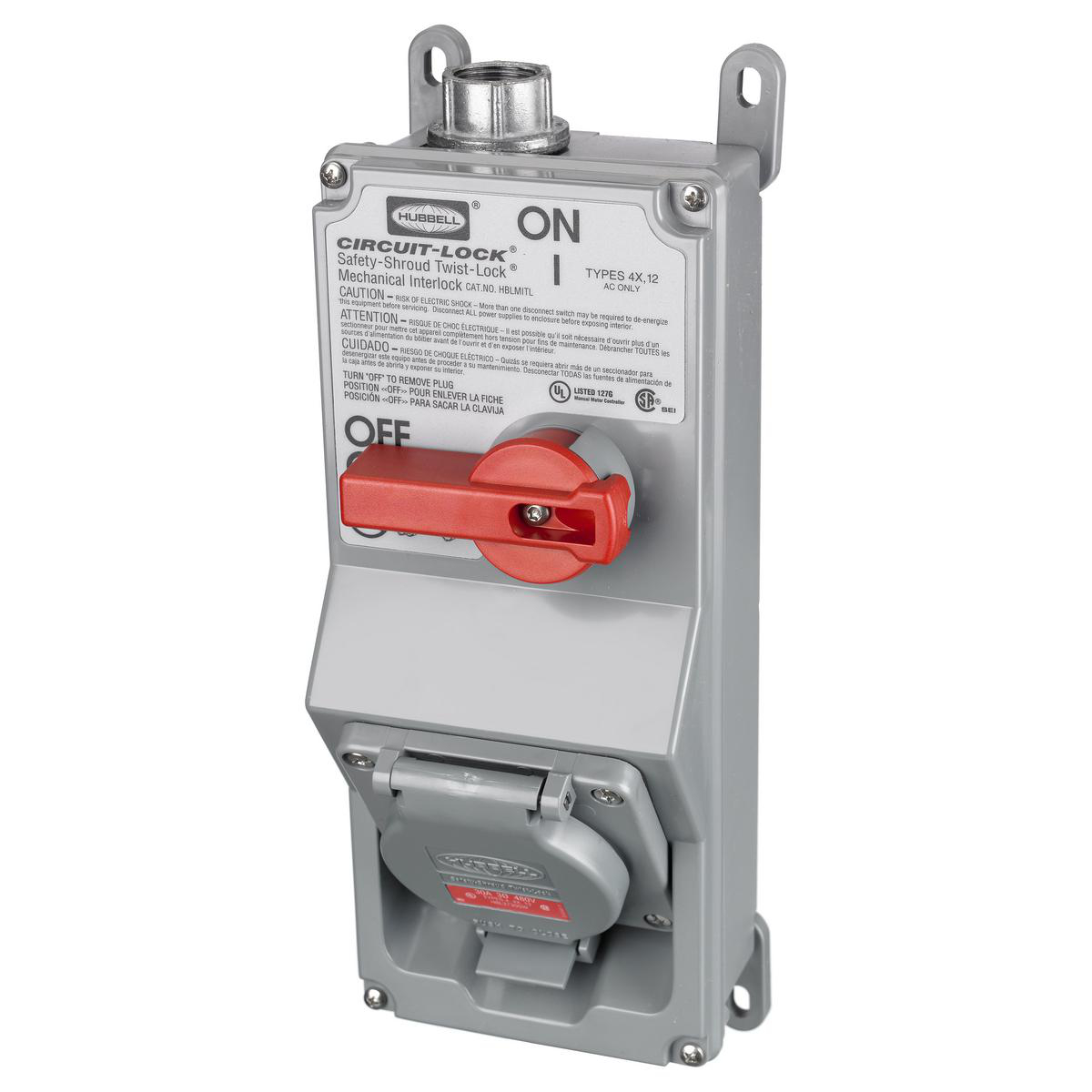

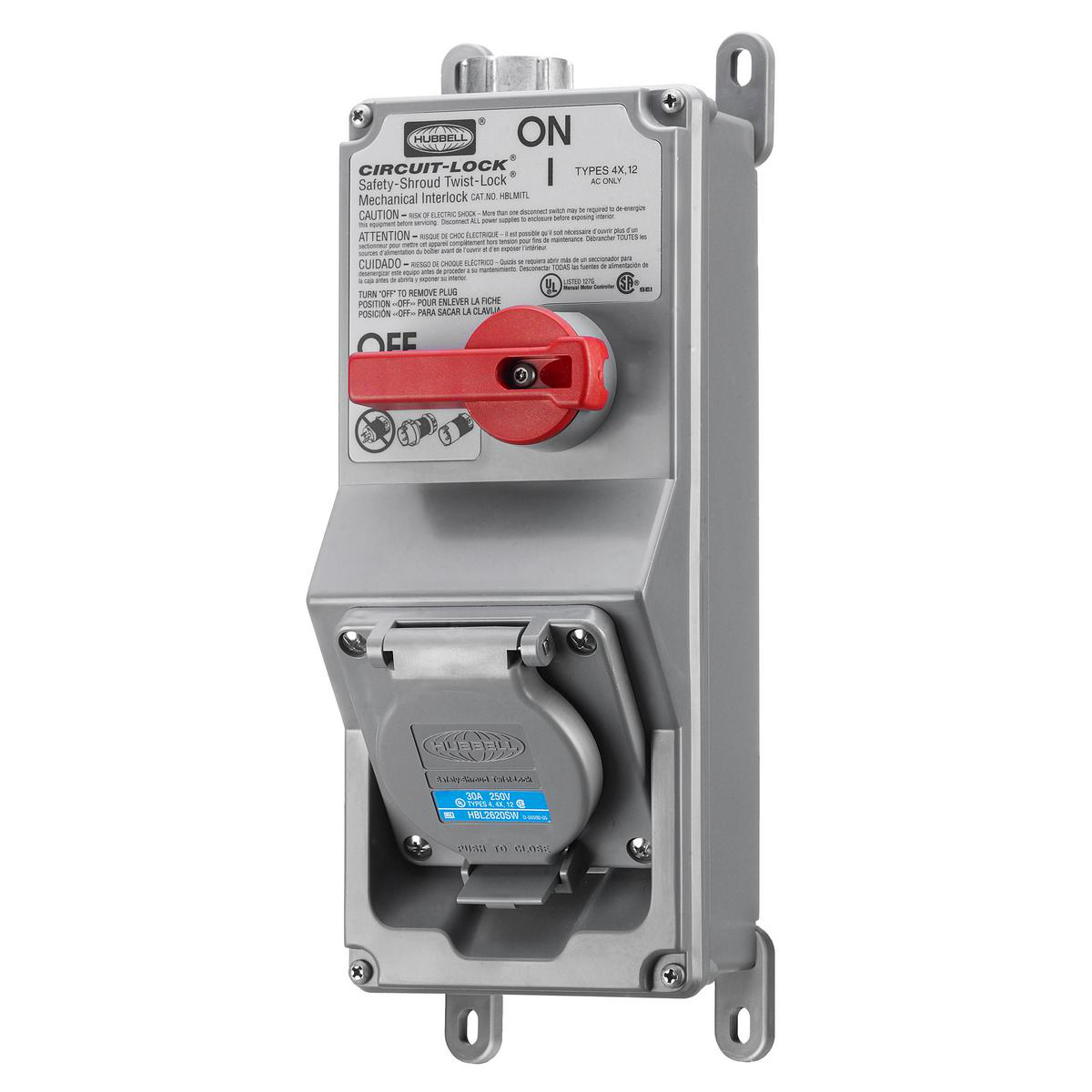

HUB HBLMITL ENCLOSURE 20A 30A INTERLOCK

Manufacturer: Hubbell Wiring Devices | Catalog # HBLMITL | Electrozad South Part # 68143
$719.99 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual
TWIST-LOCK® mechanical interlock accommodates 20 A or 30 A watertight safety shroud receptacles.

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 A
Applications
Extra Heavy Duty Industrial Application
Base Material
PBT
Contact Configuration
Two Position
Contact Rating
30 A
Enclosure
Non-Metallic
Enclosure Type
NEMA 4X
Material
Composite
Number of Poles
3 Pole
Operating Cycles
6k
Operating Temperature
Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
Size
11.44 in x 4.88 in x 4.19 in
Standard
4X,CSA,TYPE 12K Enclosure Rating,TYPE 4,UL Standard
Style
Standard
Type
3-Pole
Wattage
18,000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585176802
Color
Gray
Environmental Conditions
NEMA 4X
GTIN
00783585176802
Product UPC
78358517680
Weight
3.65 lb

Dimensions

Height
4.19 in
Length
11.44 in
Width
4.88 in

Certifications & Compliance

Country of Origin
Poland
