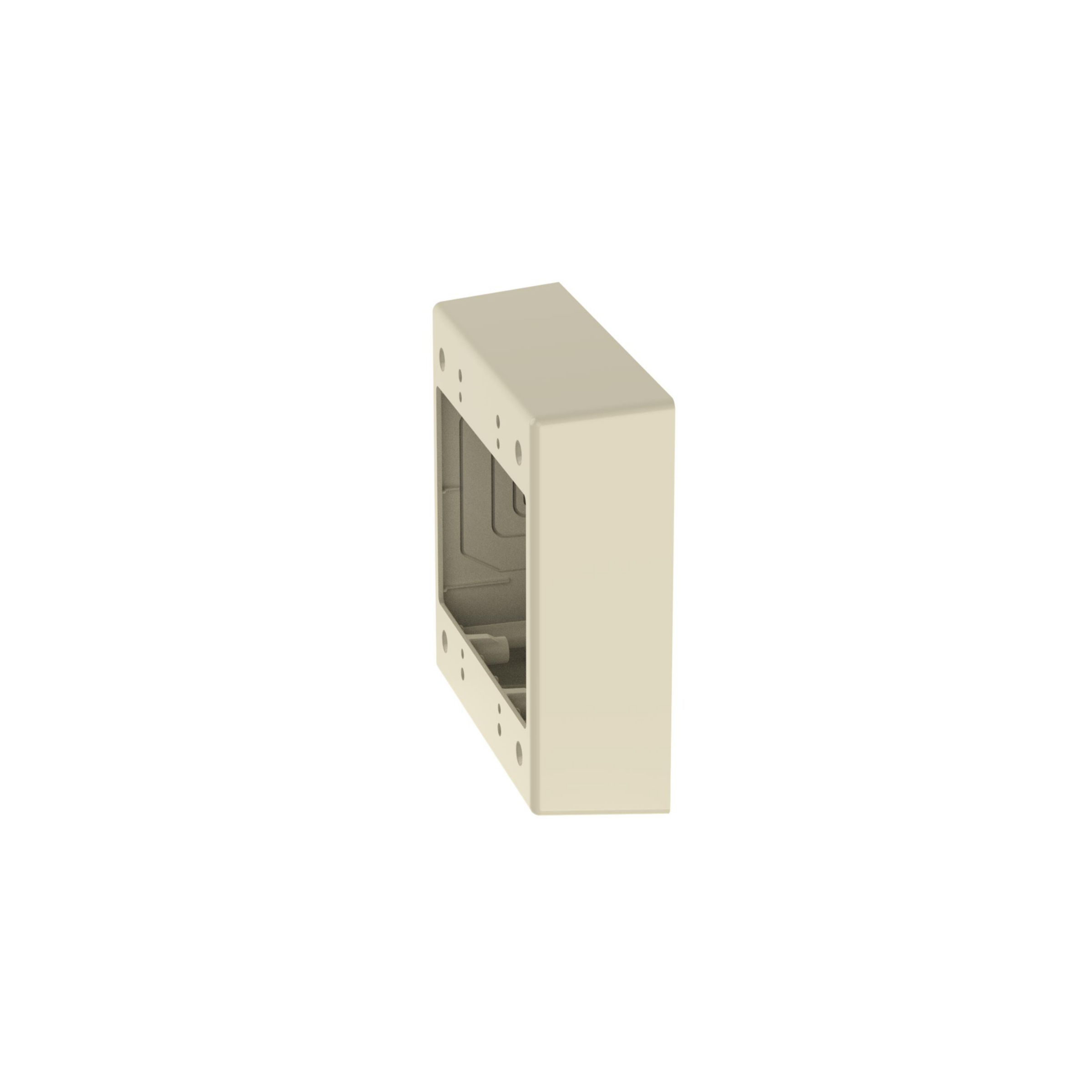

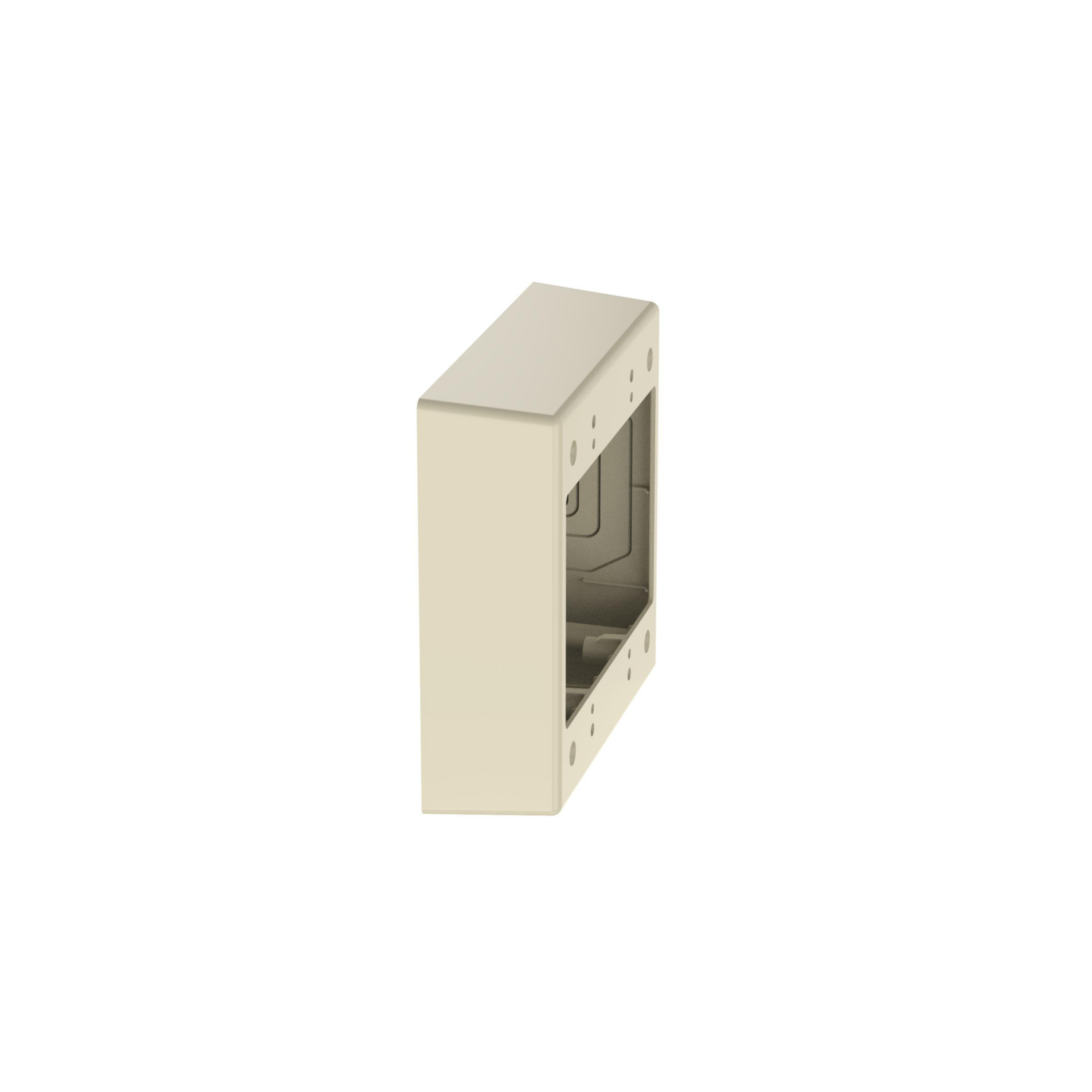

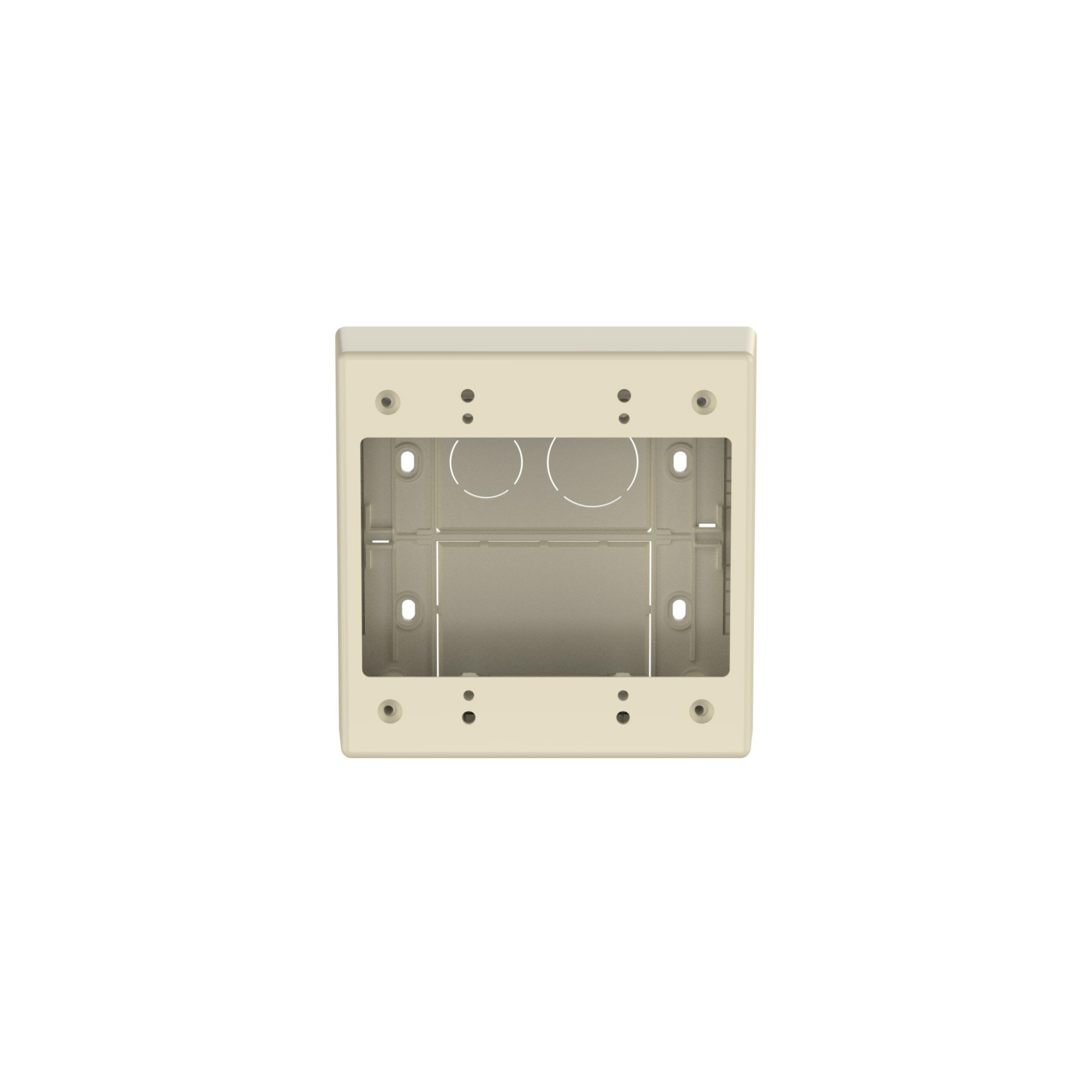

Product image for PANDUIT JBP2E-I BOX JUNCTION JB 2GANG SHALLOW
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT JBP2E-I BOX JUNCTION JB 2GANG SHALLOW

Manufacturer: Panduit | Catalog # JBP2EI | Electrozad South Part # 68246
$18.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual
The Double gang two-piece screw together outlet box accepts Pan-Way® Screw-On Faceplates or any NEMA standard double gang faceplates. For use with Pan-Way® LD profile raceway. 5.05"L x 5.05"W x 1.62"H (128.2mm x 128.2mm x 41.1mm). Breakouts for 1/2" or 3/4" diameter conduit, Electric Ivory.

Technical Information

Applications
Non-Locking Blade Plugs, 1-3/8 in Device Opening
Cover Type
NA
Material
PVC
Number of Gangs
2
Standard
CSA,RU Listed,RoHS
Type
Power Rated

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983702718
Color
Electric Ivory
GTIN
00074983702718
Product UPC
07498370271
UNSPSC
39131711

Dimensions

Height
1.62 in
Length
128.3 mm
Overall Length
5.05 in
Width
5.051 in

Certifications & Compliance

Country of Origin
USA
