LEVITON 2320 RECEPTACLE 20A 2P3W 250V SINGLE FLUSH TWISTLOCK

Manufacturer: Leviton Manufacturing | Catalog # 2320 | Electrozad South Part # 68330
$35.97 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

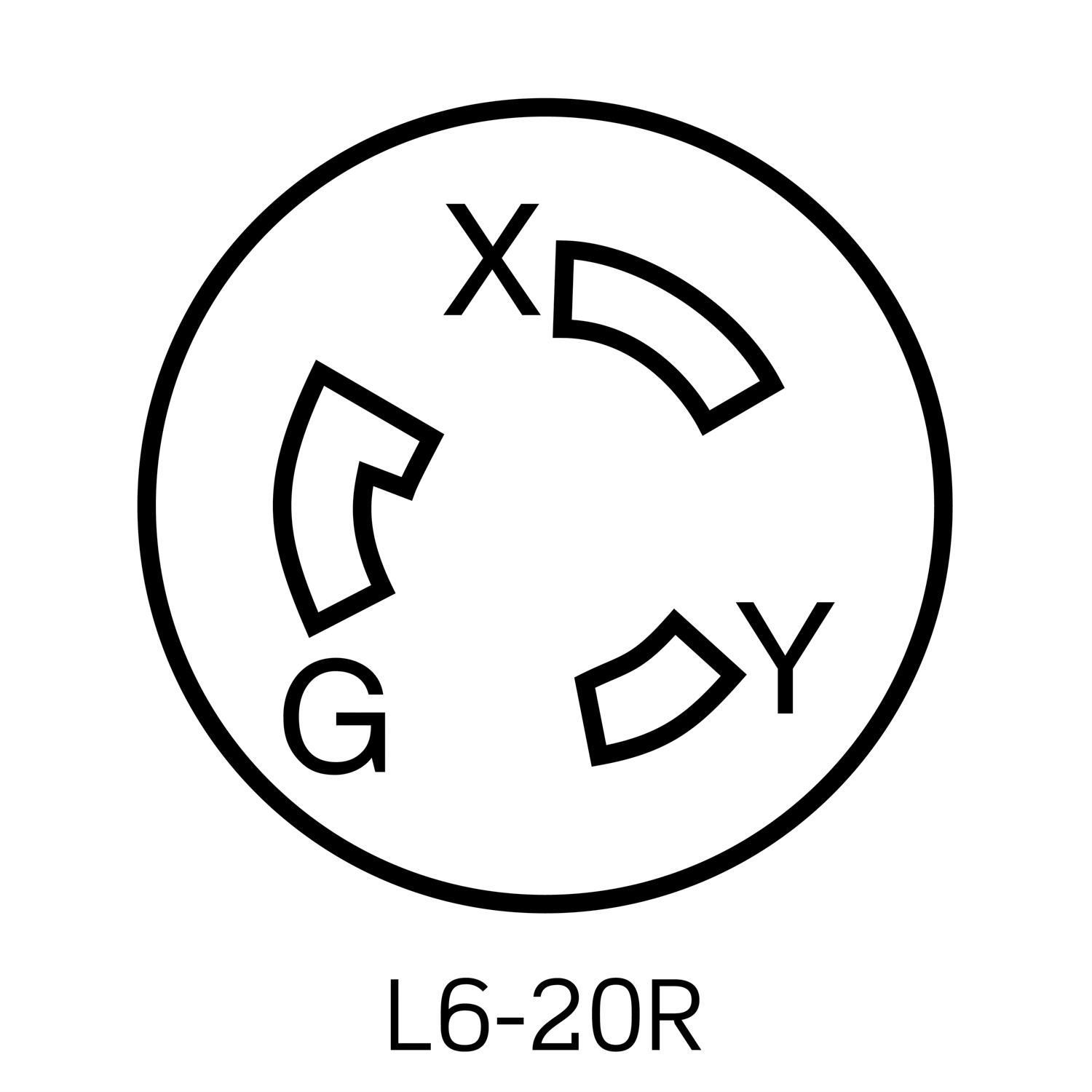

20 Amp, 250 Volt, NEMA L6-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK

Technical Information

Amperage
20 A
Applications
Commercial
Base Material
Valox,Valox
Body Material
Nylon
Conductor Size
14-8 AWG
Connection Type
Back and Side Wire
Cover Material
Valox
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Ultramid
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
2 hp
Material
PBT
Mounting Type
Box, Recessed/Flush
NEMA
L6-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Flush Mount Locking Receptacle
Voltage
250 V
Wire Count
3
Wire Size
14 - 8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477801208
Color
Black
Environmental Conditions
UL 94 Requirements, V0 and V2 Rated Flammability
GTIN
00078477801208
Product UPC
07847780120

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Please Contact Customer Service
CSA
C22.2 No. 42
