LEVITON 1104-CW SWITCH 15A 4WAY WHITE 120V 277VAC 1/2HP @ 120V 2HP @ 240V SIDE WIRED

Manufacturer: Leviton Manufacturing | Catalog # 1104-CW | Electrozad South Part # 68356

$16.27 /ea
ea
Log in or register to view your price, purchase history, and more!
29 available

For Delivery

Not in local stock *
Check another branch

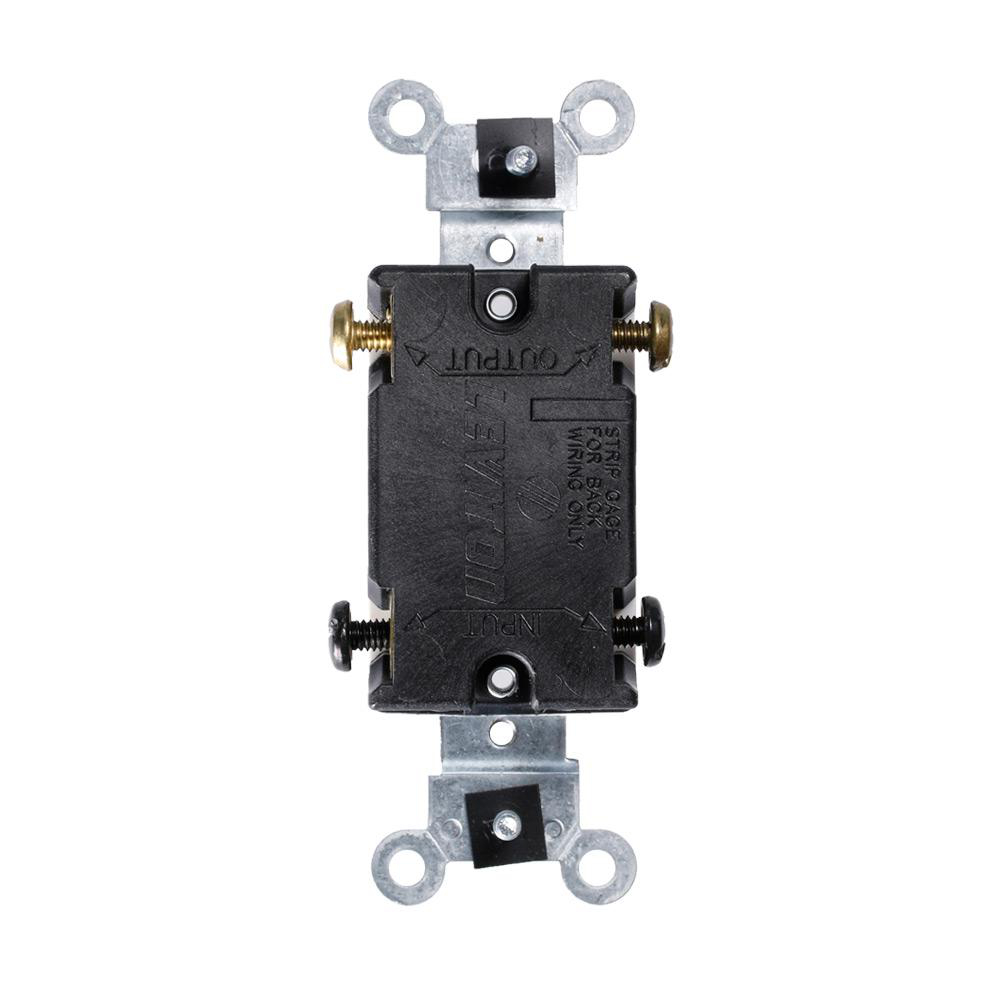

Commercial specification grade switch are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. External clamp-type wiring terminals provides secure connection of solid or stranded wire for back or side wiring. Heavy-duty pre-plated steel mounting strap for maximum strength.

Technical Information

Actuator
Cam
Applications
Commercial
Contact Rating
1/2 (120V);2 (240V to 277V) HP
Grade
Commercial
Material
Thermoplastic with Steel Strap
Operating Cycles
50k
Operating Temperature
-40 to +120 DEG C
Size
46 H x 1.31 W x 0.92 D IN
TC Connection
Side Wired
Type
4-Way Toggle AC Quiet Switch

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Switches

General Product Info

12-Digit UPC
068679115432
Color
White
GTIN
60068679115434
Product UPC
06867911543
