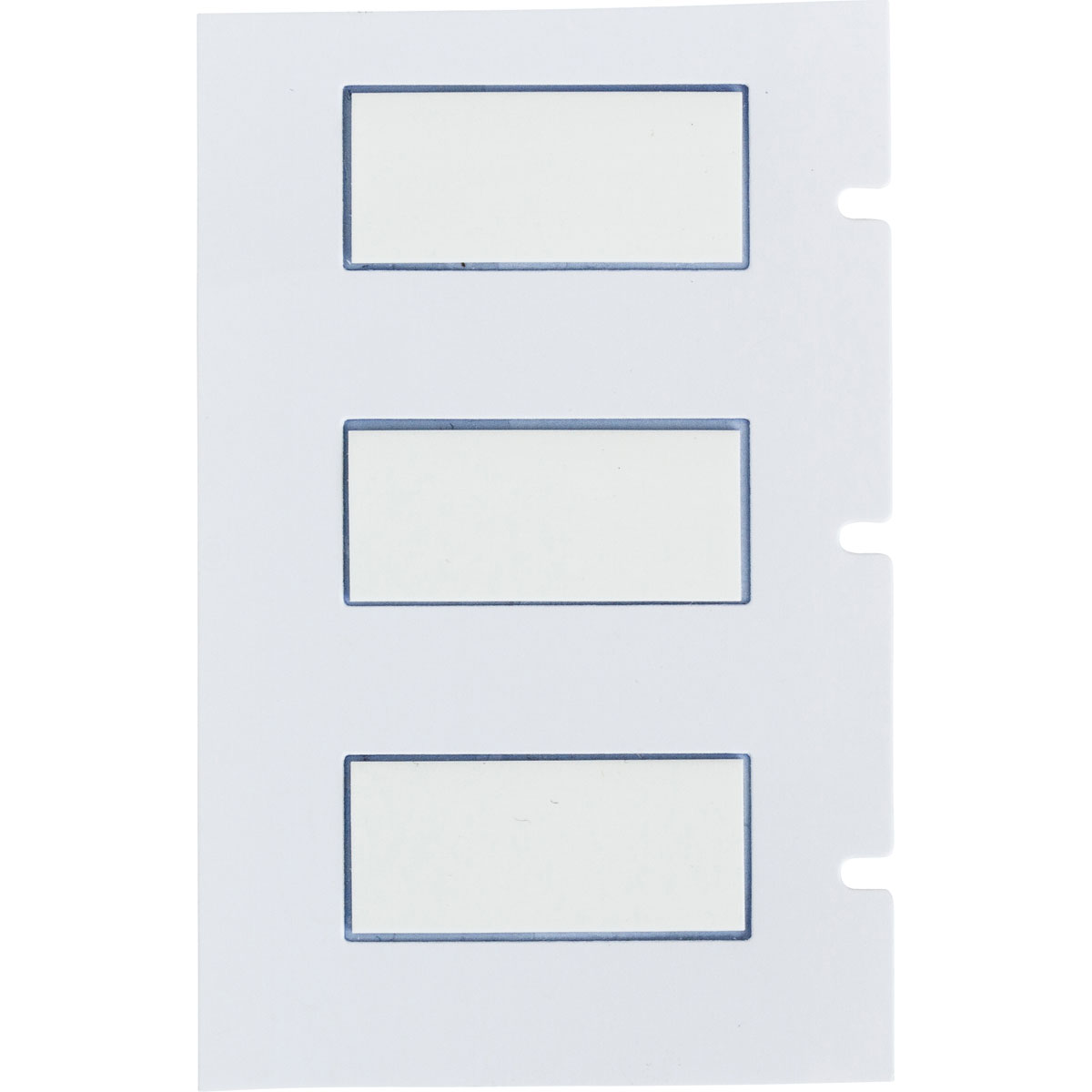

PERMASLEEVE W MARK 16-8 AWG USE W TLS2200/PCLINK

Manufacturer: Brady | Catalog # PSPT-250-1-WT | Electrozad South Part # 69569
$116.30 /rl
rl
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
Permasleeveheat Shrinkable Wire Marker Sleeves For The Tls 2200& Tls-pc Link™TLS 2200® Wire & Cable Materials: B-342 PermaSleeve® Single-Sided Polyolefin Wire Marking Sleeves; 3:1 heat shrinkable sleeve fits snuggly around wire for identification and protection. Fade resistant; and flame retardant. Meets the following material and physical property specifications: SAE-AMS-DTL-23053/5C (Class 1); SAE-AS-81531; MIL-STD-202; RoHS Compliant; UL Recognized; Tested per:ASTM E162, ASTM E662

Technical Information

Applications
For Cable and Wire Marking, Panel Labeling
Cable Size
16-10 AWG
Material
B-342 Heat Shrink Polyolefin
Max Temperature
135 degrees C
Min Temperature
-55 degrees C
Mounting Type
Plug-in
Shrink Ratio
3:1
Temperature Rating
-94 to 267 degrees F
Type
Heat Shrink Tubing
Wire Size
0.094-0.215 in

Manufacturer Information

Brand
Brady
Sub Brand
BMP®71, TLS 2200®, PermaSleeve®

General Product Info

12-Digit UPC
662820184591
Color
White
Finish
Matte
GTIN
00662820184591
Product UPC
66282018459
Used With
BMP 71 Thermal Transfer Label Printer, TLS 2200, TLS-PC LINK Thermal Labeling System

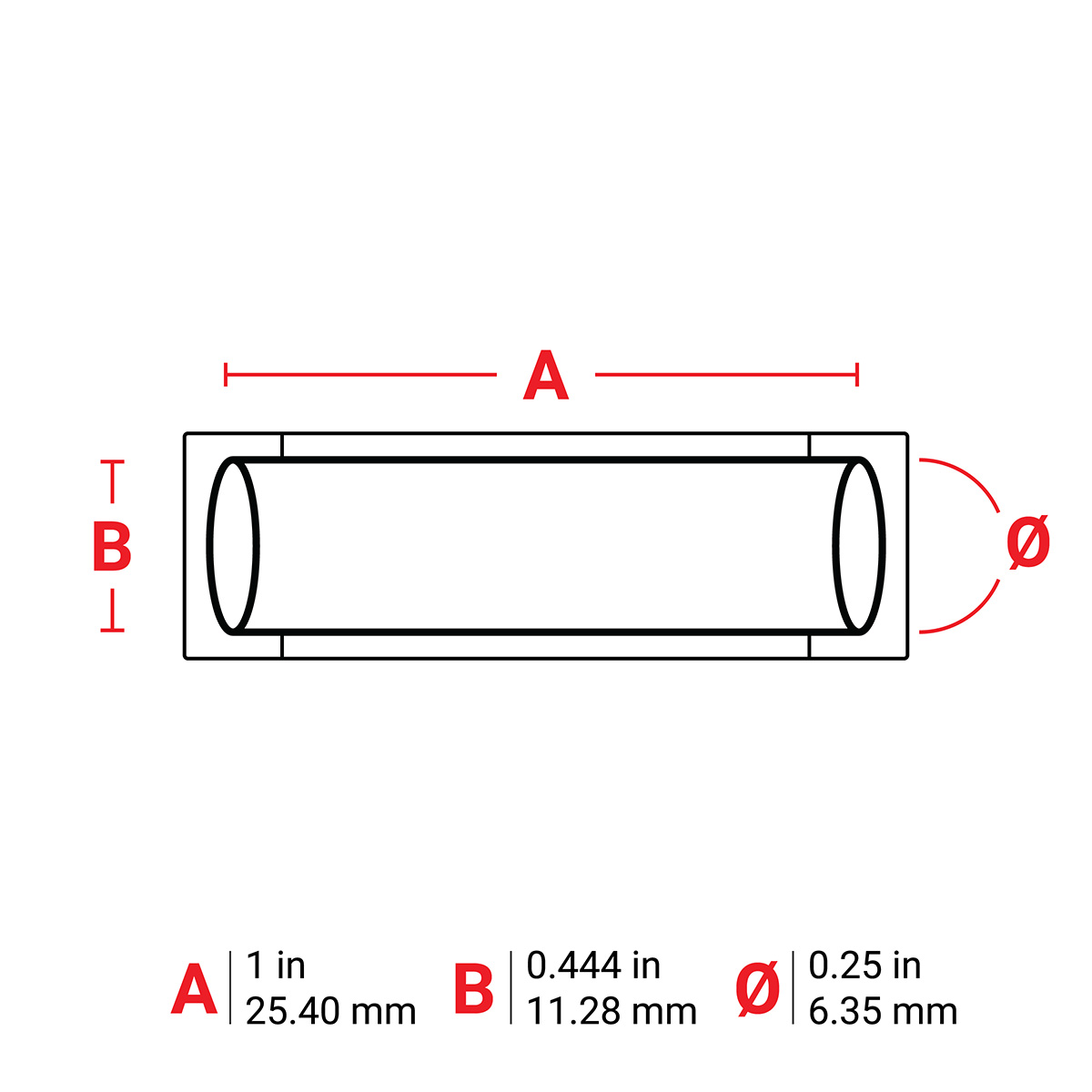

Dimensions

Diameter
0.25 in
Height
0.439 in
Length
0.439 in
Roll Width
1 in
Width
1 in
